Description
Details

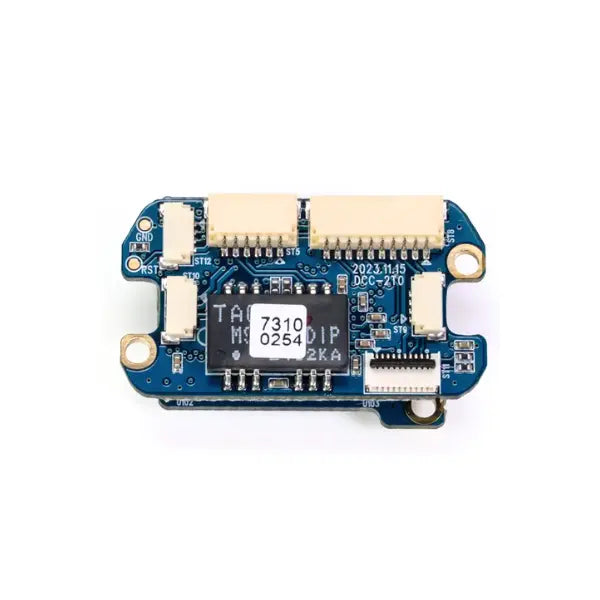

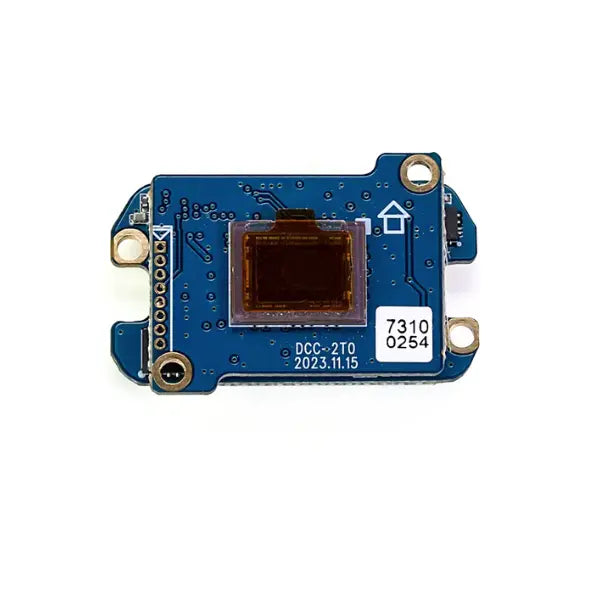

Introducing the most compact IP Board camera in the product line, the Parantek Ultra Compact 1080p IMX327 IP Board Camera captures every detail with unparalleled clarity. With a built-in IP network capability, this camera offers seamless integration into your existing network, facilitating easy setup and flexible deployment options using standard video codecs like H.264 & MJPEG.
Including the powerful Sony Starvis IMX327 1/2.8" CMOS sensor, this IP board camera produces up to Full HD (1920 x 1080p resolution, 2.9μm pixel size, progressive scan) high-quality imaging to not miss any details. There is no lens mount on this model, but let InterTest help you design and manufacture a custom housing and lens mounting feature ideal for your vision application.
Other key features include a minimum illumination of 0.1 lux, wide dynamic range, an easy-to-use webpage viewer, ultra-compact dimensions of 26 x 22 mm W x H, and a lightweight payload of only 4.5 grams without a lens.
Perfect for:
or wherever there is a need for highly detailed imaging with small weight and form factor requirements.
Specifications
|
Base Model |
DCC-2T0 |
|
Active Pixels |
2.12 MP (1937 (H) x 1109 (V) pixels) |
|
Scanning System |
Progressive scan (16:9) |
|
Minimum Illumination |
0.1 lux, 0.05 lux (ICR ON), 0.003 lux (DSS ON) |
|
Video Output |
Up to 30fps @ 1920 x 1080p (1920x1080, 1280x720, 800x600, 704x480, 704x400, 640x480, 640x360, 320x240) |
|
Lens Mount |
N/A (Needs a housing with a lens holder) |
|
White Balance |
AUTO, AUTOext, Preset, Manual |
|
Day/Night Mode |
Auto, Color, B&W |
|
Shutter Speed |
1/25(30)~1/30,000 sec |
|
Network Protocol |
TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HPP, DHCP, FTP, SMTP, DNS, DDNS Onvif 17.06 Compatible |
|
Video Codec |
H.264, MJPEG (Duplex Streaming) |
|
Supply Voltage |
DC5V / POE (option) |
|
Power Consumption |
Less than 1.4 Watts (270mA) |
|
Operating Temperature |
-10°C ~55°C (Humidity: 0% ~ 90% RH) |
|
Dimensions (mm) |
26x22mm & 33x18.7mm (W x H), 2-boards |
|
Weight (g) |
4.5 g (without OLPF) |
Downloads
Ultra Compact 1080p IMX327 IP Board Camera - 26 mm x 22 mm No Lens Mount Specification Sheet
