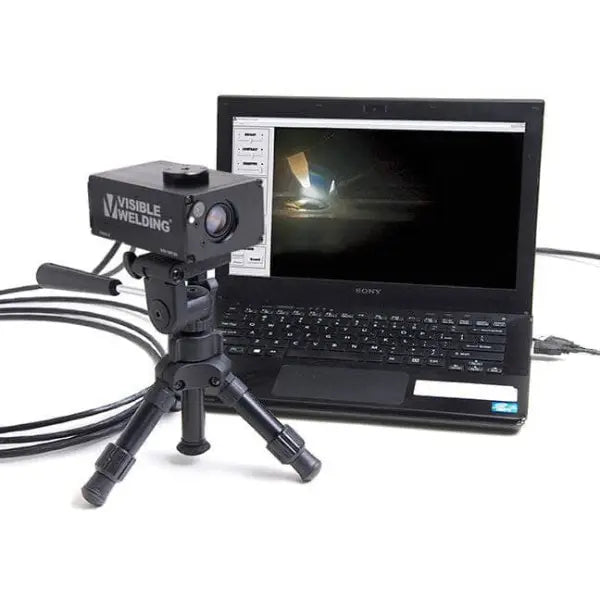

The Visible Welding® WeldWatch® Weld Camera Video System features Ultra Dynamic Range and 10x zoom with USB 3.0 connection. The Visible Welding® WeldWatch® weld camera is specially designed for live viewing of arc welding. In addition, video and stills can be digitally recorded for analysis, email or archiving. With a dynamic-range of over 10,000,000:1, the camera can capture both arc and metal simultaneously without the use of filters.
The Visible Welding® WeldWatch® welding camera is specially designed for live viewing of arc welding. In addition video and stills can be digitally recorded for analysis, email or archiving.
With a dynamic-range of over 10,000,000:1, the camera can capture both arc and metal simultaneously. See the arc, electrode, puddle, joint and surrounding metal before, during and after the welding process.
Ultra-Dynamic-Range (UDR) is the key to effective welding images. A welding arc can be a million times brighter than the metal, far exceeding even high-end industrial and specialty cameras.
The Visible Welding® WeldWatch® weld camera reaches UDR levels by combining the latest High Dynamic Range (HDR) log sensor with powerful digital signal processing. Each complements the other resulting in a quality and dynamic-range greater than either alone.
FEATURES
Camera
- Full Color, resolutions up to 1280x1024
- 140 dB dynamic range (10,000,000:1)
- 30 fps (frames-per-second) at 1280x480
- Built-in Lens with 10x optical zoom
- Filter-less allowing arc in any location in field of view
Factory ready
- Air-cooled case – operates in ambient up to temperatures of 250º F, 120º C (EM19585 only)
- Integrated LED Illumination
- USB 3.0 Connection for power and communication
- Compact 2” x 2.5” x 4” (50mm x 62mm x 100mm)
WeldWatch® PC Software
- Low Latency Digital Image Processing
- Proprietary Log Rendering
- Rotate, flip the image
- Integrated Recording and Playback
- Digital zoom 1x – 10x (1x to 100x total)
- Uncooled Camera
- WeldWatch® Software
- (2) integral USB cables
- Spare spatter shield for illumination window
- 18" fiberglass cable sheathing
- 5 Piece Professional Filter Set**
- Computer sold separately
- Cooled Camera
- WeldWatch® Software
- (2) integral USB cables
- Spare spatter shield for illumination window
- 18" fiberglass cable sheathing
- 5 Piece Professional Filter Set**
- Spatter shield*
- Spanner wrench*
- Computer sold separately
*Not included with EM14280 uncooled camera
**5 Piece Professional Filter Set includes;
- UV Filter - A must for any camera. Penetrates haze, adds warmth, and protects your valuable lens from scratches, dirt, fingerprints, etc. Leave it on your lens at all times.
- Polarizing Filter - For shooting in bright sun, at beaches, snow, etc. Controls bright light entering lenses for a better balanced color image. Darkens blue skies and reduces reflections from non-metallic surfaces.
- Fluorescent Filter - Reduces the greenish cast common to fluorescent lighting and produces pleasing, natural results, particularly in flesh tones.
- Neutral Density ND4 Filter - Enables slow shutter speeds to be used, especially with high speed films, to record movement in subjects such as waterfalls, clouds, or cars. Decreases depth of field by allowing wider apertures to be used, which helps separate subjects from their background.
- 10X Macro Filter - Now you can take close-up shots like you never took before, Enables you to get much closer than the minimum focus of the standard camera lens - as close as 4 inches from the subject. Originally designed for dentists and medical use. Made with high definition optical glass that provides unbelievable detail.
