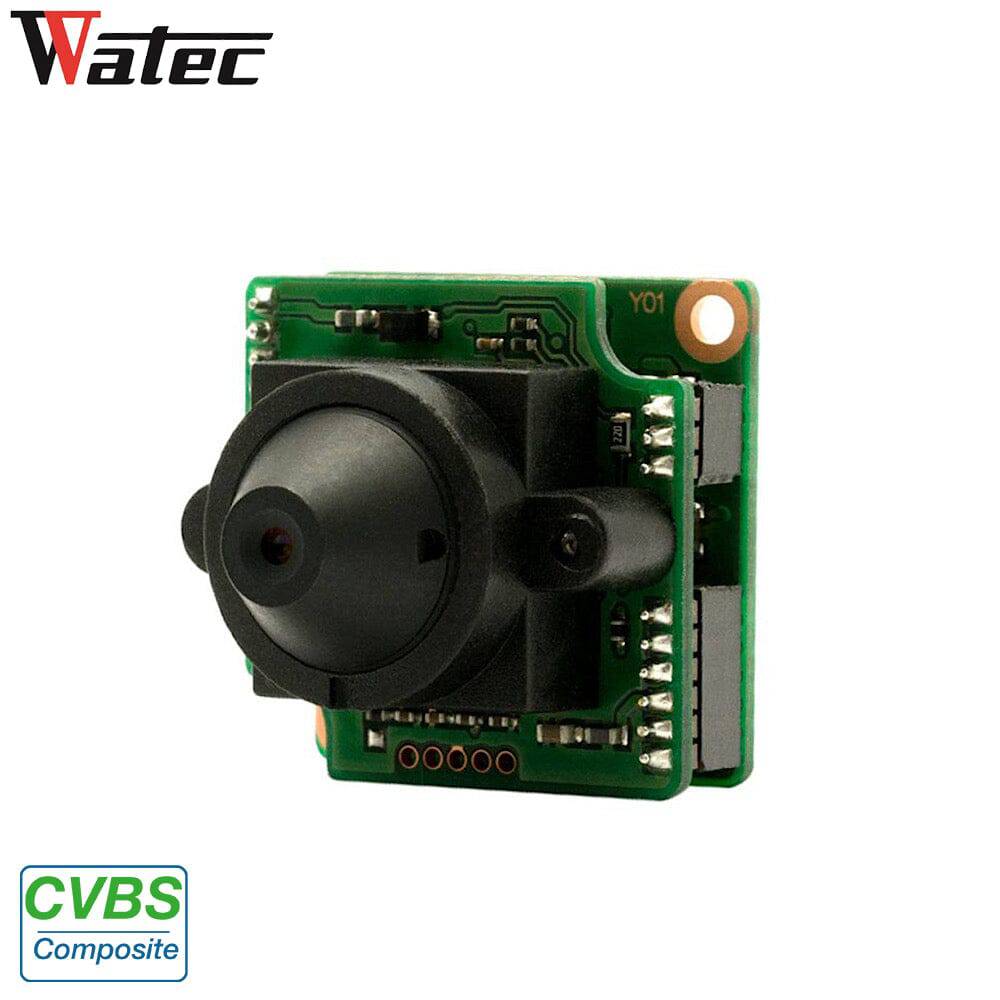

Watec WAT-1100MBD P3.3 NTSC Camera

Watec Vendor Logo SKU: EM14273

• Color day/night board camera
• High sensitivity min. illumination 0.005 lx F1.8
• Ultra-compact design only 23 x 23 x 34 mm
• ICR Mechanical less Day/Night function
• Wide dynamic range
• Advanced setting available by OSD RC-01
• 2DNR ON (Level adjustable)

Description

Details

Watec WAT-1100MBD P3.3 NTSC Camera

Watec’s 1100MBD P3.3 NTSC mini day/night camera has an OSD interface allowing you to customize the camera features, making it compatible with nearly all applications. At 23x23mm, its small size and application adaptability make this camera perfect for systems integration and concealment. 1/3.2 BSI CMOS SENSOR W/MORE THAN 750TVL. 3.3mm PINHOLE, M12 LENS VERSION.

 Specifications

Image Sensor

1/3.2 inch BSI CMOS image sensor

Effective Pixels

1280(H) × 960(V) NTSC

1280(H) × 924(V) PAL

Video Output Mode

Composite: 1.0 V(p-p) 75Ω (Unbalanced)

Max. Video Resolution

More than 750TVL (Center)

Synchronization System

Internal

Min. Illumination

0.005 lx F2.0 (AGC ON=54dB, Shutter=OFF)

S/N Rate

More than 55dB (AGC OFF=0dB, γ=1.0)

Function settings

OSD: Remote controller

Lens iris

DC

AE mode

Auto/Shutter Priority/Iris Priority/Manual/Bright

White Balance

AUTO/ATW/Indoor/Outdoor/Push/Manual

Image Freeze

Off/On

Mirror

Off/Horizontal/Vertical/H+V(180° Flip)

WDR

WDR OFF/ON Level adjustable, D-WDR OFF/ON Level Adjustable

BLC

BLC, HSBLC

Sharpness

Level adjustable

Noise Reduction

2DNR OFF/ON Level Adjustable

Defog

OFF/ON Level Adjustable

Interface


4P connector (Composite Video, Power in), 2P connector (IR light ctl), Remote control(RC-01)

Supply Voltage

DC+5V - 12V

Power Consumption

0.6W/120mA (DC+5V), 0.72W/60mA (DC+12V)

Weight

Approx. 13g

Operating Temperature

-10 - +50°C

Storage Temperature

-30 - +70°C



Downloads



Watec WAT-1100MBD P3.3 Data Sheet

Watec WAT-1100MBD P3.3 User Manual

Watec WAT-1100MBD P3.3 Dimensions
