Watec WAT-902H2/3 Supreme CCD Low Light Monochrome Camera

Watec Vendor Logo SKU: EM16611MFG: WAT-902H2 EIA (Supreme)

• CAMERA IS END-OF-LIFE; SEE DESCRIPTION TAB FOR REPLACEMENT LINK.
• 1/2-inch CCD for EIA
• 1/3-inch CC for CCIR
• Minimum illumination: 0.0003 lx. F1.4
• Super High Sensitivity Adjacent to Near Infra-Red Ray
• New auto iris connection and BNC connection
• Effective pixels: 380,000
• Resolution: 570TVL

Video Format (See Details Tab for EIA/CCIR difference): EIA

Description

Details

THESE MODELS ARE END-OF-LIFE. Use the Watec WAT-3500 Monochrome Camera as its replacement.

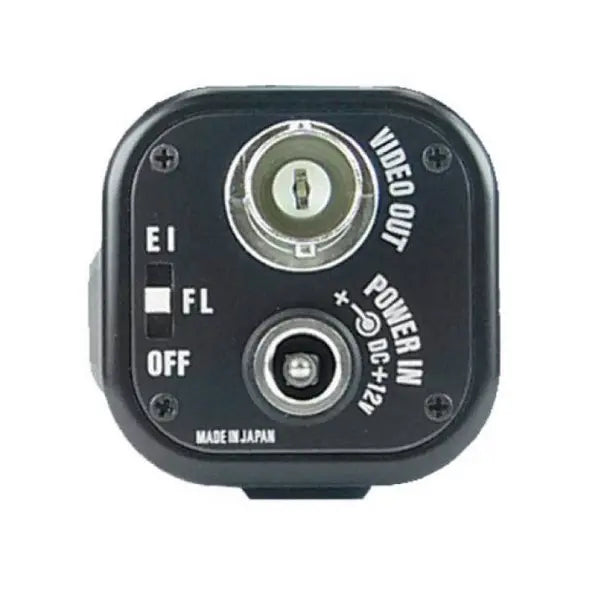

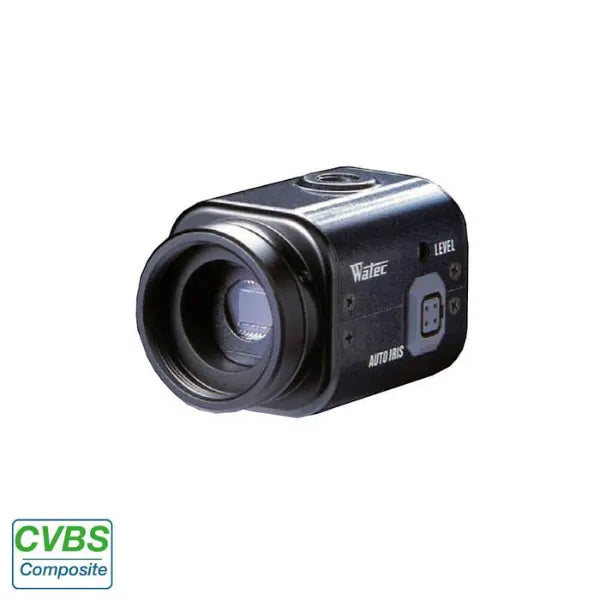

The compact Watec WAT-902H2 Supreme features Super High Sensitivity Adjacent to Near-infrared ray with a minimum illumination of 0.0003 lx. F1.4. The BNC Connector is on the back of the camera with Video/DC iris auto-select. NTSC Effective pixels of 380,000 and TV line resolution of 570. Additional Watec WAT-902H2 camera features include Shutter speed control, Electronic iris, AGC, Flicker-less mode, backlight compensation, iris level control, and gain control.

The WAT-902H2 Supreme comes in EIA and CCIR (the black and white versions of NTSC/PAL). This signal used is based on geographic location:

NTSC/EIA = North America, Japan, Korea, Taiwan, South America (Chile, Colombia, Ecuador, Peru, and Venezuela)

PAL/CCIR: Europe, Middle East, India, China, Australia, Argentina, Brazil, Uruguay, Paraguay

Specifications

Signal System

EIA/CCIR

Image Sensor

EIA: 1/2" B/W interline transfer CCD

CCIR: 1/3" B/W interline transfer CCD

Resolution (h)

570 Lines

Number of Total Pixels

EIA: 811(H) × 508(V)

CCIR: 795(H) x 596(V)

Number of Effective Pixels

EIA: 768(H) × 494(V)

CCIR: 752(H) x 582(V)

Lens

Accepts CS-mount lenses

Iris Operation

Auto Video/DC

Minimum Illumination

0.0003 Lux (F1.4)

Signal-to-Noise Ratio

>46dB

Controls

• Electronic Iris: 1/60-1/100,000 sec

• Electronic Shutter: 1/60 (off), 1/100 (FL) sec

• AGC: Hi: 5-50dB/Lo: 5-32dB

• Back Light Compensation: On

Sync

Internal

Video Output

BNC

Audio Output

No

Motion Detection

No

Alarm I/O

No

Control Ports

N/A

Power Requirements

12 VDC

Power Consumption

1.9W

Operating Temperature

14 - 104°F (-10 ~ +40°C)

Dimensions (WxHxD)

1.4 x 1.4 x 2.4" (36 x 35 x 59mm)

Weight

3.2 oz (90 g)

Downloads

902H_SUPREME_MANUAL (156.57 kB)

902HSUPREME_spec_eng (73.27 kB)

902Series_Spectral (40.52 kB)

WAT-902H2_SUPREME_Datasheet (622.65 kB)
