Details

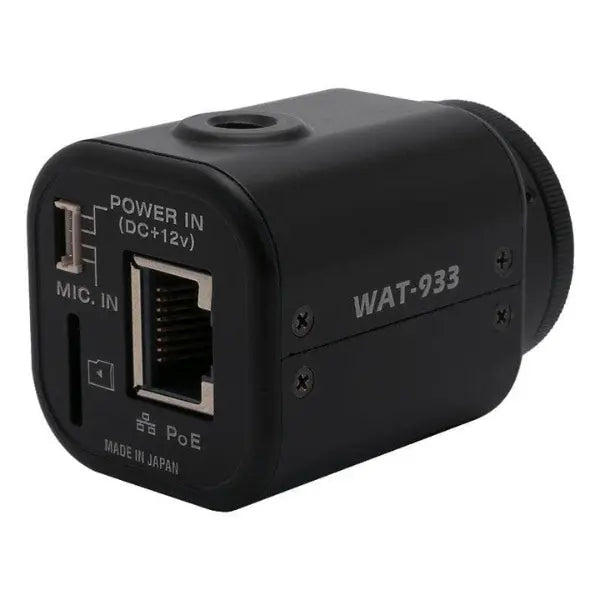

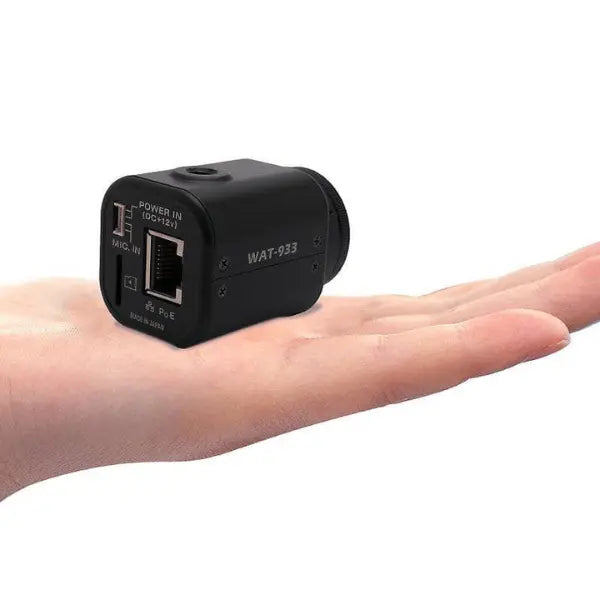

The Watec WAT-933IP is a High Sensitivity, Full HD, Small Form Factor Camera– featuring a 1/2.8 BSI CMOS SENSOR. It features the same body as the well-known 902 series cameras; the WAT-933IP provides extreme HD clarity in low light environments (0.00009lux). OnVif compliant, PoE, duel streaming, onboard recording and internal MIC w/external MIC options are just a few of the convenient features this power packed, miniature package offers.
The WAT-933IP may be used as a replacement for the discontinued WAT-902 Models
Specifications
|
Pick-up Element |
1/3″ interline transfer CCD image sensor |
|
Number of Effective Pixels |
768(H) ◊ 494(V) |
|
Unit Cell Size |
6.4um(H)x7.5um(V) |
|
Synchronizing System |
Internal |
|
Scanning System |
2:1 Interlace |
|
Video Output |
H.264/JPEG: 256k-10M (bps) Composite: 1.0V(p-p) 75Ω, Unbalanced |
|
Output Format |
480/30p, 240/30p |
|
Minimum Illumination |
0.00009lx F1.8 (AGC=48dB, SENS UP ON) |
|
S/N |
More than 50dB |
|
Function Settings |
PC Software |
|
AE mode |
Fixed: x2, x4, x8, x16, x32, x64, x128, x256 (field) 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec. EI: 8FLD – 1/100000 sec. (SENS UP ON) |
|
Flickerless Mode |
OFF, ON, AUTO |
|
AGC |
0 – 42dB (selectable) |
|
MGC |
6, 12, 18, 24, 30, 36, 42, 48dB |
|
Noise Reduction |
2D+3DNR (Level Selectable) |
|
Wide Dynamic Range |
ON (ATR) / OFF |
|
Back Light Compensation |
OFF / BLC / HLC |
|
Defog |
ON (Level Selectable) |
|
Digital Zoom |
ON (1x – x256) / OFF |
|
Privacy Mask |
15 Masks |
|
Protocols |
TCP/IP, DHCP, DNS, RTSP,/RTP over TCP, FTP, NTP |
|
Interface |
RJ45 (10M/100M), Power In, Mic. In, Monitor Out, Micro SD |
|
Power Supply |
DC + 12V±10% |
|
Power Consumption |
About 2W |
|
Operating Temperature |
-10 to 50⁰C |
|
Storage Temperature |
-30 to 70⁰C |
|
Operating/Storage Humidity |
Less than 95% RH (Without Condensation) |
|
Lens Mount |
M12 P=0.5 |
|
Standard Lens |
3324B-12P(A) (f3.3 F2.4) |
|
Weight |
Approx. 76g |
|
Accessories |
4P Cable, 2P Cable |
Downloads
WAT-933_Datasheet (676.60 kB)
