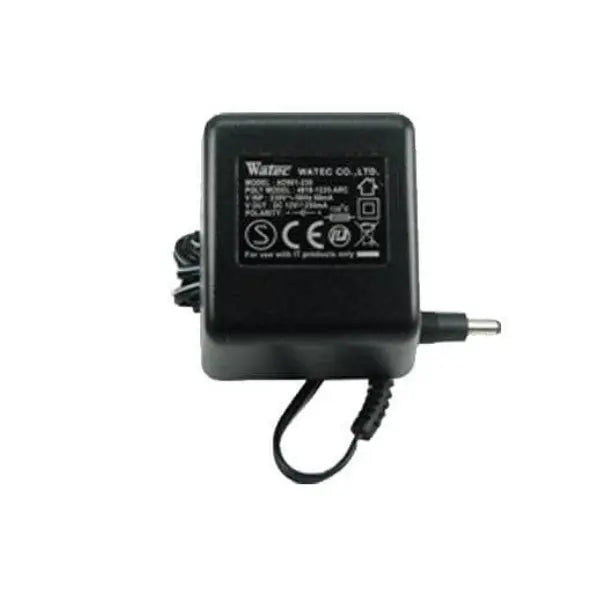

The Watec AD-901 Power Supply is designed for use with specific Watec cameras.
Features:
- 12VDC, 250mA
- For use with the following WATEC camera models: WAT-232, 221S, 231S, 231S2, 250D, 202D, 202B, 204CX, 120N, 100N, 902DM2S, 902DM2, 902DM3S, 902DM3, 902H2 SUPREME/ULTIMATE, 902H3 SUPREME/ULTIMATE, 902H, 902B, 525EX, 535EX, 127LH, 137LH, 300DH3
- For 120VDC and 220VDC.
Specifications
|
Input Voltage |
AC120V 60Hz |
|
Output Voltage |
DC12V |
|
Output Current |
Max. 250mA |
|
Connector |
EIAJ-2 (Outside diameter: ÿ5.5mm, Inside diameter: 2.1mm) |
|
Safety Standard |
UL/CUL |
|
RoHS Directive |
Complied |
|
Operating Temperature |
-10⁰C – 40⁰C |
|
Storage Temperature |
-20⁰C – 50⁰C |
|
Weight |
300g |
