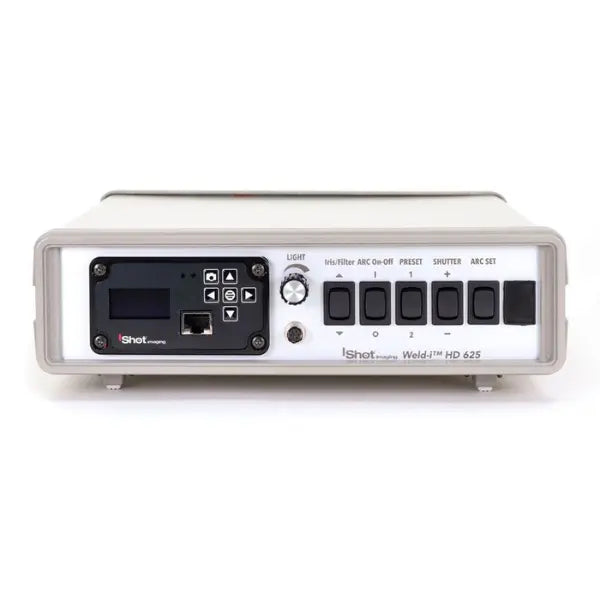

Weld-i® 625 HD Weld Camera System saves resources and time to allow the Welder to view the quality of automated welds in real-time. This system combines a compact, water-cooled housing, with a high-definition color CMOS camera to provide a durable, easy-to-mount Weld Viewing System in punishing environments.
The Weld-i® camera head is compact at 5/8" in diameter and 2.278" long. The motorized "flip" filter allows viewing during welding and non-welding modes. The focus is adjustable via a mechanical set screw. Illumination is delivered to the target during non-weld modes via an LED light. A light guide is an option available in accessories.
The Weld-i® 625 HD Weld Camera System can be used for GMAW, GTAW, FCAW, and many other welding processes including weld education and remote welding inspection. With its compact size and rugged enclosure, the system is ideal for welding in hard-to-reach, remote locations.
The Weld-i Camera is considered suitable for use in welding environments up to 400 degrees F when room temperature water is supplied at 20 psi and there is no significant preheating of the coolant supply. The tests utilized convective oven heating only and did not account for radiant heat load from the welding environment.
Specifications

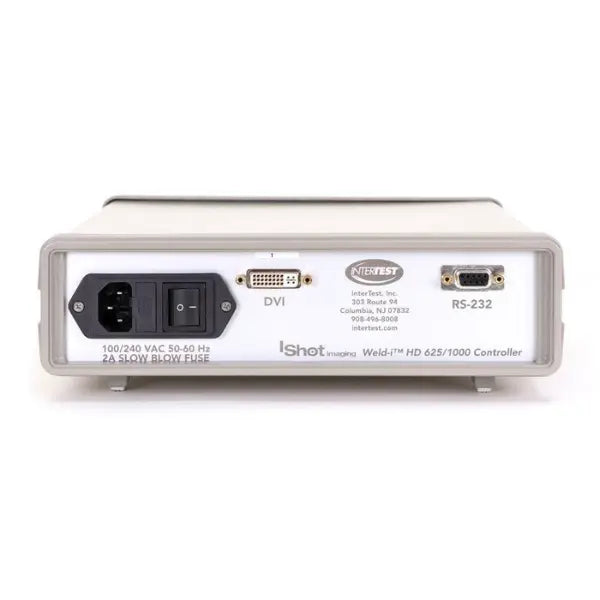

| Signal System | DVI, USB 2.0 |
| Video Formats | 1080p60, 1080p30, 720p60, 480p120 |
| Format | 16:09 |
| Sensor | 1/6" CMOS 2 Megapixel |
| Exposure | Auto, Manual |
| Shutter Values | Automatic, over 20 selectable values |
| Image Controls | White Balance, Sharpness, Gamma, Saturation, Contrast, Hue |
| E-PTZ | Available in Downscaled Modes |
| Presets | 4 Available |
| Color Temp Options | 2800K, 4500K, 6500K |
| Cable Material | PFA (High Temperature) |
| Cable Lengths | 2 m, 3.5 m, 5 m, 10 m, and 15 m |
| Power | 100/220 VAC 50-60hz |
