Weld-i® Submerged Arc Weld (SAW) Camera Head

Weld-i Brand Logo SKU: EM10916

• KT&C ATC-HZ7810C-T camera core in a durable housing
• Features lens protective covers for potential spatter
• Wide Dynamic range and four adjustable LEDs for low-light enviornments

Description

Details

The Weld-i® Submerged Arc Weld (SAW) Camera Head integrates advanced imaging technology with user-friendly controls to optimize submerged arc welding (SAW) operations. This camera head produces FULL HD 1080p/60fps high-quality images and is protected by a durable housing. The camera features a 2.1M Progressive CMOS Image sensor, 10x zoom, progressive scanning and Low-noise imaging for versatility and high performance.

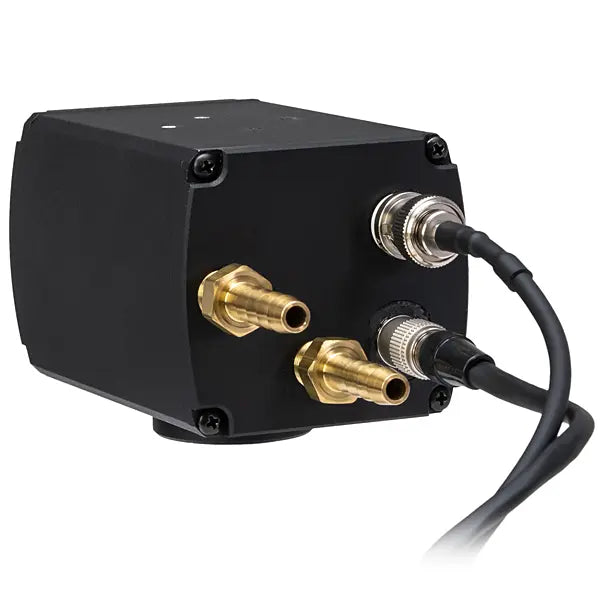

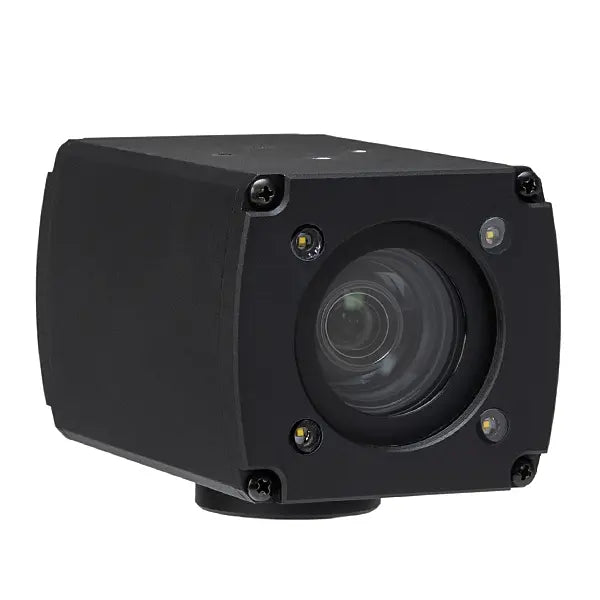

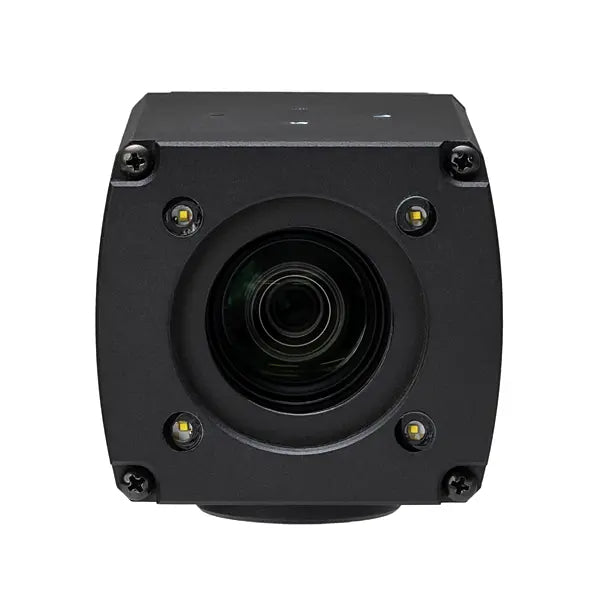

The camera is suited for low-light environments with its wide dynamic range and four adjustable LED's on the housing. To allow for active air cooling in difficult environments the housing also features two cooling barbs on the back of the camera head. The lens is protected by a spatter shield which can be easily replaced to ensure a consistently clear image.


Visit our Weld-i® Submerged Arc Weld (SAW) Camera Monitoring System page to see the complete system and accessories.

Specifications

Camera Sensor/ Output


Image Sensor

1/2.8” Exmor CMOS image sensor

(STARVIS)

Effective Pixels

2.13 million pixels (1945(H) x

1097(V))

Video Output Camera

TVI 1080p/ 30

Video Output CCU

HDMI 1080p/ 30

Min. Illumination Day

0.05 Lux @ F1.6

Min. Illumination Night (IR-cut filter on)

0.03 Lux @ F1.6

Min.Illumination S/N ratio

More than 52 dB

Optical Lens


Zoom Magnification

10x

Focal Length

5.1 to 51.0 mm

Horizontal Angle

54.0°(W) ~ 4.9°(T)

Vertical Angle

31.0°(W) ~ 4.0°(T)

Diagonal Angle F-Value

68.0°(W)  ~ 6.7°(T)

F- Value

F1.6 (W)  ~ F1.8 (T)

Focus

Auto

Focal Range

Infinity ~ 1.0m (T)  ~ 0.01m (W)

IR Correction

Standard / IR Light

Output

HDMI 1080p/30

Illumination

4ea.Luxeon 5700L LED’s

Housing

Aluminum IP50

Mounting

Mounting Puck 1/4-20

System Power

Input: 100-240VAC 1.6 Amps

Output: 50 W
