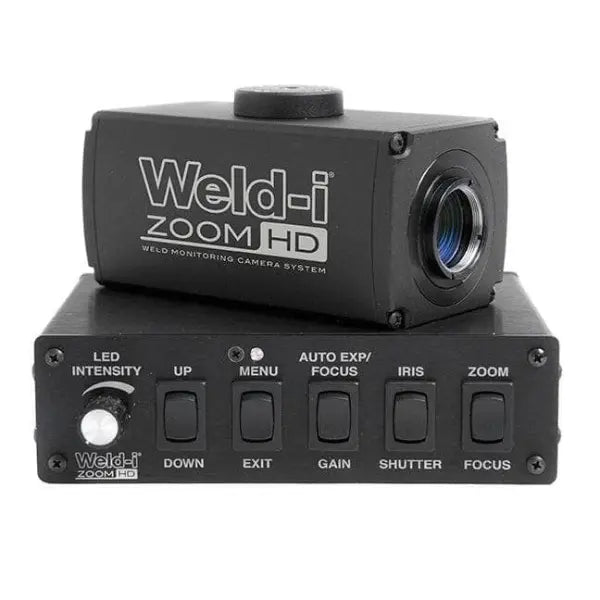

Weld-i® HD Zoom Weld Camera Monitoring System 3GSDI Video Output - 25 ft

Weld-i Brand Logo SKU: EM19191

• HD weld camera with zoom
• Auto focus, 10x optical zoom (12x digital zoom)
• Wide 120dB dynamic range
• 3G-SDI video out
• Full HD 1080/60p (1920 x 1080) picture quality
• Filter and protection shield mount
• ¼-20 housing mount
• Housing - Indoor IP-40 rating, powder coat finish
• 25’ Power Cable – provides power to the camera head from power source
• 25’ 9 Pin D SUB Control Cable – provides control to the camera head from controller box
• 25’ BNC Video Cable – provides video output directly to monitor
• Push button controller for camera functions and LED control (LED Illumination Kit sold separately)

Weld-i

Description

Details

Weld-i® HD Zoom Weld Camera Monitoring System 3GSDI Video Output - 25 ft

Zoom in to view the live welding process in HD with the Weld-I® Zoom HD Automated Weld Monitoring System. This system produces a Full HD picture with the 3G-SDI output of the live weld process by blocking out the harmful UV light of the arc, all while the weld camera is at a distance, so it is protected from the harsh conditions of the welding environment.

The system produces Full HD 1080/60p (1920 x 1080) high-quality images that can show the weld's torch, puddle, and seam. The weld camera boasts a 10x optical zoom with 12x digital zoom (120x total). The onboard optical filters with the camera’s Wide Dynamic Range processing technology allow the system to see clear, detailed images in the high-contrast weld environment.

In addition to live weld monitoring, the iShot® Weld-I® Zoom HD Automated Weld Camera Monitoring System can provide enlarged views of the weld before and after completion. The operator can perform quick, efficient post-weld inspections from a safe distance. Optional onboard LEDs are available to illuminate the dark areas for easy targeting upon setup.

Specifications

  • Image Sensor: 1 /2.8-type Exmor CMOS
  • Approx. 2.38 Megapixels
  • Lens: 10x optical
  • Picture quality: Full HD 1080/60p (1920 x 1080)
  • Minimum illumination: 1.4 lx (F1.8, 50%)
  • Housing - Indoor IP-40 rating, powder coat finish
  • BNC, D-SUB 9 and Hirose 4-pin cable bundle for control of video, communication and power

Downloads

Weldi_HD_Zoom (2.37 MB)

WELDI_ZOOM_HD_MANUAL (881.07 kB)
