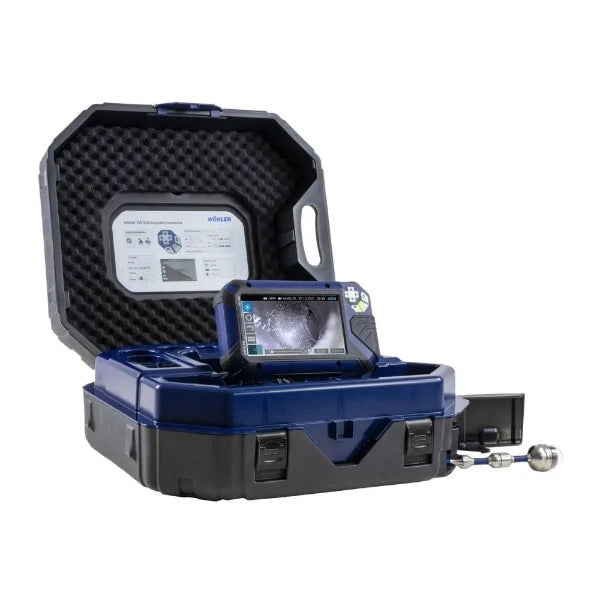

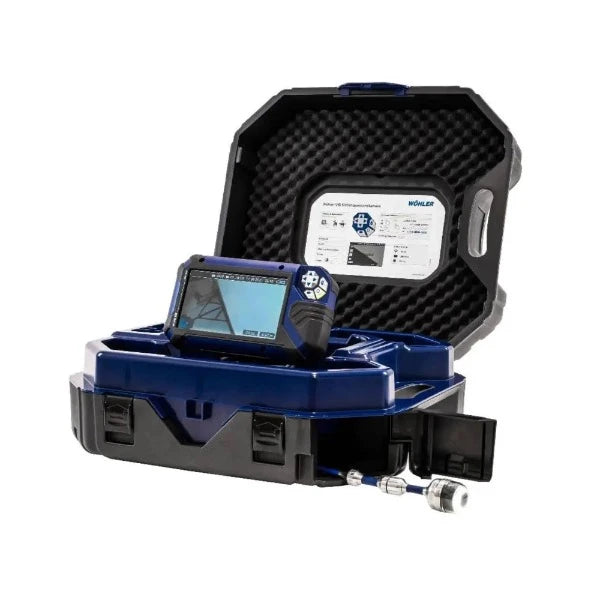

Wohler VIS 500 PLUS Camera Inspection System w/ 1.5" & 1" Camera Head and Locator - 11304

Wohler Vendor Logo SKU: EM18113MFG: 11304

• Ø 1.5" Camera Head
• Ø 1" Camera Head
• House connections up to Ø 8"
• Optics pan 360° and tilt 180°
• Manual control of LED lighting
• Electronic distance counting with the display on the monitor
• Independent operation due to lithium-ion battery with up to 6 hours of working time
• Direct storage of photos and videos on the integrated memory (4 GB) or on a USB stick.
• WLAN interface for live image transmission
• Targeted damage repair
• Long-life lithium-ion battery

Accessories

Wohler 1
Wohler 1" Camera Head V2, NTSC for VIS 200, VIS 250, VIS 350 - 8934
Wohler VIS 350 1.5 inch OD Color PTZ Camera Head - NTSC - 8926
Wohler VIS 350 1.5 inch OD Color PTZ Camera Head - NTSC - 8926
Wohler L 200 Locator for 1
Wohler L 200 Locator for 1" and 1.5" Camera Heads - 7430
Wohler VIS 65 ft Video Cable - 9172
Wohler VIS 65 ft Video Cable - 9172
Wohler Telescoping Pole w/ 12
Wohler Telescoping Pole w/ 12" Gooseneck - 7005
Wohler VIS Camera Trolley Set - 4753
Wohler VIS Camera Trolley Set - 4753
Wohler Camera Holder Bottom Up - 3720
Wohler Camera Holder Bottom Up - 3720
Wohler Glass Dome for 1.5
Wohler Glass Dome for 1.5" Camera Head - 3674
Wohler Replacement Polycarbonate Domes for 1.5
Wohler Replacement Polycarbonate Domes for 1.5" Camera Head - 3675
Wohler Guidance Sleeve with Protection Cage for 1
Wohler Guidance Sleeve with Protection Cage for 1" Camera Head - 3847
Wohler Protection Sleeve with Cut Out for 1.5
Wohler Protection Sleeve with Cut Out for 1.5" Camera Head - 2641
Wohler Guidance Set 100 for 1.5
Wohler Guidance Set 100 for 1.5" Camera - 4240
Wohler Camera Roller Guide for Camera Heads and Push Rods - 3681
Wohler Camera Roller Guide for Camera Heads and Push Rods - 3681
Wohler Guidance Sleeve for 1
Wohler Guidance Sleeve for 1" Camera Head - 3827

Description

Details

Wohler VIS 500 PLUS Camera Inspection System w/ 1.5" & 1" Camera Head and Locator- 11304

The Wohler VIS 500 inspection camera features a Locator and exchangeable camera heads that can control the pan and tilt of the camera head via a keypad, making everything in view, even in dark areas. The monitor provides sharp and true-color images with exact detail and features a large internal memory and a USB drive for external storage.


The camera‘s WLAN interface makes it feasible to view images and videos on the large camera display and simultaneously on the smartphone or tablet display, allowing for simultaneous streams. The image files are transferred from the camera to the app via WLAN; during the inspection, an illustrated report can be done in just a few minutes, which you can send directly from your smartphone to your office address, the customer, or the insurance company with one click.

Specifications

Monitor


TFT display

7" / 16:9 Format

Resolution

1.024 x 600 px

Power supply

USB-C 5 V / 3 A 3,7 V / 11,4 Ah

Operating time

Operating time

Dimensions

9.6" x 5.5" x 2.1"

Weight

1.5 lbs

Wohler pan / tilt camera head Ø 1.5"


Resolution

720 x 576 px (PAL)          720 x 480 px (NTSC)

Angle of image capture

130°

Light source

white LEDs (12 pieces)

Protection class

waterproof IP 67

Dimensions

Ø 1.5" x 2.4"

Transmission frequency Locator

9.2 kHz / 8.9 kHz / 512 Hz

Wohler miniature camera head Ø 1"


Resolution

720 x 576 px (PAL)          720 x 480 px (NTSC)

Image acquisition angle diagonal

145°

Light source

white LEDs (12 pieces)

Protection class

pressurized waterproof IP 68

Dimensions

Ø 1" x 1.5"

Transmission frequency Locator

9,2 kHz

Camera pushrod


Length

100'

electr. distance counting

Downloads

Wohler VIS 500 Inspection Camera Manual
