The Wohler VIS 750 HD is an advanced remote visual inspection (RVI) camera system with rugged, high-resolution camera technology, pan-tilt maneuverability, bright LED illumination, and either 130-foot or 200-foot* push rod reach. This robust and reliable camera system tackles the most demanding inspection tasks, such as pipe, shaft, ventilation, and wastewater pipe inspections.
Key Features:
- Long Length Reach: The 130 or 200-foot* camera push rod is durable and flexible for far-reaching inspection applications inside complex, bending pipework systems.
- Interchangeable Camera Heads: Choose between a 1.5" pan and tilt head or a 1" miniature camera head, allowing for versatile application depending on inspection needs.

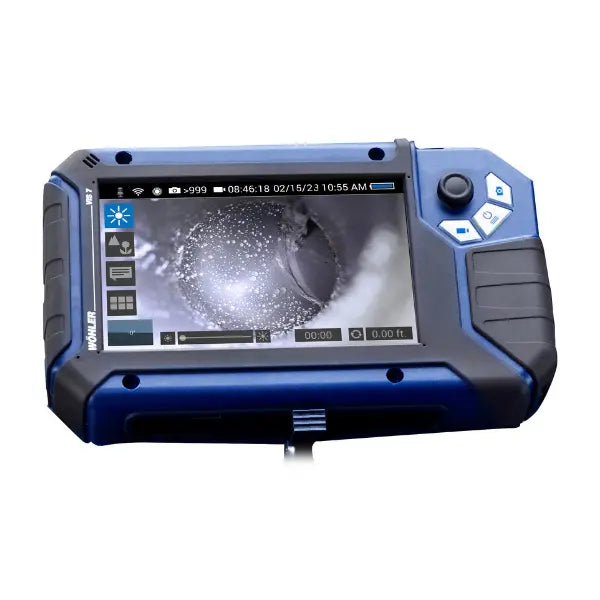

- Detachable HD Monitor: Enhance your operational flexibility with a monitor that can be detached from the system and placed on any magnetic surface or propped up with its stand, providing convenience during multi-task inspections.

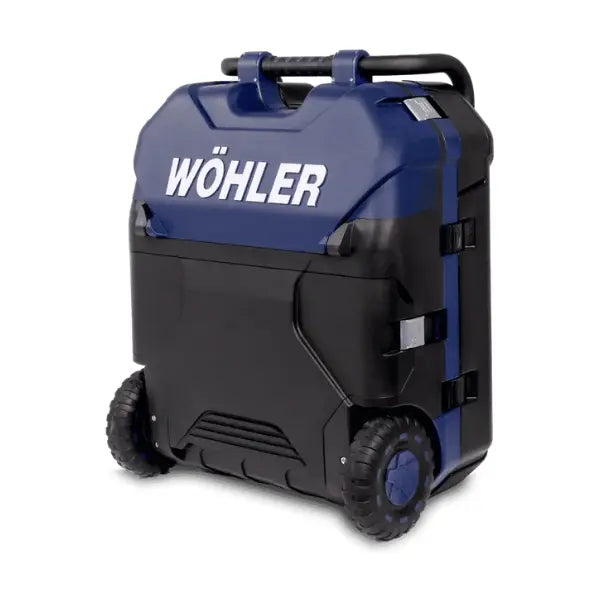

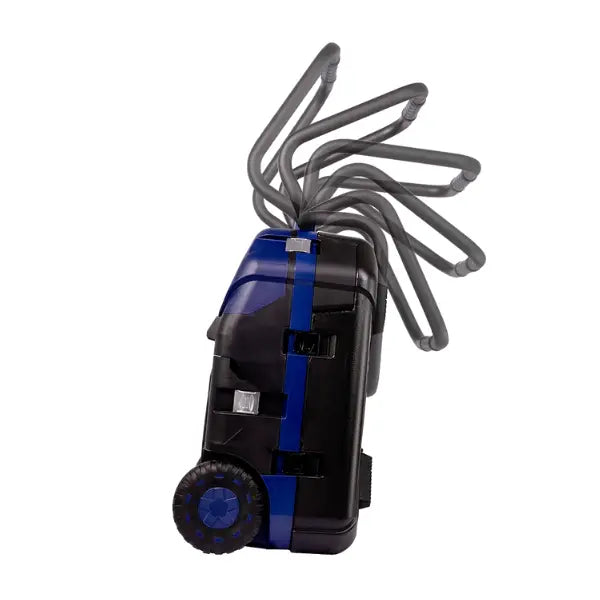

- Robust and Reliable Design: The inspection camera system is built into a durable trolley that ensures safe transportation and operation across various inspection environments. Additionally, the trolley is equipped with a brake-resistant feature for added security.
- Flexible Monitor Cover: Features a removable front flap that doubles as an integrated glare shield, enhancing visibility and reducing eye strain under bright conditions.
*200-ft VIS 750 HD available Summer 2025
Specifications
| VIS 750 HD Monitor | |
| Dimensions Housing | 250 x 155 x 54 mm |
| Weight | 860 g |
| TFT Display | 7“ / 16:9 Format / 1280 x 800 pixels |
| Charging Cable | USB-C |
| Power Supply | 5 V / 3 A |
| Battery operating time | 3,6 V, 14 Ah Li-Ion Akku |
| Operating temperature | 0 to 40 °C |
| Storage temperature | - 20°C to 50°C |
| WLAN function | Wireless LAN IEEE 802.11 b/g/n Netzwerk Standard 2412-2472 MHz, < 10dBm |

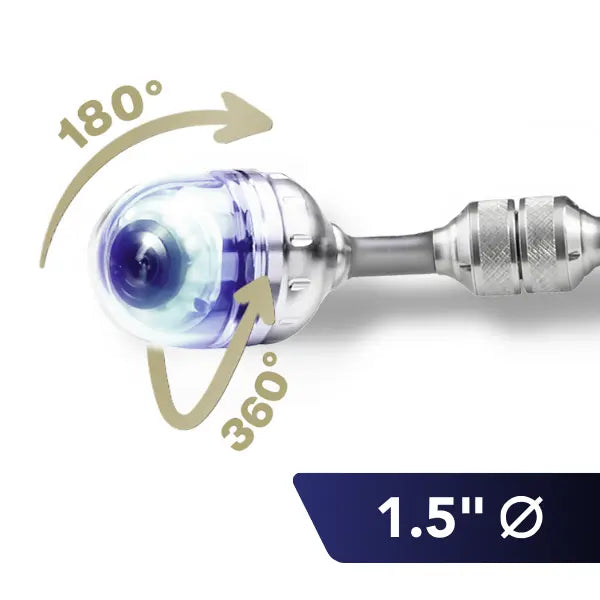

| VIS 750 HD Pan/Tilt Camera Head | |
| Image Sensor | 1/2.7" Color CMOS |
| Focal Distance | 27 mm - ∞ |
| Light Source | 10 white LEDs |
| Protection | Waterproof to IP 67 (30 min. up to 1 m deep) |
| Dimensions |
40 mm diameter 56 mm housing length 102 mm total length (approx.) |
| Built-in Transmitter Frequency | 9.2 kHz |
| Image Capture Angle Diagonal | 70° |
| Working Temperature | 0 to 40°C |
| Storage Temperature | -20 to 50 °C |

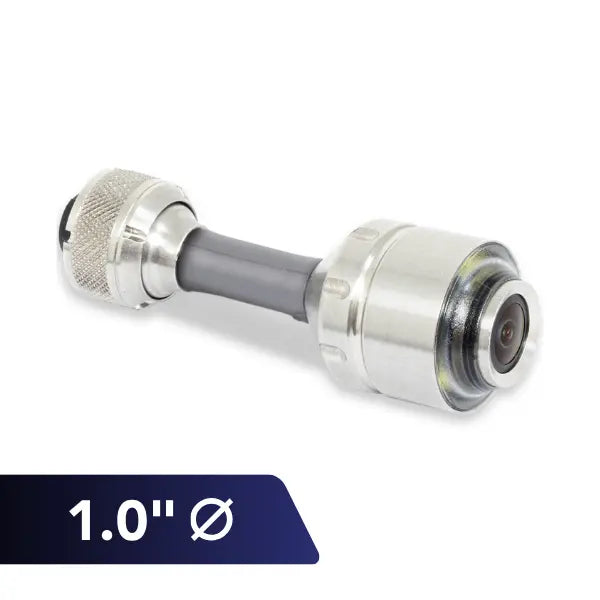

| VIS 750 HD Mini Camera Head | |
| Image Sensor | 1/2.7" Color CMOS |
| Light Source | 10 white LEDs |
| Protection | Waterproof to IP 68 |
| Dimensions |
26 mm diameter 35.8 mm housing length 80.6 mm total length |
| Built-in Transmitter Frequency | 9.2 kHz |
| Image Capture Angle Diagonal | 150 ° |
| Working Temperature | 0 to 40°C |
| Storage Temperature | -20 to 50 °C |
| Reel w/ Camera Rod | |
| Rod Lengths | 40 m (130 ft), or 60 m (200 ft) |
| Rod Dimensions | 10 mm diameter (for 130 ft length), 10.6 mm diameter (for 200 ft length) |
| Minimum Bending Radius | approx. 190 mm (for 130 ft length), approx. 225 mm (for 200 ft length) |
| Connection Cable to Monitor | 2 m (for 130 ft & 200 ft lengths) |
| Technical Data | |
| Electronic Meter Counter Resolution | 26 mm |
| Electronic Meter Counter max. deviation | 5% of reading |
| Storage Medium | Internal memory or USB stick with max. 32 GB (recommended by Wohler) |
| Max. Recording Time on Internal Memory | 5 hours |
| Resolution of Saved Recordings |
Photo with overlays (.png) - 1280 x 800 pixels Photo without overlays (.jpg) - 1280 x 720 pixels Video (.avi) - 1280 x 720 pixels |
| Max Recording Duration | 29 minutes & 59 seconds |
| Trolley Dimensions | 39 x 56 x 70 cm (LxWxH) |
| Trolley Total Weight | 26.4 kg (with monitor, camera head, and camera rod) |
