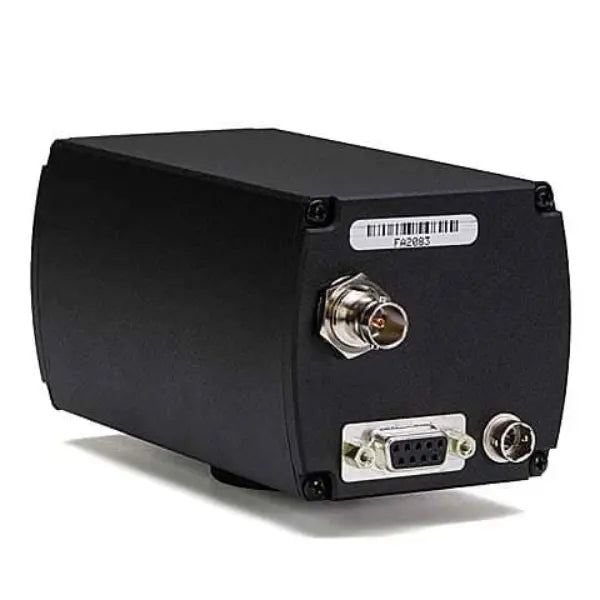

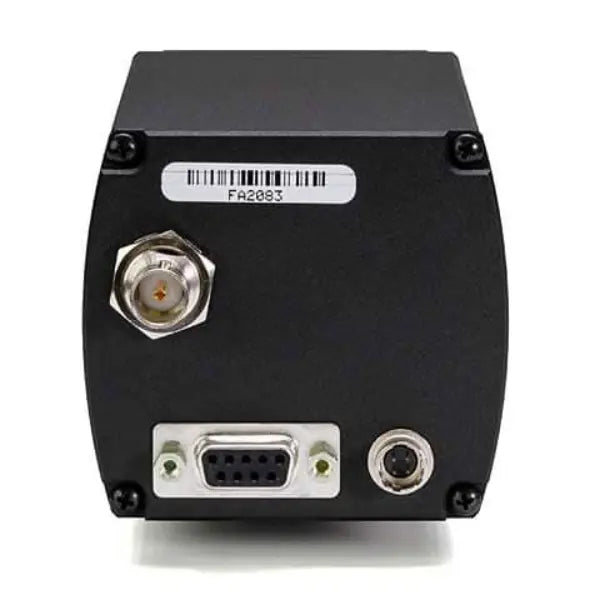

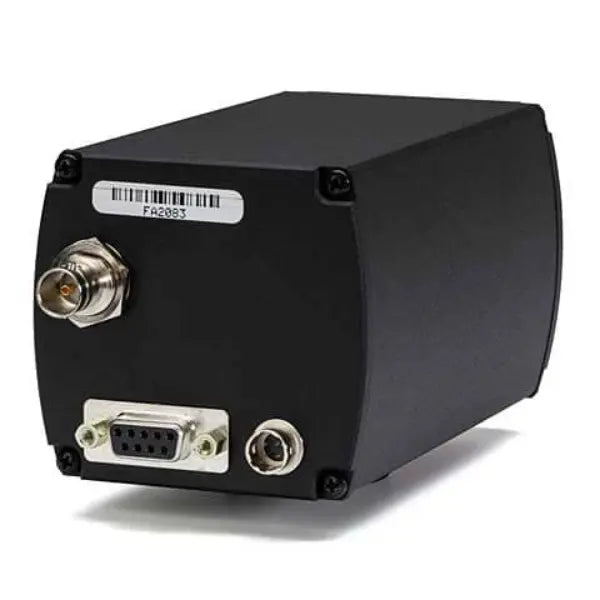

The XBlock® FCB-EV9520L high-sensitivity block camera with 30x zoom provides a 1/2.8" Exmor CMOS image sensor (approx. 2.14 million effective pixels) that supports 3G-SDI and FULL HD (high definition) to produce high-quality images in remote visual inspection (RVI) applications. The camera enclosure is a robust, powder-coated aluminum housing that is IP50-rated. Connections off the back panel include composite for 3G-SDI video out, 9-pin D-Sub for RS232 command control, and a 4-pin power connector.

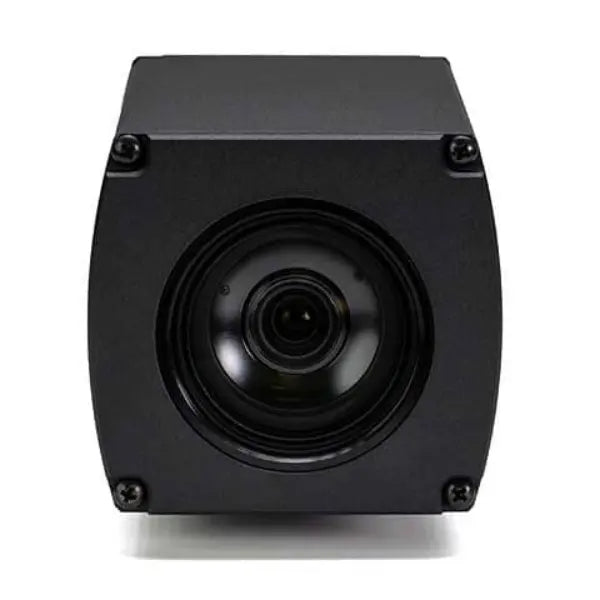

The camera's integrated lens features 30x optical zoom, a 63.7° horizontal field of view, and a wide dynamic range, making it ideal for low-light environments. The camera features an integrated anti-shake function for clear, steady images, along with regional focus/exposure/white balance controls, as well as enhanced infrared night vision capabilities.
New Image Stabilization mode: The combination of a high-performance image sensor and an advanced image processor achieves superb image stabilization even in low-light environments.
Spectral Sensitivity: Ideally suited for low-light environments, the 1/2.8 type sensor provides superior performance in near-IR (NIR) applications. New color enhancement options can make reading text and pictures less challenging. Available options include monochrome, binary, inverted, enhanced color, and the new ICR Color On modes.
Wide-Dynamic Range: The FCB-EV9520L camera effectively monitors luminance differences within images in high-contrast environments, boasting a key specification of 130dB when set to maximum WDR at 30 frames per second across all capture resolutions.
Privacy Zone Masking: Privacy Zone Masking protects private objects and areas such as house windows, entrances, and exits, which are within the camera’s range
Specifications
|
Image Device |
1/2.8-type CMOS |
|
Effective Pixels |
Approx. 2.13 Megapixels |
|
Digital Zoom |
12x (360x with optical zoom) |
|
Horizontal Viewing Angle |
63.7°(wide end) to 2.3°(tele end) |
|
Minimum Object Distance |
10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm) |
|
Sync System |
Internal |
|
Electronic Shutter |
1/1 s to 1/10,000 s, 22 steps |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual |
|
Gain |
Auto/Manual 0 dB to 50.0dB (0 to 28 steps +2 step/ total 15 steps); Max. Gain Limit 10.7 dB to 50.0 dB (6 to 28 steps +2 step/total 12 steps) |
|
Wide Dynamic Range |
No |
|
Backlight Compensation |
Yes |
|
Privacy Zone Masking |
Yes |
|
Character Generator |
20 characters/line, max. 11 lines |
|
Focus System |
Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on |
|
Picture Effects |
E-Flip, Nega Art, Black & White, Mirror image, Color enhancement |
|
Exposure Control |
Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE |
|
Lens Value |
30x optical zoom; f=4.3mm (wide) to 129.0mm (tele); F1.6 to F4.7 |
|
S/N Ratio |
More than 50 dB |
|
Minimum Illumination |
Color: 1.4 lx (F1.6, AGC on, 1/30 s); High Sensitivity Mode Color: 0.35 lx (F1.6, AGC on, 1/30 s) |
|
Video Output |
Digital: Y/CB/CR 4:2:2 via LVDS (Signal format conforms to SMPTE 274/SMPTE 296.) SD VBS |
|
Camera Control Interface |
VISCA (CMOS 5 V level; Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit |
|
Dimensions (W x H x D) |
50.0 x 60.0 x 89.7 mm |
|
Weight |
Approx. 260 g |
|
Operating Temperature |
-5 ℃ to +60 ℃ |
|
Storage Temperature |
-20 ℃ to +60 ℃ |
|
Operating Humidity |
20% to 80% |
|
Power Consumption |
3.2 W (zoom/focus inactive); 4.0 W (zoom/focus active) |
|
Power Requirements |
6.0 V to 12.0 V DC |
| Enclosure rating | IP-50 |
