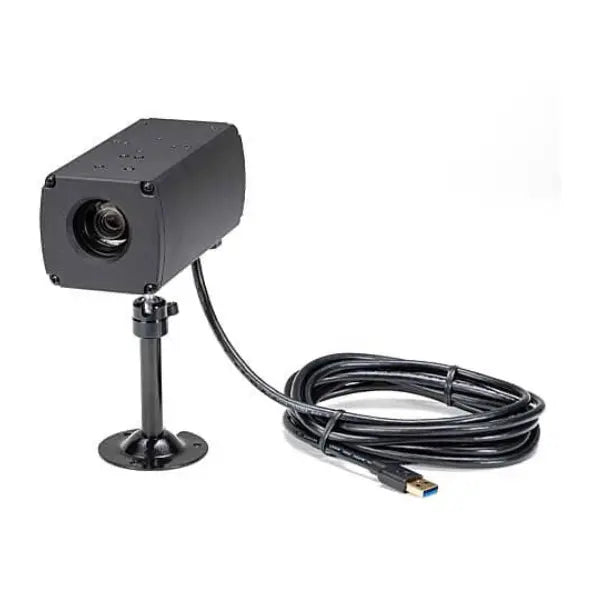

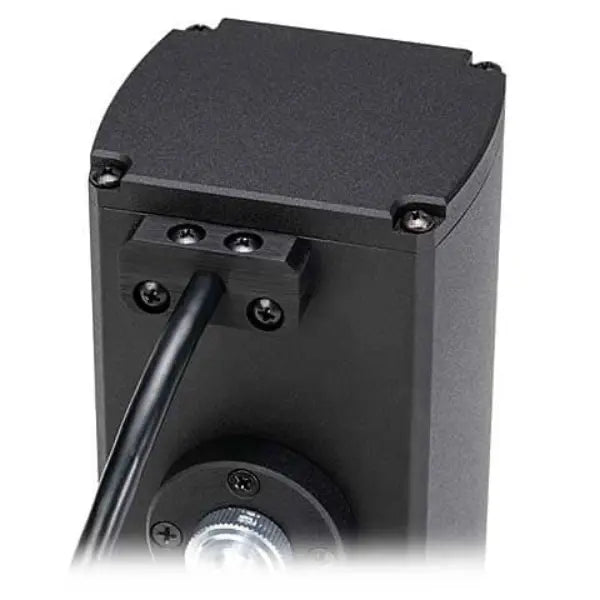

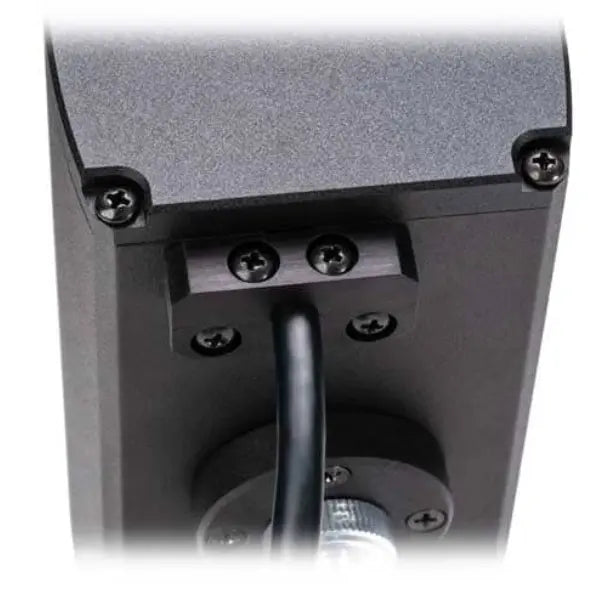

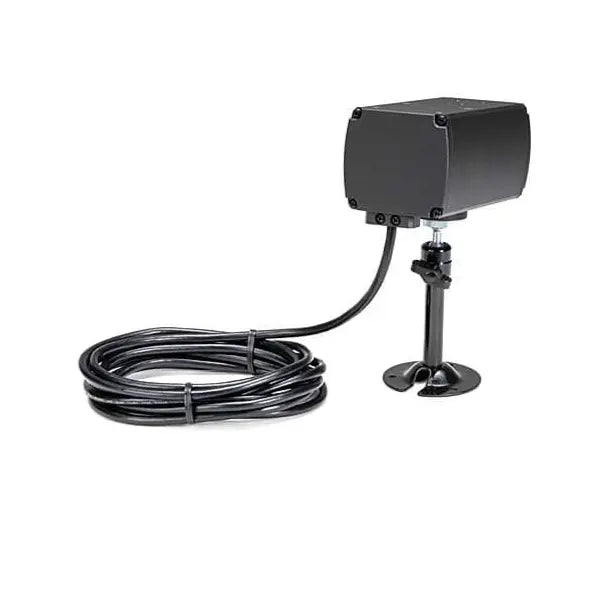

The XBlock® XBC-KZ10 USB3 Indoor Housing integrates the KT&C ATC-HZ7810C-L 10x Rolling Shutter Camera with the Twiga TV10 0083 USB3 Neo Interface Board inside a robust IP52-rated indoor housing.
The internal camera ATC-HZ7810C-LN(F) (aka the KZ10) Block Camera uses a 1/3" 2.1M Progressive CMOS Image sensor that produces high-quality FULL HD 1080p/60fps images. The sensor uses progressive scanning with a Wide Dynamic Range function to allow the camera to perform in dark and light environments. Low-noise imaging from the Noise Reduction function gives the camera versatility and high performance.
Other notable features are an automatic Infrared (IR) cut filter for dark environments, motion detection, privacy zone masking, and in-picture text display.
Twiga USB3 Interface Board
The TWIGA TV10 0083 USB 3.2 NEO Interface Board converts the native LVDS video signal from Sony and KT&C block cameras to the USB3 standard. It also features new visualization, processing, and image transfer solutions using USB3 streaming capabilities.
Plug & Play LVDS to USB3 Solution
A simple USB3 cable is enough to power, control, and stream HD video from the camera. This enables easy implementation of image capture solutions on most devices with a USB3 port (single board computers, NVidia platforms, or PCs using Windows or Linux OS).
Uncompressed video stream
Twiga USB3 Neo provides an uncompressed UVC-compliant video stream. This enables a user to perform standard applications (i.e VLC, Amcap, Windows camera) for image capture, recording & viewing. It also allows the development of custom applications and image processing based on DirectShow, GStreamer, or OpenCV.
Specifications
|
Image Sensor |
1/2.8” Exmor CMOS image sensor |
|
Effective Pixels |
2.38 million pixels (CVBS 760H) |
|
Output Format |
1080p/60,1080p/50,1080p/30, 1080p/25, 720p/30, 720p/25 |
|
Sync System |
Internal |
|
CVBS scale |
16:9 / 4:3 |
|
LVDS mode |
Single / Dual |
|
Min. illumination Day |
0.5 Lux @ F1.6 |
|
Night (IR-cut filter on) |
0.1 Lux @ F1.6 |
|
S/N ratio(AGC off , DSS off) |
More than 52 dB |
|
Optical Lens |
|
|
Zoom Magnification |
10x |
|
Focal Length |
5.1 to 51.0 mm |
|
Horizontal-Angle |
54.0°(W) ~ 4.9°(T) |
|
Vertical Angle |
31.0°(W) ~ 4.0°(T) |
|
Diagonal Angle F-value |
68.0°(W) ~ 6.7°(T) |
|
F-value |
F1.6(W ) ~ F1.8(T) |
|
Focus |
Auto / Manual / Interval / One |
|
IR correction |
Standard/IR Light |
|
D&N mode |
Auto / Day (Color) / Night (BW) / External-H / External-L |
|
Night Color |
Off/On |
|
White Balance |
Auto / ATW / Indoor / Outdoor / Push / Manual |
|
AE mode |
Auto / Shutter Priority / Iris Priority/ Bright / Manual |
|
Brightness |
1~ 20 |
|
AGC Limit |
Off ~ 58dB |
|
Manual Shutter |
X32~x2,1/25(30)/1/50(60) ~ 1/30000 |
|
Manual AGC |
Off ~ 58dB |
|
Manual Iris |
F1.2 ~ F19, Close |
|
Sens-Up |
Off ~ 32fields |
|
OSD |
Menu OSD (English / Japanese / Russian / Spanish / German /France/ Portuguese) |
