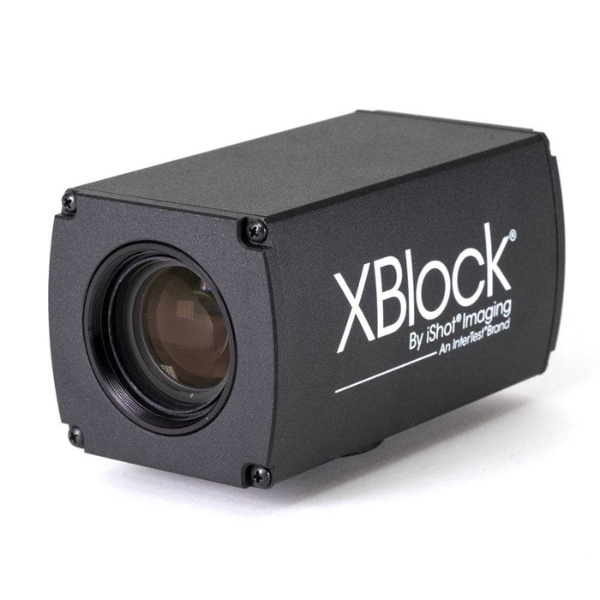

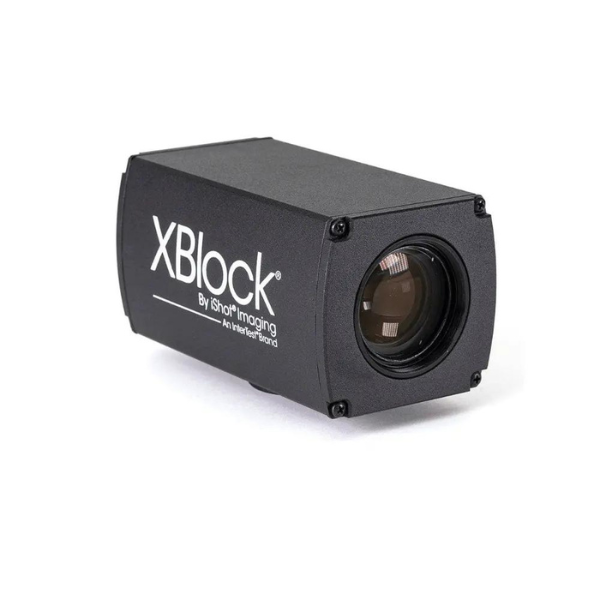

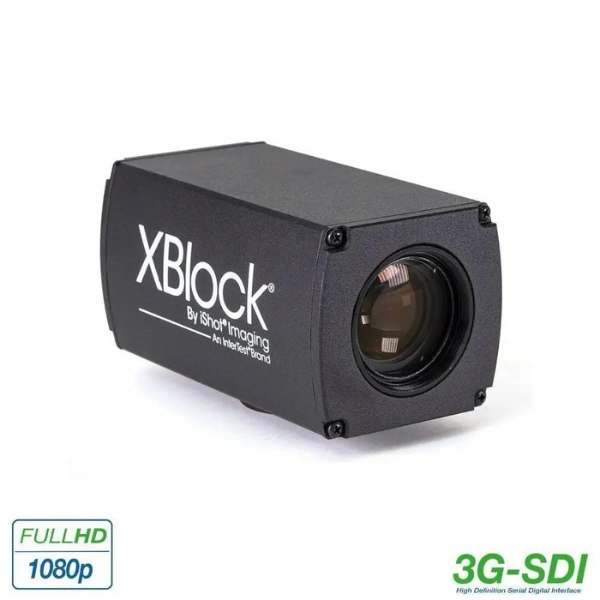

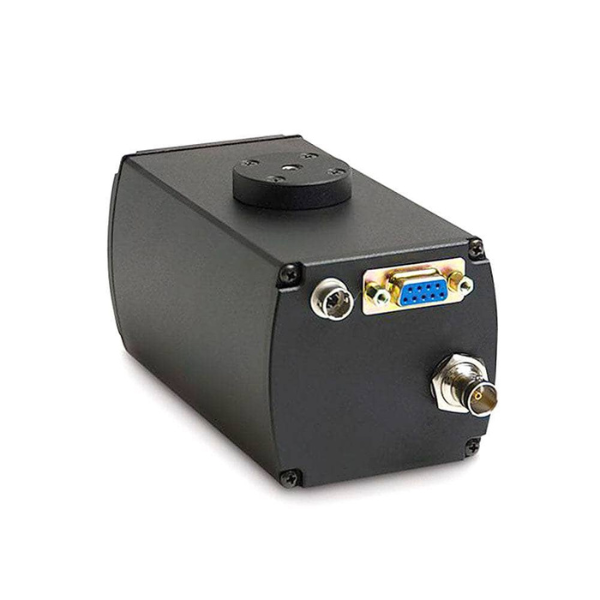

XBlock® FCB-EV7520 3G-SDI Full HD Indoor Zoom Camera
The integrated Sony FCB-EV7520 high sensitivity block camera with 30x zoom provides a 1/2.8" Exmor CMOS image sensor (approx. 2.14 million effective pixels) that supports 3G SDI and FULL HD (high definition) to produce high-quality images. In high sensitivity mode the camera can operate effectively in lighting levels as low as 0.01 lx (F1.6, AGC on, 1/30 s). Features include VISCA command protocol, Advanced Noise Reduction, Auto ICR, Spherical Privacy Zone Masking and Visibility Enhancer.

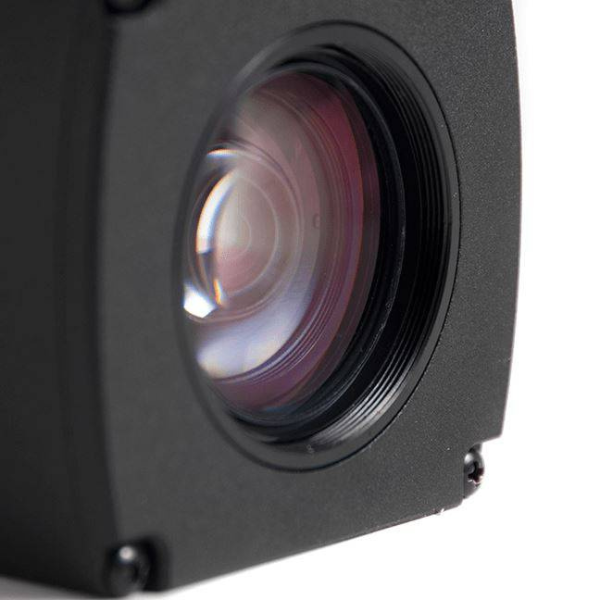

The Sony FCB-EV7520 block camera is equipped with a bright zoom lens with 30× optical zoom and F1.6 aperture (optical zoom + digital zoom = 360×).
Low-noise images can be obtained even in low-light environments using the Noise Reduction function.
The Sony FCB-EV7520 block camera's video signals can be output as digital and analog Y/Pb/Pr outputs. Depending on register settings, you can select from a variety of digital output methods: 1080p/59.94, 1080p/50, 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 720p/29.97, 720p/25.
An infrared (IR) Cut-Filter can be disengaged from the image path for increased sensitivity in low light environments. The ICR will automatically engage depending on the ambient light, allowing the Sony FCB-EV7520 block camera to be effective in day/night environment.
VISCA is a communications protocol, which enables the FCB-EV7520 to be controlled remotely from a host computer/controller. VISCA is trademark of Sony Corporation.
Specifications
|
Image Device
|
1/2.8-type CMOS
|
|
Effective Pixels
|
Approx. 2.13 Megapixels
|
|
Digital Zoom
|
12x (360x with optical zoom)
|
|
Horizontal Viewing Angle
|
63.7°(wide end) to 2.3°(tele end)
|
|
Minimum Object Distance
|
10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm)
|
|
Sync System
|
Internal
|
|
Electronic Shutter
|
1/1 s to 1/10,000 s, 22 steps
|
|
White Balance
|
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
|
|
Gain
|
Auto/Manual 0 dB to 50.0dB (0 to 28 steps +2 step/ total 15 steps); Max. Gain Limit 10.7 dB to 50.0 dB (6 to 28 steps +2 step/total 12 steps)
|
|
Wide Dynamic Range
|
No
|
|
Backlight Compensation
|
Yes
|
|
Privacy Zone Masking
|
Yes
|
|
Character Generator
|
20 characters/line, max. 11 lines
|
|
Focus System
|
Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on
|
|
Picture Effects
|
E-Flip, Nega Art, Black & White, Mirror image, Color enhancement
|
|
Exposure Control
|
Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
|
|
Lens Value
|
30x optical zoom; f=4.3mm (wide) to 129.0mm (tele); F1.6 to F4.7
|
|
S/N Ratio
|
More than 50 dB
|
|
Minimum Illumination
|
Color: 1.4 lx (F1.6, AGC on, 1/30 s); High Sensitivity Mode Color: 0.35 lx (F1.6, AGC on, 1/30 s)
|
|
Video Output
|
Digital: Y/CB/CR 4:2:2 via LVDS (Signal format conforms to SMPTE 274/SMPTE 296.) SD VBS
|
|
Camera Control Interface
|
VISCA (CMOS 5 V level; Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit
|
|
Dimensions (W x H x D)
|
50.0 x 60.0 x 89.7 mm
|
|
Weight
|
Approx. 260 g
|
|
Operating Temperature
|
-5 ℃ to +60 ℃
|
|
Storage Temperature
|
-20 ℃ to +60 ℃
|
|
Operating Humidity
|
20% to 80%
|
|
Power Consumption
|
3.2 W (zoom/focus inactive); 4.0 W (zoom/focus active)
|
|
Power Requirements
|
6.0 V to 12.0 V DC
|
InterTest, Inc. is an Authorized National Systems Integrator and Distributor for Sony’s Visual Imaging Products division.
Downloads
FCB-EV7520_Manual (2.38 MB)
