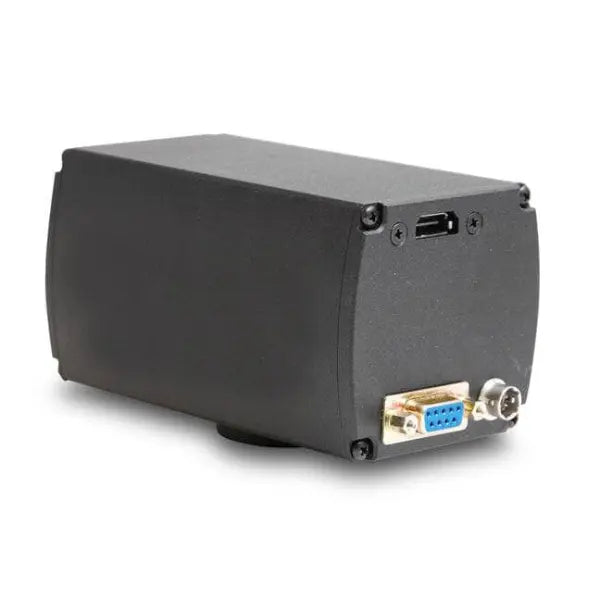

XBlock® FCB-EV7520 HDMI Full HD 30x Zoom Camera

XBlock Vendor Logo SKU: EM16464

• Low Light, Low Vision Camera
• Full HD 1920 x 1080 with 30x Zoom
• IP-66 Housing
• High sensitivity effective in lighting levels as low as 0.35 lx
• HDMI Output
• VISCA communications protocol

Description

Details

XBlock® FCB-EV7520 HDMI Full HD 30x Zoom Camera

The integrated Sony FCB-EV7520 is a low-light, high-sensitivty block camera with 30x zoom with a 1/2.8" Exmor CMOS image sensor (approx. 2.14 million effective pixels) that supports HDMI FULL HD (high definition). In its high sensitivity mode, the camera can operate effectively in lighting levels as low as 0.01 lx (F1.6, AGC on, 1/30 s). Features include the VISCA command protocol, advanced noise reduction, auto ICR, spherical privacy zone masking, and visibility enhancement.

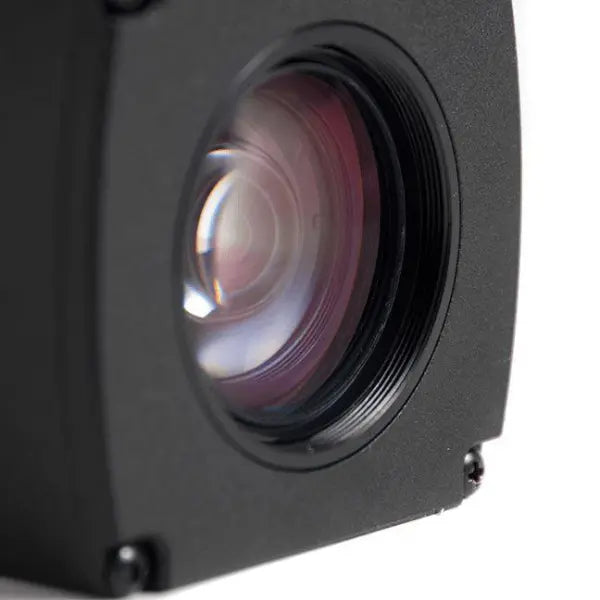

The Sony FCB-EV7520 block camera has a bright zoom lens with 30× optical zoom and F1.6 aperture (optical zoom + digital zoom = 360×).

The noise reduction function can easily obtain images in low-light environments.

The Sony FCB-EV7520 block camera's video signals can be output as digital and analog Y/Pb/Pr outputs. Depending on register settings, you can select from a variety of digital output methods: 1080p/59.94, 1080p/50, 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 720p/29.97, 720p/25.

An infrared (IR) cut-filter can be disengaged from the image path for increased sensitivity in low-light environments. The ICR will automatically engage depending on the ambient light, allowing the Sony FCB-EV7520 block camera to be effective in day/night environment.


Specifications

Image Device

1/2.8-type CMOS

Effective Pixels

Approx. 2.13 Megapixels

Digital Zoom

12x (360x with optical zoom)

Horizontal Viewing Angle

63.7°(wide end) to 2.3°(tele end)

Minimum Object Distance

10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm)

Sync System

Internal

Electronic Shutter

1/1 s to 1/10,000 s, 22 steps

White Balance

Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual

Gain

Auto/Manual 0 dB to 50.0dB (0 to 28 steps +2 step/ total 15 steps); Max. Gain Limit 10.7 dB to 50.0 dB (6 to 28 steps +2 step/total 12 steps)

Wide Dynamic Range

No

Backlight Compensation

Yes

Privacy Zone Masking

Yes

Character Generator

20 characters/line, max. 11 lines

Focus System

Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on

Picture Effects

E-Flip, Nega Art, Black & White, Mirror image, Color enhancement

Exposure Control

Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE

Lens Value

30x optical zoom; f=4.3mm (wide) to 129.0mm (tele); F1.6 to F4.7

S/N Ratio

More than 50 dB

Minimum Illumination

Color: 1.4 lx (F1.6, AGC on, 1/30 s); High Sensitivity Mode Color: 0.35 lx (F1.6, AGC on, 1/30 s)

Video Output

Digital: Y/CB/CR 4:2:2 via LVDS (Signal format conforms to SMPTE 274/SMPTE 296.) SD VBS

Camera Control Interface

VISCA (CMOS 5 V level; Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit

Dimensions (W x H x D)

50.0 x 60.0 x 89.7 mm

Weight

Approx. 260 g

Operating Temperature

-5 ℃ to +60 ℃

Storage Temperature

-20 ℃ to +60 ℃

Operating Humidity

20% to 80%

Power Consumption

3.2 W (zoom/focus inactive); 4.0 W (zoom/focus active)

Power Requirements

6.0 V to 12.0 V DC

Downloads


Sony FCB-EV7520 Technical Manual
