XBlock® Indoor IP52 XBC-KZ10 10x Zoom IP PoE

XBlock Vendor Logo SKU: EM14048

• 1/3” 2.1M Progressive CMOS Image Sensor that supports FULL HD
• 1080p/30, 1080p/25,720p/30, 720p/25
• Zoom lens with 10× optical zoom and F1.6 aperture
• Infrared Cut-Filter (ICR)
• IP-52 Housing
• H.264 output

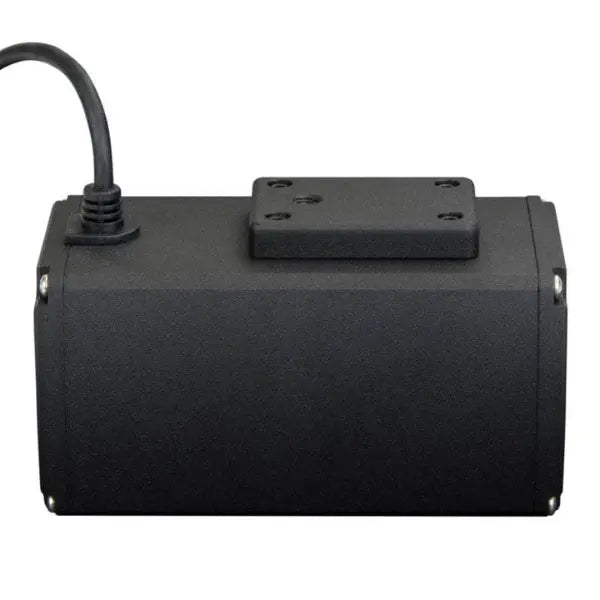

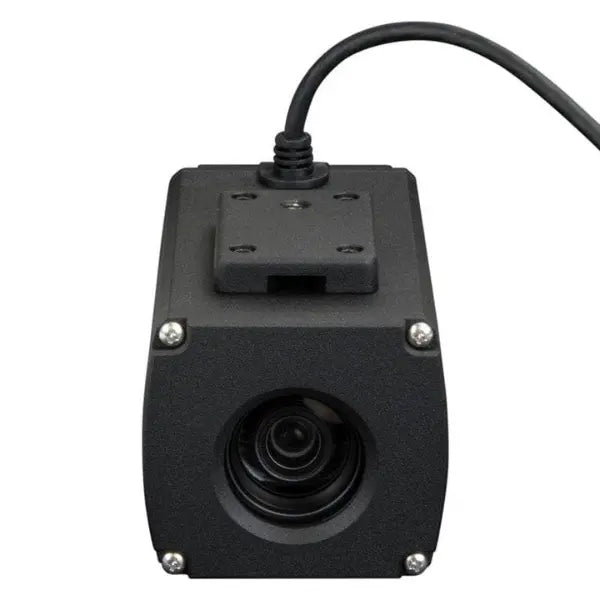

XBlock® Indoor IP52 XBC-KZ10 10x Zoom IP PoE

The XBlock® XBC-KZ10 IP/POE in Indoor Housing integrates the iShot® XBC-KZ10 block camera with a 48v PoE IP Ethernet connection in indoor housing. The iShot® XBlock® XBC-KZ10 Block Camera is a small 10x multi-output block camera ready to produce LVDS, HD-SDI, or CVBS video outputs.

The XBC-KZ10 Block Camera uses a 1/3" 2.1M Progressive CMOS Image sensor that produces high-quality FULL HD 1080p/60fps images. The sensor uses progressive scanning with a Wide Dynamic Range function to allow the camera to perform in dark and light environments. This, with low-noise imaging from the Noise Reduction function, gives the camera versatility to go along with high performance.

Other notable features are an automatic Infrared (IR) Cut-Filter for dark environments, motion detection, privacy zone masking, and in-picture text display.


Image Sensor

1/2.8”Exmor CMOS image sensor

Effective Pixels

2.38 million pixels (CVBS 760H)

Output Format

1080p/60,1080p/50,1080p/30, 1080p/25, 720p/30, 720p/25

Sync System


CVBS scale

16:9 / 4:3

LVDS mode

Single / Dual

Min. illumination Day

0.5 Lux @ F1.6

Night (IR-cut filter on)

0.1 Lux @ F1.6

S/N ratio(AGC off , DSS off)

More than 52 dB

Optical Lens

Zoom Magnification


Focal Length

5.1 to 51.0 mm


54.0°(W) ~ 4.9°(T)

Vertical Angle

31.0°(W) ~ 4.0°(T)

Diagonal Angle F-value

68.0°(W) ~ 6.7°(T)


F1.6(W ) ~ F1.8(T)


Auto / Manual / Interval / One

IR correction

Standard/IR Light

D&N mode

Auto / Day (Color) / Night (BW) / External-H / External-L

Night Color


White Balance

Auto / ATW / Indoor / Outdoor / Push / Manual

AE mode

Auto / Shutter Priority / Iris Priority/ Bright / Manual


1~ 20

AGC Limit

Off ~ 58dB

Manual Shutter

X32~x2,1/25(30)/1/50(60) ~ 1/30000

Manual AGC

Off ~ 58dB

Manual Iris

F1.2 ~ F19, Close


Off ~ 32fields


Menu OSD (English / Japanese / Russian / Spanish / German /France/ Portuguese)
