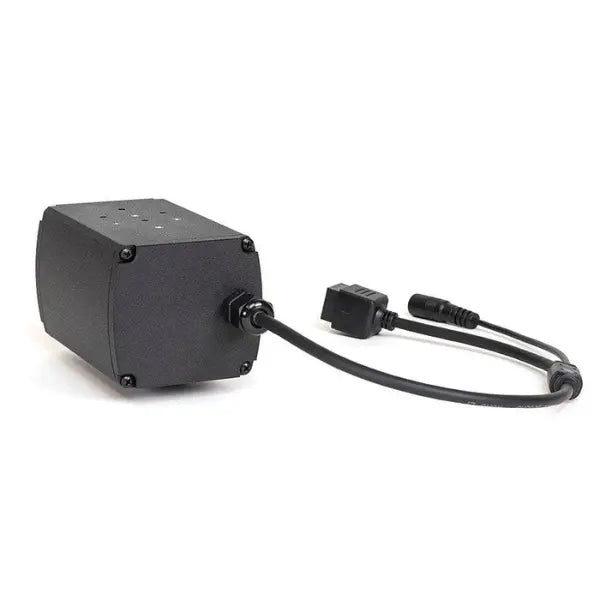

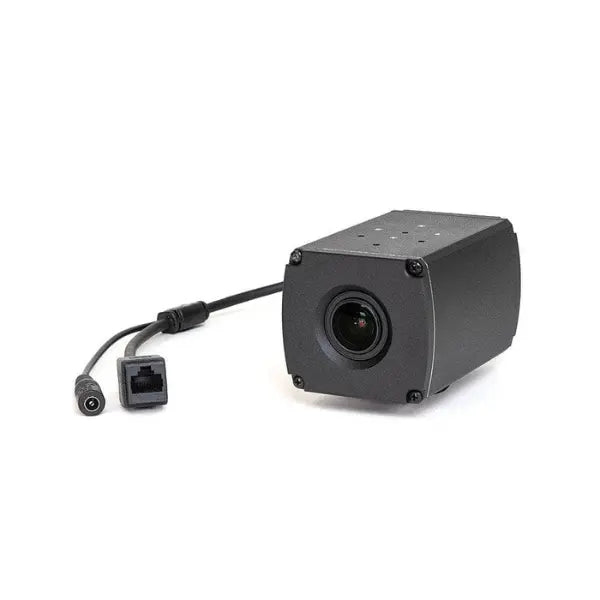

XBlock® IP POE 4K 12MP 3x Indoor Camera
This camera is a 12 megapixel motorized network camera module with a built-in web based viewer accessible by multiple browsers. This camera supports dual compression formats and triple streaming simultaneously. The three standard compression formats include H.265, H.264 and MJPEG. The streams can be configured to a variety of resolutions, bit rates and frame rates.
This is an IP-66 housed 12 Megapixel camera with a 3x optical zoom, 4K Streaming video, and POE.
The camera video modes available are as follows. 4000x3000(12M), 4096x2160(4K2K),2592x1944(5M), 2048x1536(QXGA), 1920x1080(Full-HD), 1280x1024(SXGA),1280x720(HD), 704x480(4CIF/NT), 704x576(4CIF/PAL), 640x480(VGA),352x288(CIF), 320x240(QVGA)
HTML5 is supported for web page configuration.
Protocols supported are as follows, TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UpnP, RTP, RTSP, RTCP, DHCP, ARP,
Zeroconf.
Optional onboard SD card for recording, as well as audio line in and out are supported.
Specifications
|
Focal Length |
4.06~10.02mm±5% |
|
F No. |
1.82~2.7±5% |
|
Image Format |
1/1.8” |
|
Dimension(mm) |
Φ46.79 x 44.92 mm |
|
Field of View |
H90° x V49.4° ~ H37.6° x V21.5° |
|
|
|
|
Image Sensor |
Sony IMX226CQJ-C 1/1.7” 12.76Megapixel RGB Bayer Array CMOS Sensor |
|
Number of Effective Pixels |
Mode 1/1.7(12M): 4,072(H) x 3,046(V) approx. 12.40M pixels 4:3 Mode 1/1.9(4K2K): 4,152(H) x 2,174(V) approx. 9.03M pixels 17:9 |
|
Scanning Mode |
Progressive Scan |
|
CAMERA |
|
|
Wide Dynamic Range |
DOL True-WDR |
|
Day and Night Mode |
Automatic, Day, Night, External |
|
Noise Reduction |
2D-NR, 3D-NR |
|
Auto Exposure Mode |
Automatic (Priority: Frame rate/Low noise), Manual |
|
Shutter Speed Control |
Automatic: Min. 1/135,000 sec ~ Max. 1/60 sec Manual: Min. 1/10,000 sec ~ Max. 1/10 sec |
|
Gain Control |
Automatic: Min. 1.2dB ~ Max. 54dB Manual: Min. 1.2dB ~ Max. 54dB, Default 1.2dB |
|
Auto White Balance Mode |
ATW-Indoor/Outdoor, Shade, Clear sky, Fluorescent light, Light bulb, Flame, Manual |
|
Auto Focus |
One Push, Manual, (Automatic) |
|
Optical Zoom |
Motorized 2.46x |
|
Optical Zoom Speed |
1~6 Steps |
|
Digital Zoom |
16x |
|
On Screen Display |
On/Off |
|
Back Light Compensation |
On/Off |
|
High Light Compensation |
On/Off |
|
Image Effect |
Mirror, Flip |
|
Privacy Mask |
Max.8 Area Selection |
|
Tamper |
On/Off |
|
Video Motion Detection |
Max.4 Area Selection |
|
Corridor Format |
90°/270° |
|
Defog |
On/Off |
|
Lens Distortion Compensation |
On/Off |
|
Digital Image Stabilization |
On/Off |
|
Video Content Analysis |
Line Cross / Field Intrusion / Appear / Disappear |
|
NETWORK |
|
|
Video Compression |
H.265 Main profile, H.264(High, Main, Base line profile), MJPEG |
|
Video Resolution |
4000x3000(12M), 4096x2160(4K2K),2592x1944(5M), 2048x1536(QXGA), 1920x1080(Full-HD), 1280x1024(SXGA), 1280x720(HD), 704x480(4CIF/NT), 704x576(4CIF/PAL), 640x480(VGA), 352x288(CIF), 320x240(QVGA) |
|
Video Frame Rate |
Up to 30fps@3840x2160p |
|
Video Streaming |
Simultaneously H.265 and MJPEG (Triple Streaming) or Simultaneously H.264 and MJPEG (Triple Streaming)Independent Frame Rate and Bandwidth Control, VBR/CBR Mode |
|
Audio Streaming |
Two way(G.711) |
|
FTP Uploading |
MJPEG Still Image |
|
Event In |
Onboot/Trigger/Network Loss/Tampering/Motion |
|
Event Out Notification |
E-mail, FTP |
|
Login Authority |
Administrator, Operator, Guest |
|
Event Buffering |
FTP : Pre/Post Event Time: 0~30sec, FPS: 1~2 fps |
|
Manual Trigger |
Still Image Capture |
|
Security |
Multi User Authority, IP Filtering, HTTPS |
|
Network Time Sync |
Synchronize Computer/NTP Server, Manual |
|
Software Reset |
Restart, Reset, Factory Default |
|
Auto Recovery |
Backup, Restore |
|
Remote Upgrade |
Using Web Browser |
|
Protocols |
TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UpnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf |
|
Client Software |
Built-In Web, ONVIF Compatible 3rd Party VMS |
|
Max. User Connection |
10 Users |
|
SDK Support |
API, ONVIF Profile S Compliant |
|
EXTERNAL IN/OUT |
|
|
Ethernet Tx/Rx |
RJ-45(10/100/1000Base-T) |
|
IR_LED Control |
IR_LED Control On/Off |
|
Day & Night Control |
IR_Cut_Filter Exchange |
|
Iris Control |
DC-Iris, Fixed |
|
Alarm Control |
Alarm-In 1/Alarm-Out 1 |
|
SD Card |
SDHC/SDXC |
|
Audio |
Line-In/Line-Out |
|
Zoom Control |
Max. 2.46x |
|
Focus Control |
One Push, Manual, (Automatic) |
|
NTSC/PAL |
NT/PAL composite Out |
|
USB |
USB 2.0 |
|
POWER |
DC +12V Input |
|
OPERATION ENVIRONMENTS |
|
|
Operating Humidity |
0~90% (non-condensing) |
|
Operating Temperature |
0℃~ +50℃ |
|
Power Supply |
DC12V |
|
Power Consumption |
7W(without IR_LED) |
|
Dimension |
42.0(W) x 42.0(D) x 7.3(H)mm |
|
Weight |
15g |
