XBlock® XBC-KZ10 Zoom Camera with LED's

iShot Cameras Vendor Logo SKU: EM13893

• 10x optical zoom & 12x digital zoom (120x total zoom)
• F1.6 aperture
• Ruggedized IP67 Housing
• Adjustable LED's
• VISCA communication protocol
• CVBS / TVI Output



XBlock® XBC-KZ10 Zoom Camera with LED's

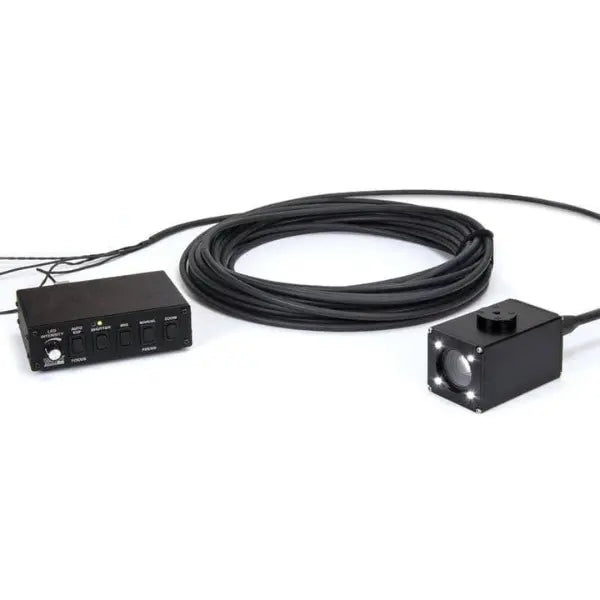

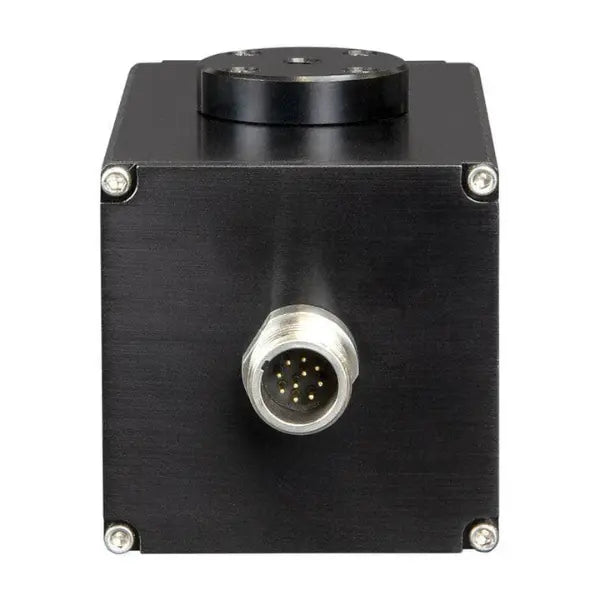

iShot® XBlock® Outdoor IP67 XBC-KZ10 Camera with 10x Zoom, with LED's - HD-TVI Out, is a 10x Zoom Camera with integrated lighting and control, through a 10 pin connector, using HD-TVI.

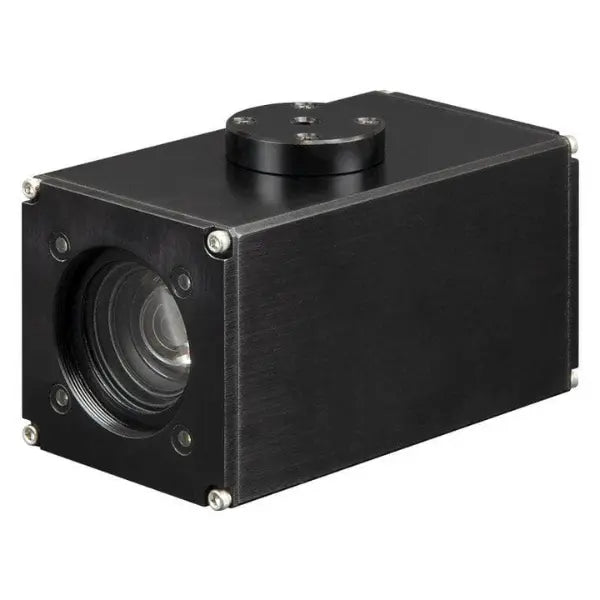

The XBC-KZ10 Block Camera is integrated into an anodized aluminum housing, for a lightweight, secure package. The XBC-KZ10 Block Camera uses a 1/3" 2.1M Progressive CMOS Image sensor that produces FULL HD 1080p/60fps high-quality images. The sensor uses progressive scanning with a Wide Dynamic Range function to allow the camera to perform in dark and light environments.

This with low-noise imaging from the Noise Reduction function give the XBC-KZ10 versatility to go along with high performance. Other notable features are an automatic Infrared (IR) Cut-Filter for dark environments, motion detection, privacy zone masking and in-picture text display.



Video System

Image Sensor

1/2.8”Exmor CMOS image sensor

Effective Pixels

2.38 million pixels (CVBS 760H)

Output Format

1080p/60,1080p/50,1080p/30, 1080p/25, 720p/30, 720p/25

Sync System


CVBS scale

16:9 / 4:3

LVDS mode

Single / Dual

Video Output


Min. illumination


0.5 Lux @ F1.6

Night (IR-cut filter on)

0.1 Lux @ F1.6

S/N ratio(AGC off , DSS off)

More than 52 dB

Optical Lens

Zoom Magnification


Practical f-value

5.1 to 51.0 mm

Practical Horizontal-Angle

54.0°(W) ~ 4.9°(T)

Practical Vertical Angle

31.0°(W) ~ 4.0°(T)

Practical Diagonal Angle

68.0°(W) ~ 6.7°(T)


F1.6(W ) ~ F1.8(T)


x1 ~ x120

Maximum Zoom Ratio

x1 ~ x10

Optical Zoom Ratio

x1 ~ x12

Digital Zoom Ratio


Digital Pan/Tilt

2.5 ~ 30 sec

Speed (Focus Tracking On)

2.0 sec


Auto / Manual / Interval / One

Control Mode

Push(=Zoom Trigger)

Focal Range

Infinity~ 1.0m(T)~0.01m(W)

IR correction

Standard/IR Light

Day & Night

D&N mode

Auto / Day (Color) / Night (BW) / External-H / External-L

Night Color


White Balance

Auto / ATW / Indoor / Outdoor / Push / Manual


AE mode

Auto / Shutter Priority / Iris Priority/ Bright / Manual


1~ 20

AGC Limit

Off ~ 58dB

Manual Shutter

X32~x2,1/25(30)/1/50(60) ~ 1/30000

Manual AGC

Off ~ 58dB

Manual Iris

F1.2 ~ F19, Close


Off ~ 32fields


Menu OSD (English / Japanese / Russian / Spanish / German /France/ Portuguese)
