Description
Details

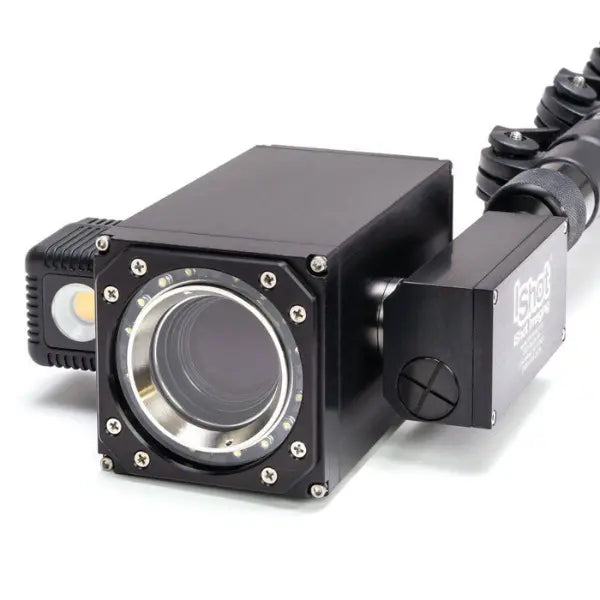

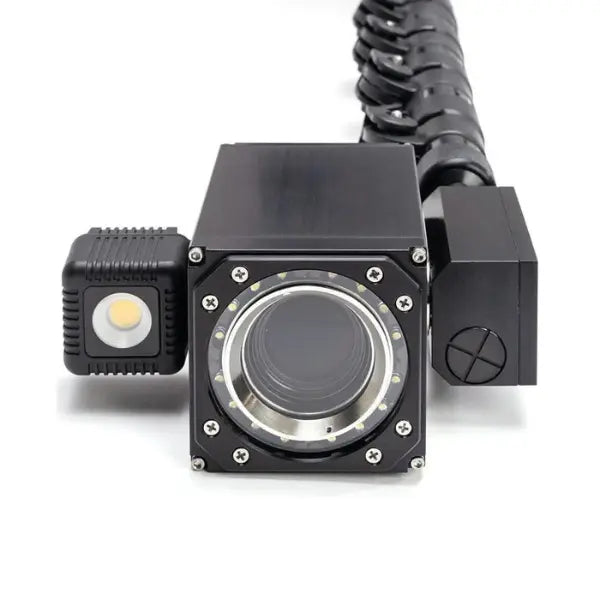

Quickly access and inspect out-of-reach targets up to 40 feet away with the iShot® Imaging XtendaCam® HD, 30x Zoom, designed specifically for viewing, illuminating, and recording inaccessible areas in minutes. The new slender, lightweight version of the XtendaCam® HD, 30x Zoom, boasts an HD 1080p30 camera in a waterproof housing attached to a motorized tilting mechanism. This allows the user to change the camera head's direction of view in a 320-degree range.
The XtendaCam® HD, 30x Zoom offers an integrated 30x zoom lens with quick auto-focus to capture out-of-the-way areas safely. Auxiliary LED lighting coupled with the camera's image processing gives the user a well-lit picture of targets up to 40 feet away. Camera functions and lighting are controlled via buttons on the XtendaCam® HD handle.

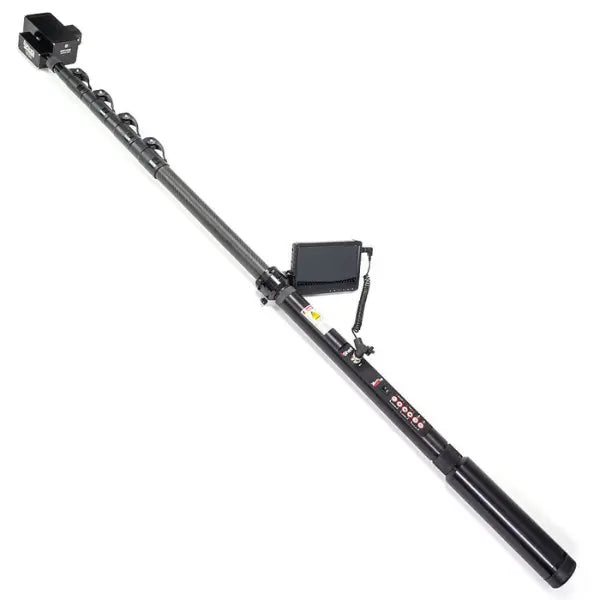

The telescoping XtendaCam® HD, 30x System is ideal for capturing high-quality video/images in difficult-to-reach applications, such as snubber Inspection, bridge structure inspections, transportation inspections, viewing inaccessible cavities, and viewing over walls, roofs, and around corners. This system was designed for but not limited to highways and bridge structures, security/surveillance, law enforcement, military, mines, petrochemical refineries, and power generation facilities.
Specifications
| Image Sensor | 1/2.8” Exmor CMOS image sensor |
| Effective Pixels | 2.38 million pixels |
| Output Format | 1080p30 |
| Sync Systems | Internal |
| Aspect Ratio | 16:9 |
| Video Output | HD-TVI |
| Practical f-value | 4.6 - 152mm |
| Horizontal Angle | 60.08°(W)~2.08(T) |
| Vertical Angle | 35.32°(W)~1.18°(T) |
| F-Value | F1.6(W ) ~ F4.8(T) |
| Max Zoom Ratio | 1x-390x |
| Optical Zoom Ratio | 1x-33x |
| Digital Zoom Ratio | 1x-12x |
| Focus Control Mode | Auto, Manual |
| Exposure | Auto |

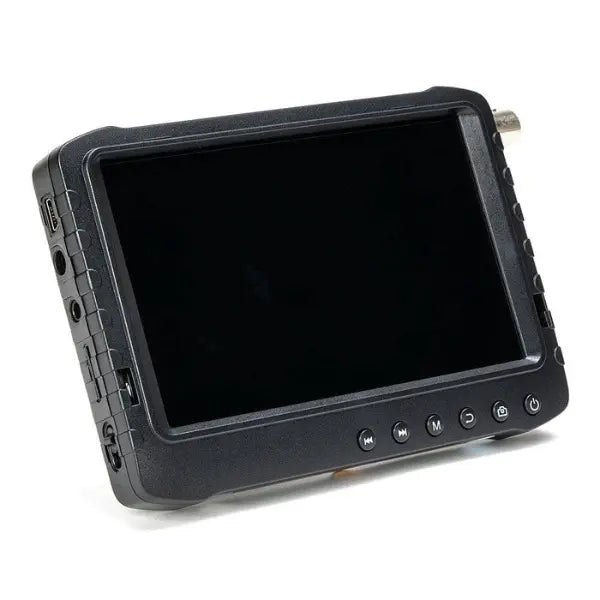

| Display | 7" LCD |
| Storage Media | SD Card |
| Battery Life | 2 Hours |
| Shipping Weight | 45 lbs |
| Shipping Dimensions | 62" x 12" x 5 |
