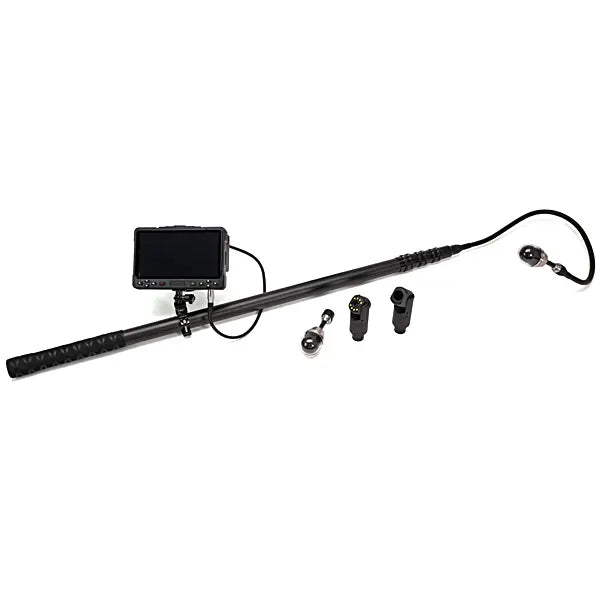

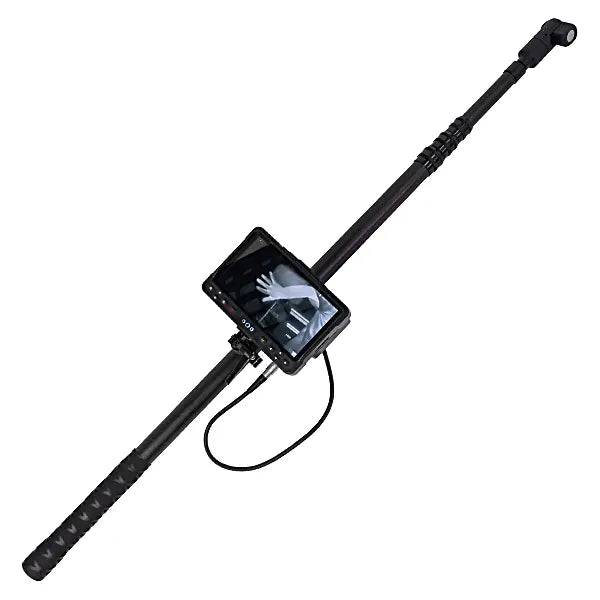

Discover the XtendaCam® HD PT Series, a modular remote visual inspection (RVI) system suited for out-of-reach inspections. Crafted from lightweight carbon fiber, this telescopic pole camera system offers mobility and quick deployment for on-site inspections. Capable of extending up to 4 meters, it efficiently accesses hard-to-reach areas, making ladders, lifts, and scaffolds a thing of the past. This innovation allows for single-operator inspections, significantly enhancing efficiency and reducing costs.
The XtendaCam® HD PT Series excels in a variety of settings, from public safety to facility inspections, and snubber inspections in power generation and other industrial environments. Its design is intuitive, meeting and surpassing the professional requirements found in diverse applications.
The InterTest XtendaCam® brand is dedicated to enhancing inspection processes with cutting-edge, supportive tools tailored to specific industry needs. As part of the XtendaCam® family, the PT Series Telescopic Pole Camera System embodies reliability, performance, and a user-focused design, empowering professionals to achieve superior inspection results with ease.
Specifications
|
Monitor |
|
|
Size |
7 inches |
|
Resolution |
1920 x 1080 pixels |
|
Display Frame Rate |
25 fps |
|
Display Function |
White Hot , Black Hot, False Color |
|
Video Output |
Manual Selection, NTSC / PAL Output |
|
Video Input |
Automatically Identify NTSC / PAL Standard S-Video (Analog Signal) |
|
Storage Card |
128 G |
|
Power Adapter |
100 - 240 ~ 50/60 HZ 12V/1A |
|
Image Format |
1280 x 720 JPG |
|
Picture Manipulation |
3x Magnification |
|
Video Format |
AVI 1280 x 720 |
|
Operating Hours |
Single Battery > 4 hours Dual Battery > 8 hours |
|
Operating Temperature |
-25 ~ 55° C |
|
Storage Temperature |
-25 ~ 55° C |
|
Waterproof Level |
IP65 |
|
35 mm White Light Camera |
|
|
Lens Diameter |
35 mm |
|
Resolution |
1920 x 1080 |
|
Image Resolution |
1080 pixels |
|
Probe Field of View |
Horizontal > 45° Vertical > 45° |
|
Flip |
120° |
|
Rotation |
360° |
|
Image Distance |
Maximum >15 meters, Minimum <0.5 meters |
|
Operating Temperature |
-25 ~ 55° C |
|
Storage Temperature |
-25 ~ 55° C |
|
Waterproof |
IP68 |
|
Telescopic Pole |
|
|
Material |
Carbon Fiber |
|
Expansion Length |
0.9 to 4 meters |

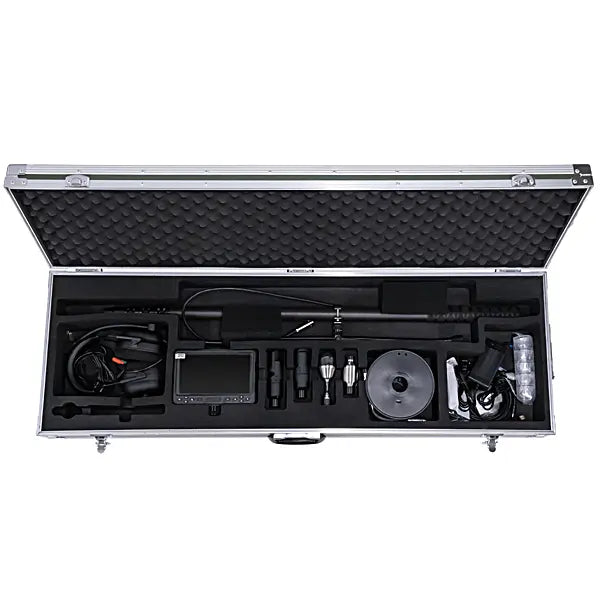

Items Included
EM10452 - XtendaCam® HD PT Series Telescopic Rod
EM10451 - XtendaCam® HD PT Series 35mm White Light Camera Head

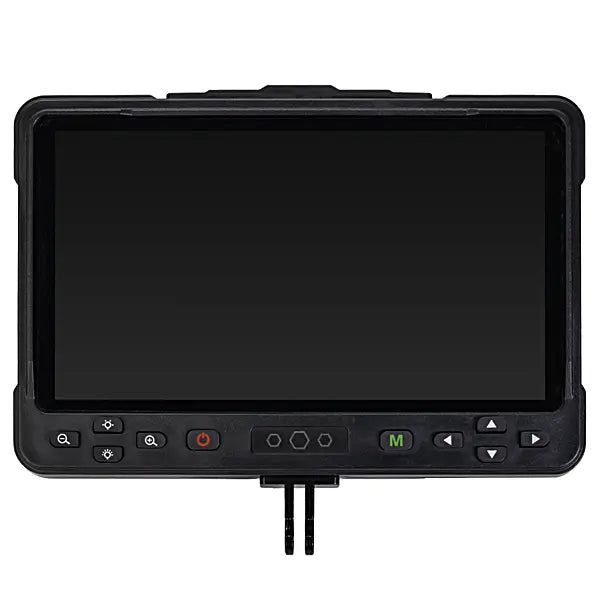

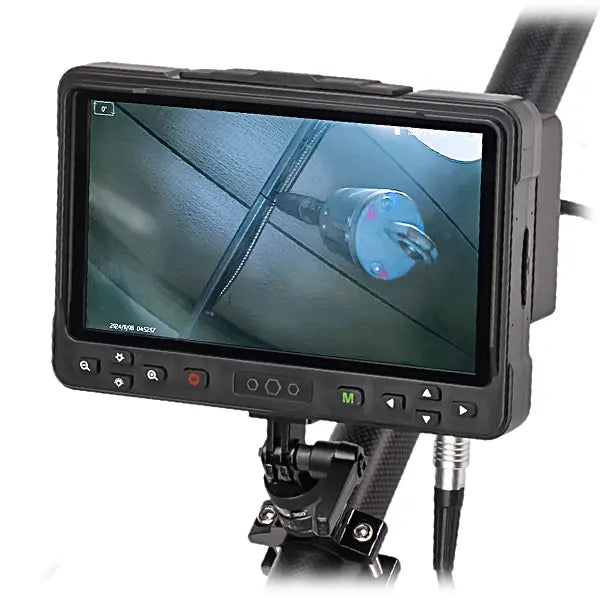

EM10450 - iShot® Imaging Controller & Monitor

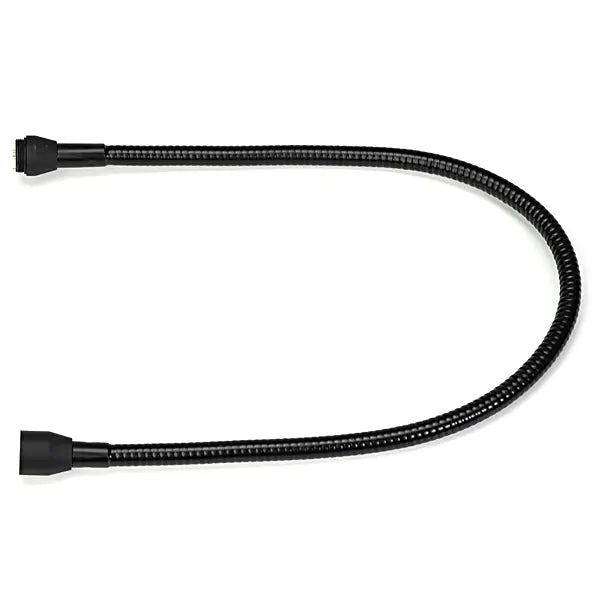

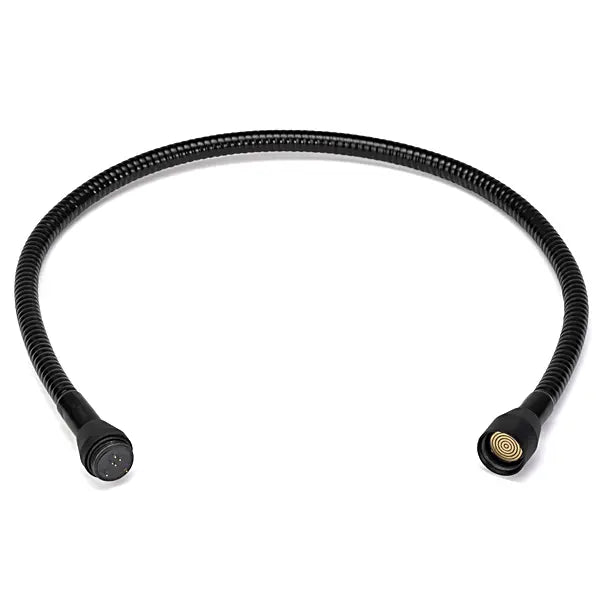

EM10462 - XtendaCam® HD PT Series 40 cm Flexible Camera Extender

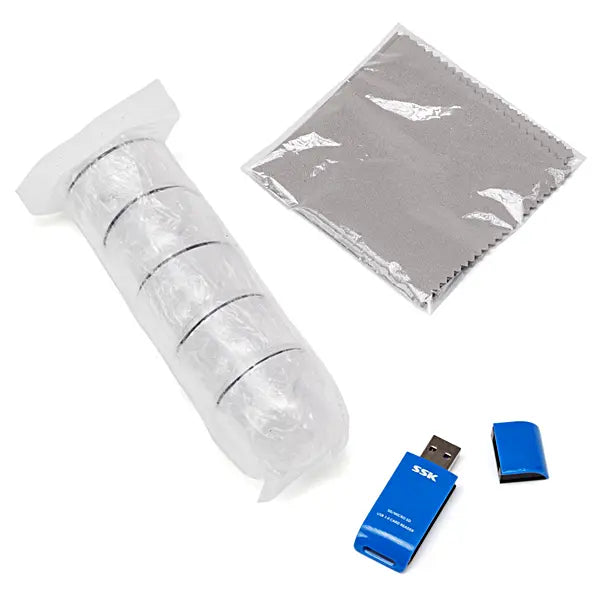

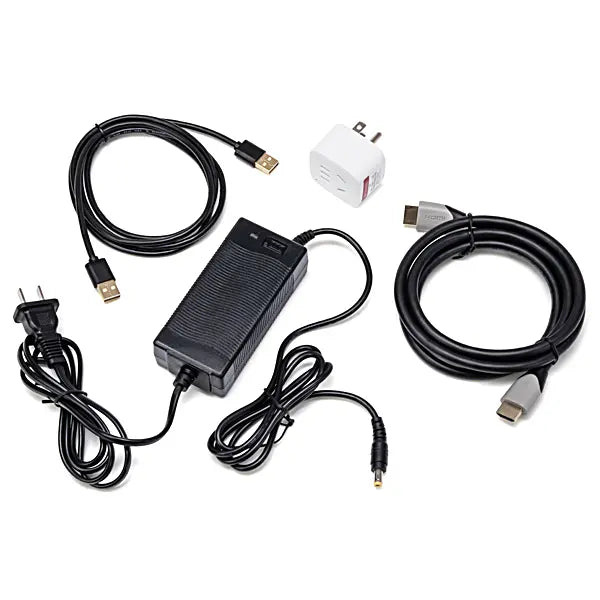

Case and Accessories
Other Compatible Components
EM10458 - XtendaCam® HD PT Series 35mm Infrared Camera Head
EM10460 - XtendaCam® HD PT Series 24mm Infrared Camera Head

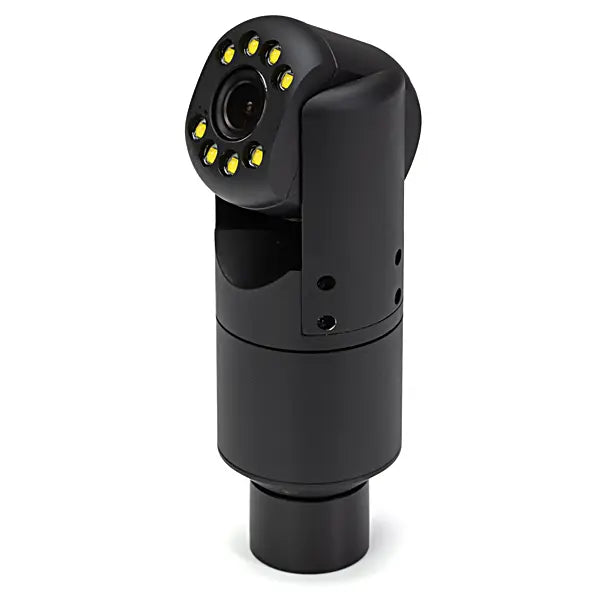

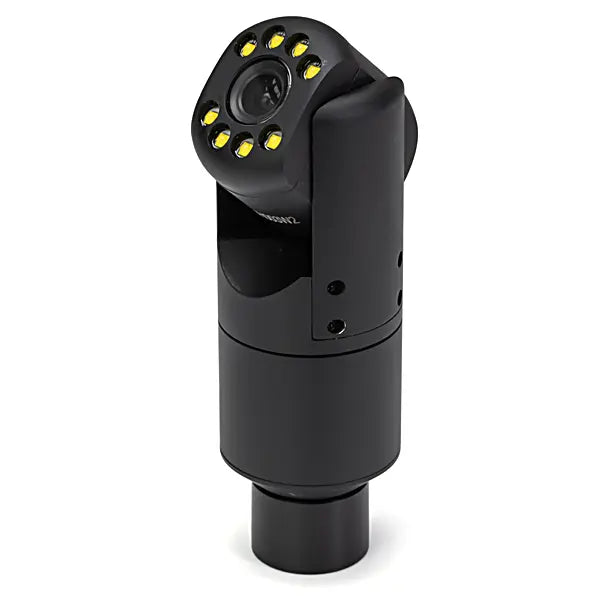

EM10484 - iShot® Imaging 41mm 1MP Pan & Tilt Camera Head
EM10485 - iShot® Imaging 24 mm 1MP White Light Camera Head
EM10455 -iShot® Imaging 41mm 2MP Pan & Tilt Camera Head
EM10459 - iShot® Model IX Push 24mm 2 MP Camera
Downloads
Coming Soon!
