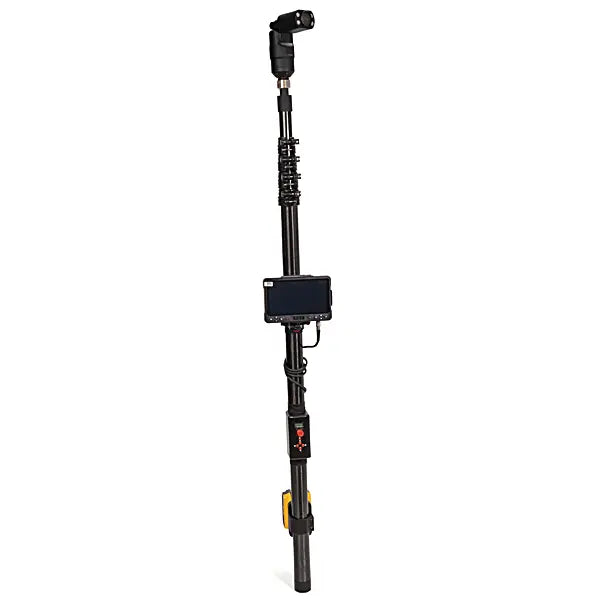

The XtendaCam HD PTZ60 Telescopic Camera Kit is a pole camera system that extends from 1.4 meters up to 5 meters in length. Weighing less than 7 pounds, this inspection system is ideal for reducing the need for equipment like scaffolding or ladders making a faster and safer inspection process. This pole camera system can be utilized to inspect snubbers, amusement park rides or in deep vessels. It is also tailored for industries like public safety, power generation, and construction.

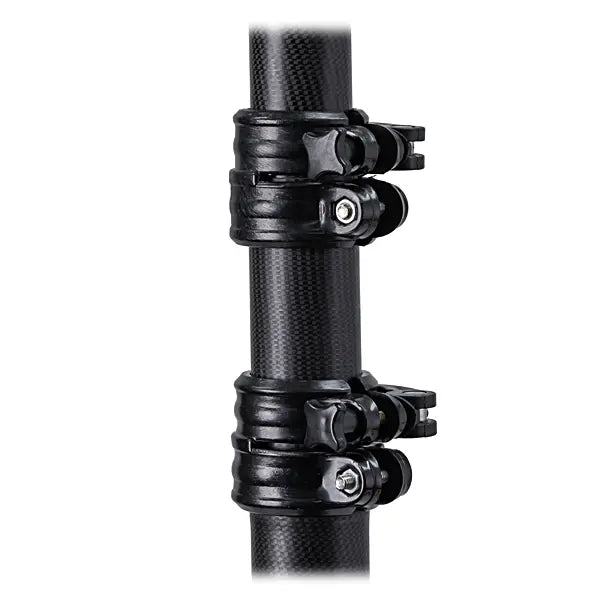

The full HD camera image and 4 high quality LEDs provide clarity for detailed inspections in difficult areas. The 66mm color camera offers 360° rotation and about 110° of tilt in either direction to offer maximum visual coverage. The lightweight carbon fiber pole can be easily shortened to 1.4 meters for easier transport.

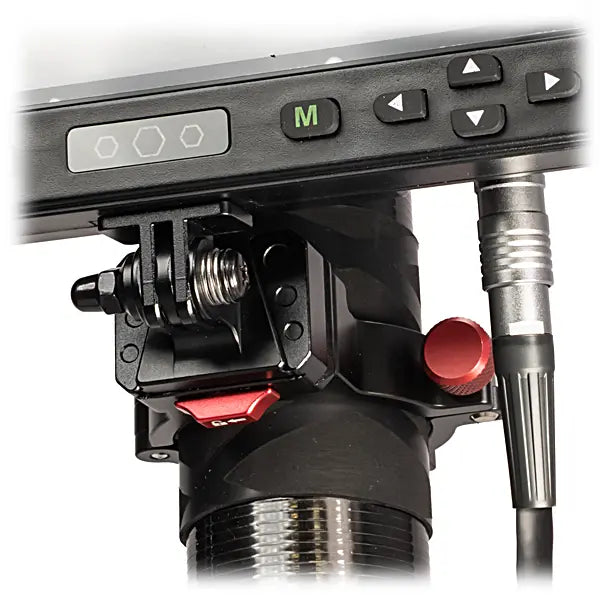

The intuitive 7 inch LCD touchscreen monitor has a high definition display, features capacitive touch functioning and weighs less than a pound. The monitor supports up to 10 times live image magnification, manual focus, and adjustable screen brightness making this system suitable for indoor and outdoor environments. This product features a 3-hour battery life and 64G of storage, providing inspectors with optimal conditions for conducting thorough inspections with detailed documentation.
Specifications
|

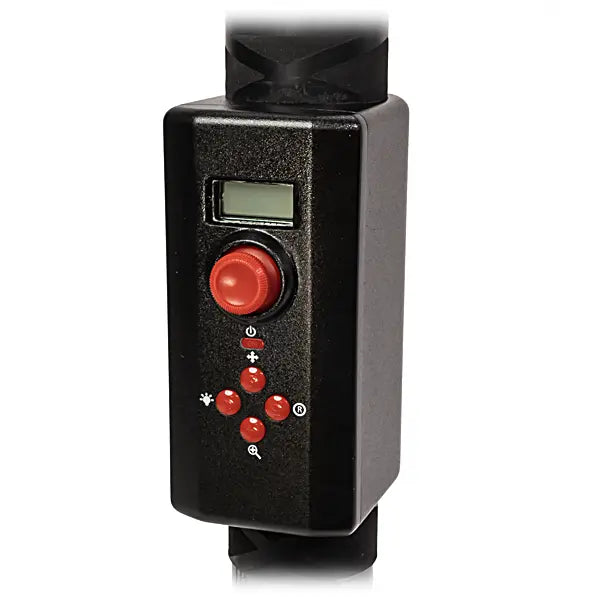

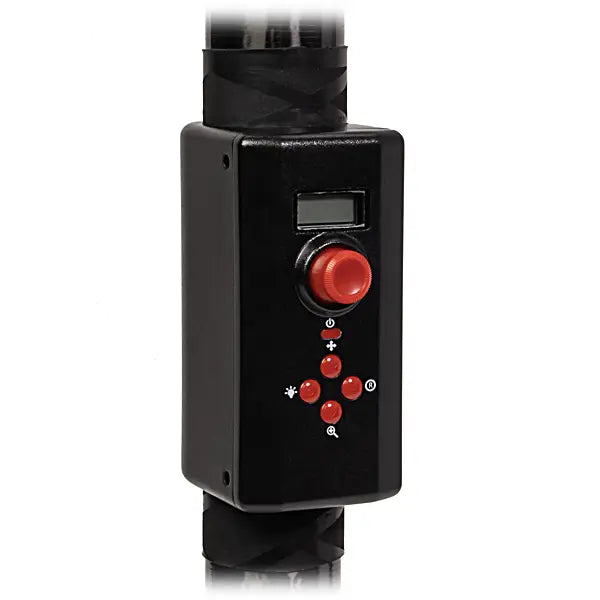

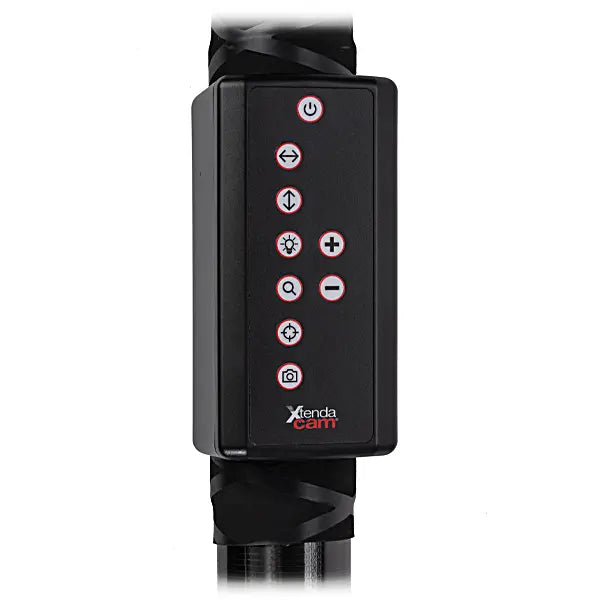

Controller & Software Operation |
|
|
Controller Size |
121.4 x 179 x 43.6 mm |
|
Controller Weight |
0.4 kg |
|
LCD Display |
7-inch LCD Display |
|
Touchscreen |
Capacitive Touch Screen |
|
Resolution |
1920 x 1080 pixels |
|
Display Frame Rate |
30 Frames/ second |
|
Screen Brightness |
Adjustable 400 cd/m² |
|
USB Interface |
USB 2.0 data transfer |
|
White Balance |
Manually Adjustable |
|
Video Output |
Manually Adjustable |
|
Storage Card |
64 G |
|
Image Preview Magnification |
3 times |
|
Live Image Magnification |
10 times |
|
Lighting Control |
10 levels of brightness adjustment |
|
Image Format |
JPEG 1920 x 1080 pixels |
|
Video Format |
ASF 1920 x 1080 pixels |
|
Language |
16 Languages |
|
Color Rotation Camera |
|
|
Lens Diameter |
66 mm |
|
Lens Length |
70 mm |
|
Pixel |
2 MP |
|
Illumination |
4 High-Brightness LED Lights |
|
Housing Material |
Aluminum |
|
Radial Flip |
±110° |
|
Axial Rotation |
360° |
|
Depth of Field (DOF) |
0.5 ∼ ∞ |
|
Image Sensor |
CMOS |
|
Waterproof Standards |
IP65 |
|

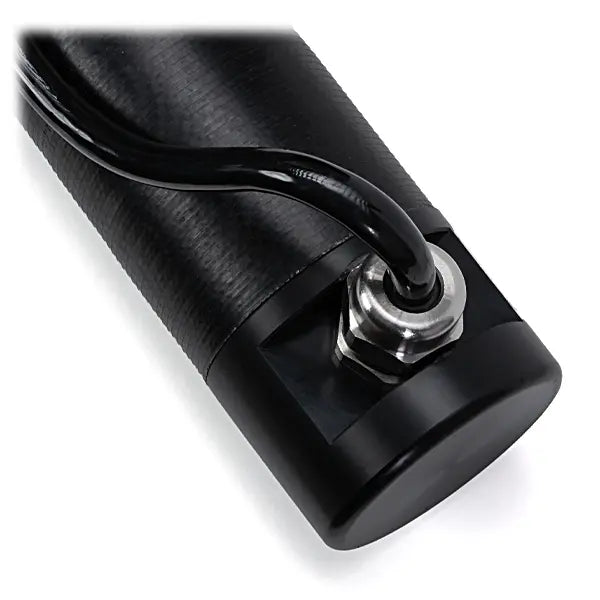

Telescopic Pole |
|
|
Telescopic Rod Contraction Length |
1.4 meters |
|
Telescopic Rod Expansion Length |
5 meterss |
|
Telescopic Pole Material |
Carbon Fiber |
|
Weight |
3 kg (including battery, camera, controller) |
