Yateks B+ Benchtop Series Rigid Borescope System

SKU: EM17148-00IT

• 3-50 mm Depth of Focus
• 90° Field of View
• Resolution: 640 x 480
• Slip Ring on 90º (DOV) for Continuous Orbital Inspection

Diameter: 2.2 mm
Length: 3" (76.2 mm)
Direction of View: 0º (Direct)
:
Login to see prices

Intertest Cost

Details

Yateks B+ Benchtop Series Rigid Borescope System

The Yateks B+ Benchtop Series is a rigid, "video-wand" borescope system with a unique configuration for automotive, aerospace, and other components that may require repeatable, reliable inspections.  The rigid form factor of the probes allows for easy insertion into specified inspection bores on components of different sizes.

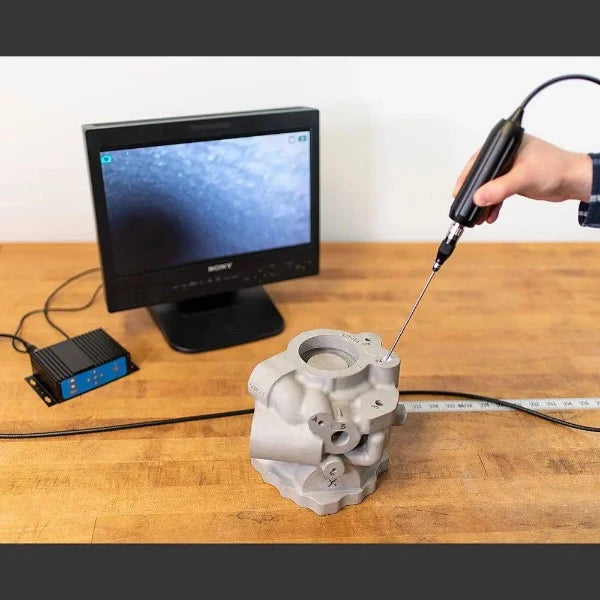

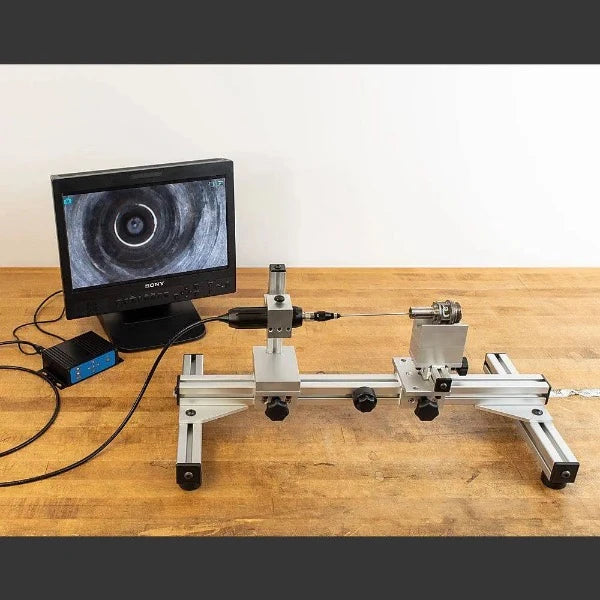

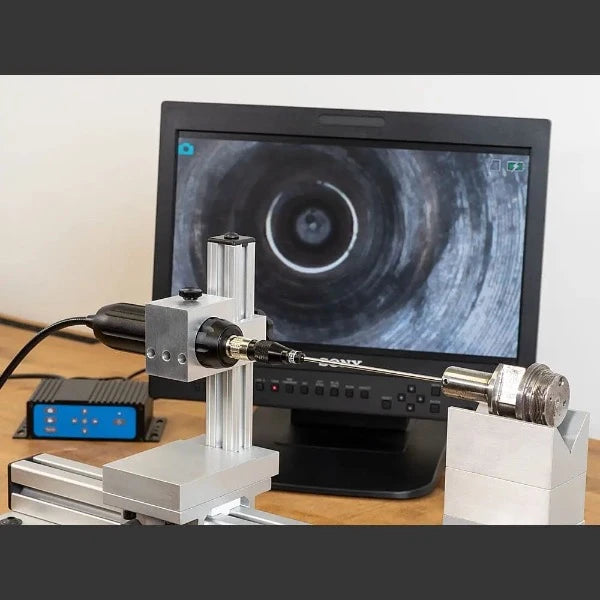

Ideal for benchtop environments, the Yateks B+ Benchtop Rigid Video Borescope System allows for a variety of tips with different available diameters, lengths, and directions of view (DOV). The B+Benchtop Series probes are versatile and compatible with both the benchtop and portable controllers.

Need Base Unit and/or Handle?

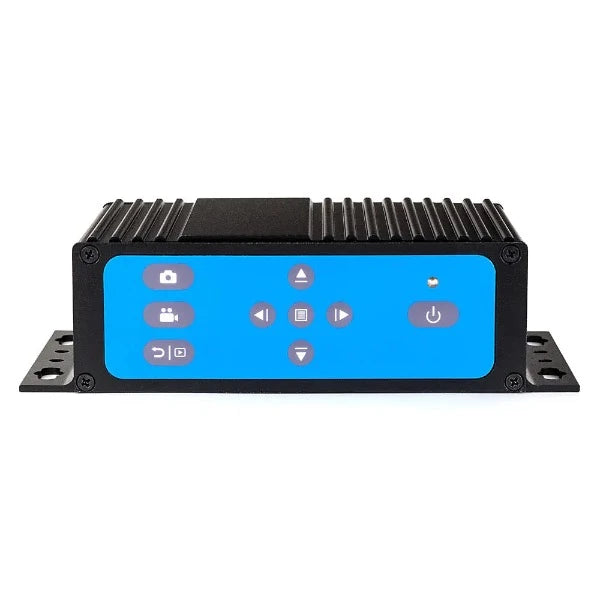

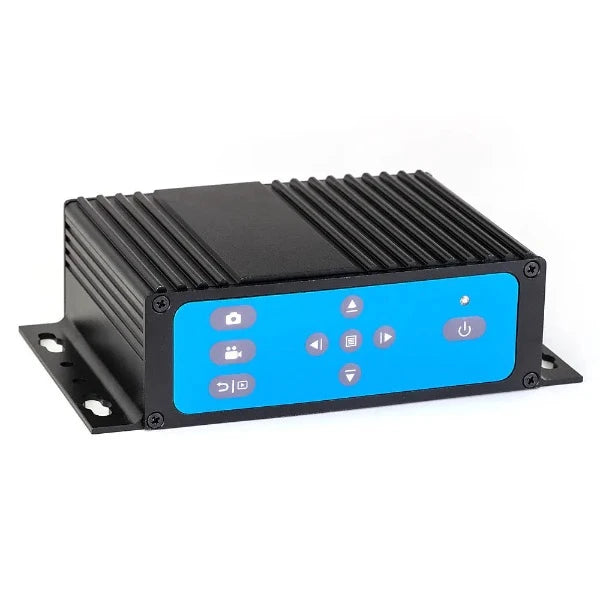

 R Series Controller  B+ Benchtop Desktop Controller
R Series Portable Controller  B+ Portable Handset Controller
R Series Handle B+ Benchtop/Portable Series Video Borescope Handset



Specifications

White Balance AWB
Internal storage Micro SD Card (32gb)

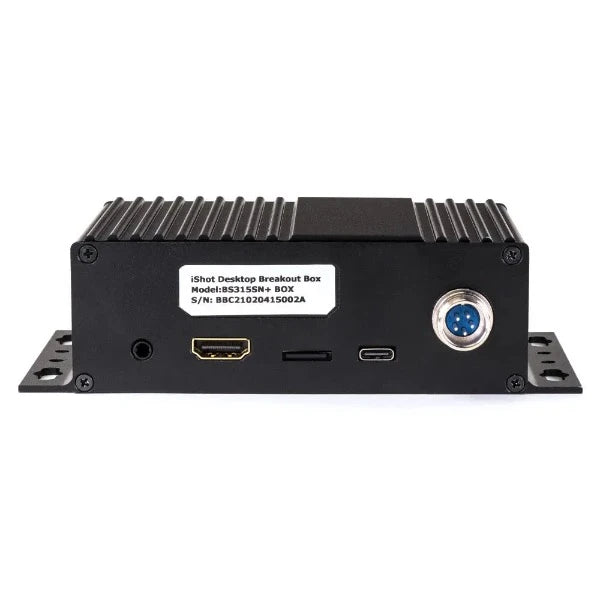

Data I/O port SD card interface, HDMI, USB interface
Brightness Control 3 degree brightness adjustment
Battery 18650 lithium batteries(replaceable)
Standby time ≥6h
File management Support image and video play, delete, format and naming
Image format JEPG(record the date and time)
Video format AVI (record the date and time)
Signal Output HDMI
Language Chinese, English, Spanish, French, German, Russian, Japanese, Korean
Probe dimension 2.2 mm , 2.8mm, 3.0 mm(side view)
Insertion tube type Flexible
Insertion tube material stainless steel
Resolution 450,000 pixels
DOF 3mm-50mm
Angle of view 90°
System work temperature -10°C~50°C
Probe work temperature -10°C~60°C
Waterproof grade Probe IP67



Videos

Product Demonstration

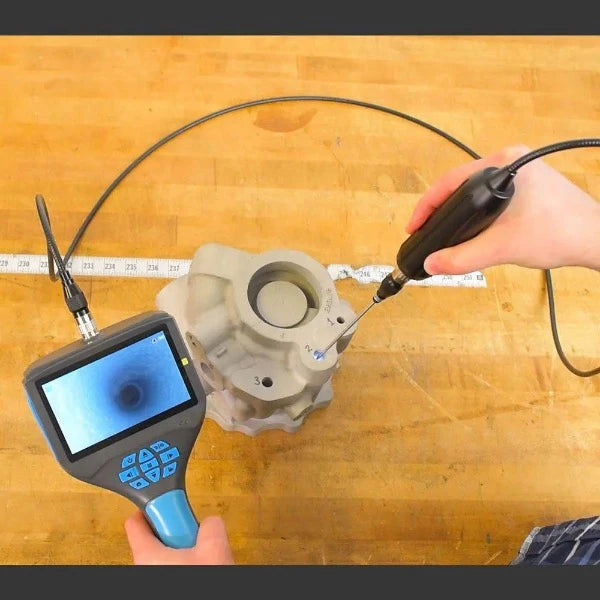

Quick Clip of 0º probe, automotive casting

Quick Clip of 90º probe, automotive casting

 Downloads

Product Specification Sheet
