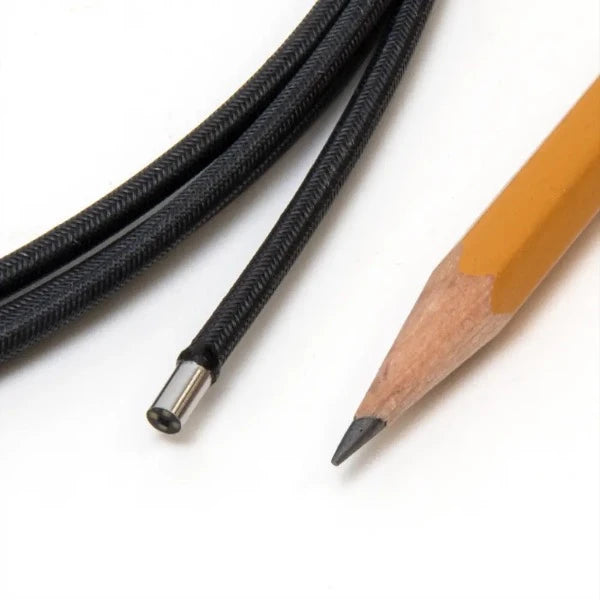

• 2.8 mm Outer Diameter • Direct View • 3-50 mm Depth of Focus • 90° Field of View • 5-inch Screen • Resolution: 640 x 480

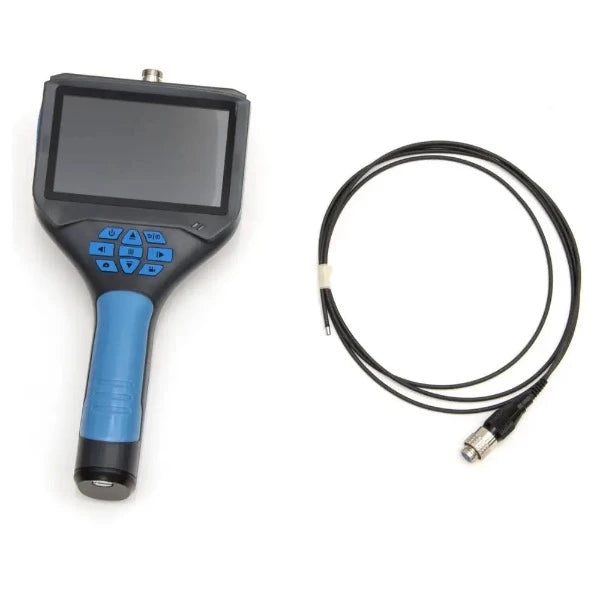

The Yateks B+ Portable series industrial videoscope is a compact system that packs a punch. It features high resolution at over 300,000 total pixels and utilizes an advanced lens set that generates a stunning, clean image. The unit possesses a strong 3000 lux illumination output required in many casting and tubing applications.
Its simple, intuitive operation and lightweight design make it the tool of choice for quick and portable visual inspections in a wide range of industrial parts and processes, particularly those involving tighter space constraints. This includes engines, cylinders, pipes, castings, foreign matter inside containers, wear inspection, and much more.
Display
5" IPS Wide Viewing Angle Screen
White Balance
AWB
Function
Photography, video, brightness control, image zoom, image freeze, image locking and image flip
Internal storage
TF card (up to 32GB)
Data I/O port
SD card interface, HDMI, USB interface
Brightness Control
3 degree brightness adjustment
Battery
Two rechargeable 18650 lithium ion batteries
Standby time
≥6h
File management
Support image and video play, delete, format and naming
Image format
JEPG (record the date and time)
Video format
AVI (record the date and time)
Signal Output
PAL & NTSC
Language
Chinese, English, Spanish, French, German, Russian, Japanese, Korean
Probe dimension
2.2mm, 2.8mm, 3.0mm (side view)
Insertion tube length
2.2mm / 1-1.5m; 2.8mm and 3mm / 1-3m
Insertion tube type
Flexible
Insertion tube material
Tungsten braid or stainless steel option
Resolution
640 x 480
DOF
3mm~50mm; 5-50mm
Angle of view
120°
System work temperature
-10°C~50°C
Probe work temperature
-10°C~60°C
IP Rating
Probe IP67
B+ Portable Series Product Specification Sheet
