Yateks B+ Portable Series Industrial Videoscope 3 mm OD Side View w/ Slip Ring

Yateks USA Vendor Logo SKU: EM15967

• 3 mm Outer Diameter
• Side View
• 3-50 mm Depth of Focus
• 120° Field of View
• 5-inch Screen
• Resolution: 640 x 480

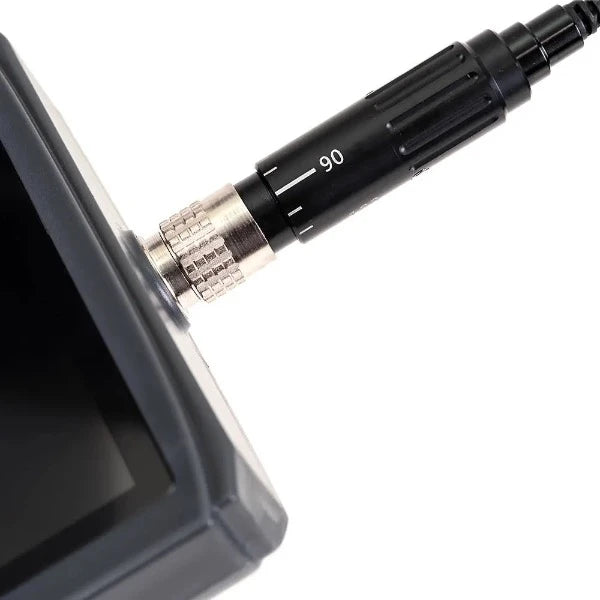

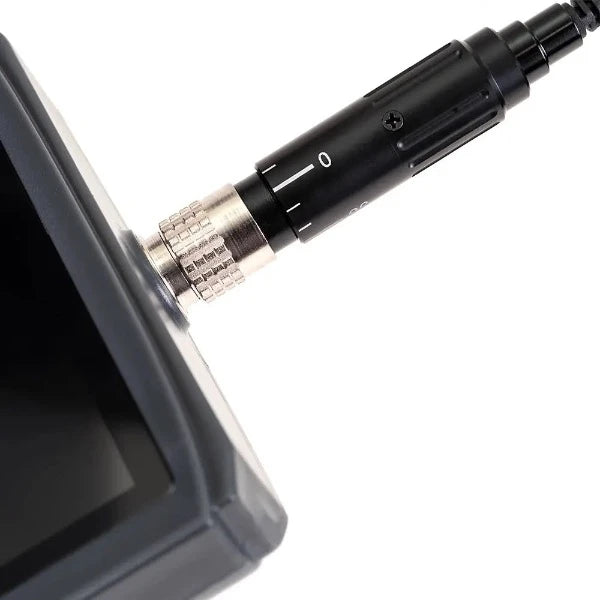

• Slip Ring for Continuous Orbital Inspection

Yateks - Length: 1 m (3.280')

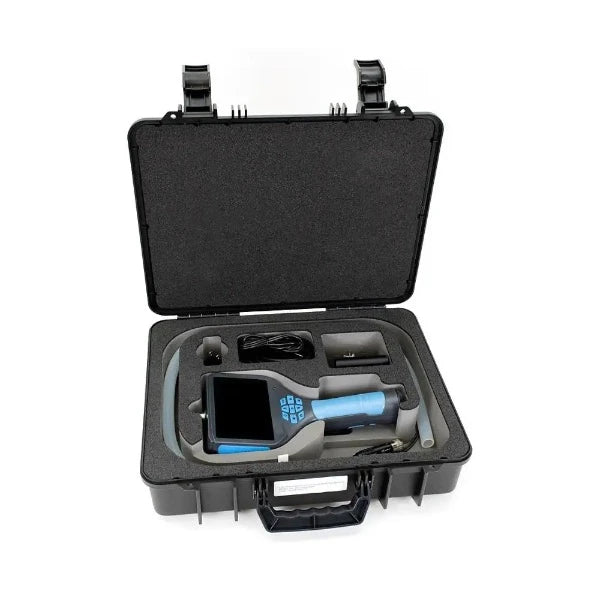

Kit: Full System

Description

Details

Yateks B+ Portable Series Industrial Videoscope 3 mm OD Side View w/ Slip Ring

The Yateks B+ Portable series industrial videoscope is a compact system that packs a punch. It features high resolution at over 300,000 total pixels and utilizes an advanced lens set that generates a stunning, clean image. The unit possesses a strong 4000 lux illumination output required in many casting and tubing applications.

Its simple, intuitive operation and lightweight design make it the tool of choice for quick and portable visual inspections in a wide range of industrial parts and processes, particularly those involving tighter space constraints. This includes engines, cylinders, pipes, castings, foreign matter inside containers, wear inspection, and much more.

Specifications

Display

5" IPS Wide Viewing Angle Screen

White Balance

AWB

Function

Photography, video, brightness control, image zoom, image freeze, image locking and image flip

Internal storage

TF card (up to 32GB)

Data I/O port

SD card interface, HDMI, USB interface

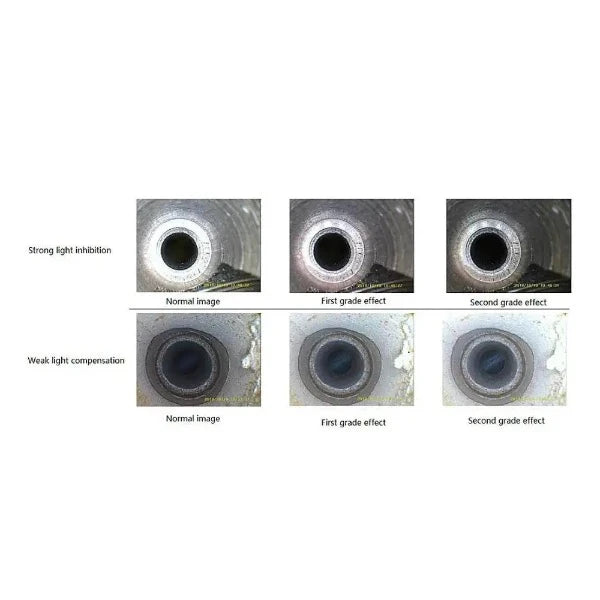

Brightness Control

3 degree brightness adjustment

Battery

Two rechargeable 18650 lithium ion batteries

Standby time

≥6h

File management

Support image and video play, delete, format and naming

Image format

JEPG (record the date and time)

Video format

AVI (record the date and time)

Signal Output

PAL & NTSC

Language

Chinese, English, Spanish, French, German, Russian, Japanese, Korean

Probe dimension

2.2mm, 2.8mm, 3.0mm (side view)

Insertion tube length

2.2mm / 1-1.5m; 2.8mm and 3mm / 1-3m

Insertion tube type

Flexible

Insertion tube material

Tungsten braid or stainless steel option

Resolution

640 x 480

DOF

3mm~50mm; 5-50mm

Angle of view

120°

System work temperature

-10°C~50°C

Probe work temperature

-10°C~60°C

IP Rating

Probe IP67

Downloads

Yateks B+ Portable Series Product Sheet
