Yateks G Series Benchtop Camera Control Unit

Details

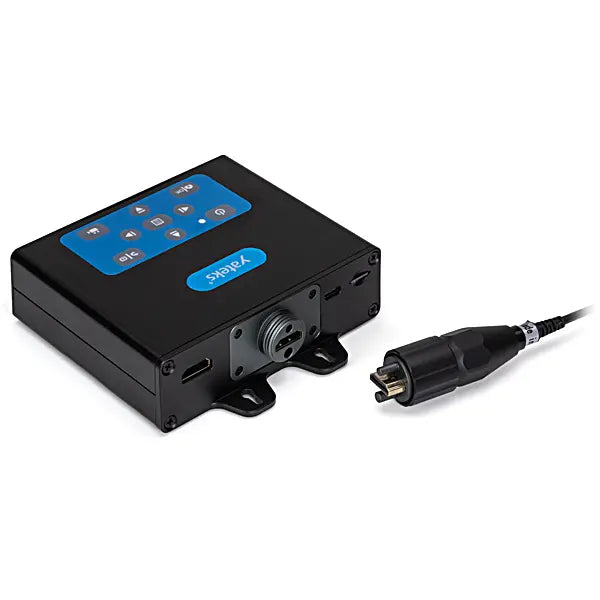

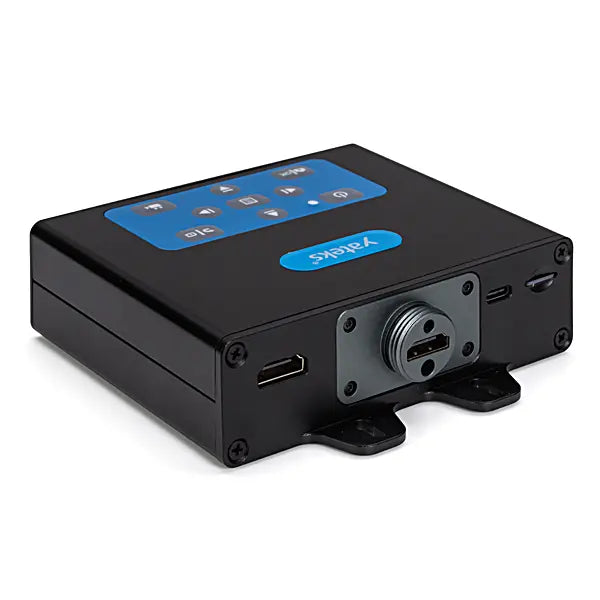

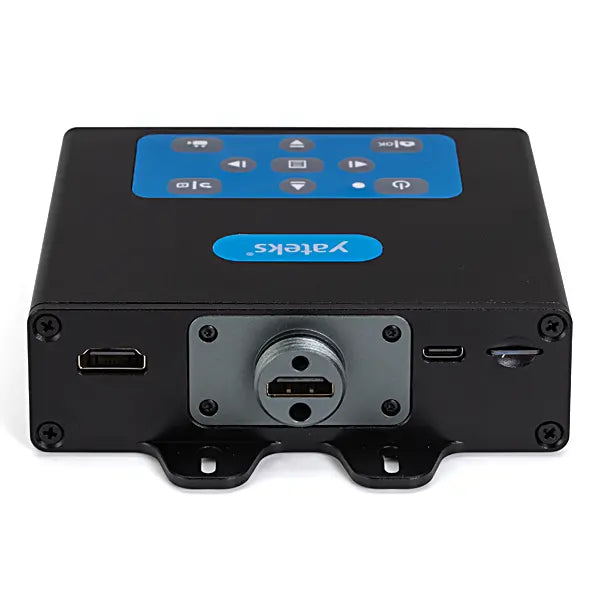

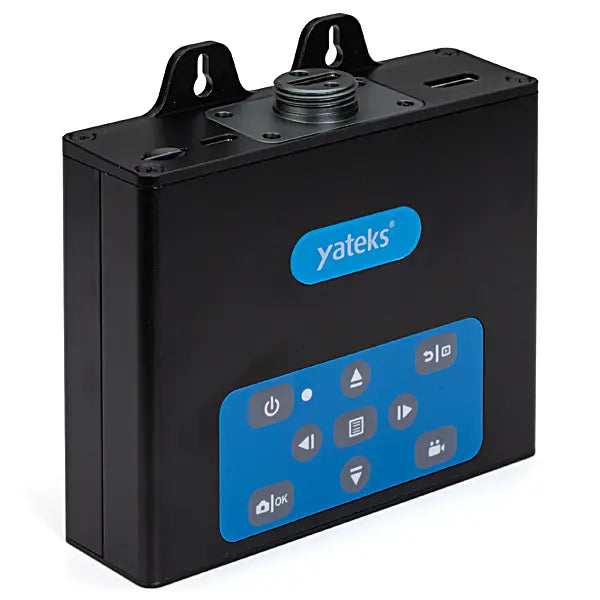

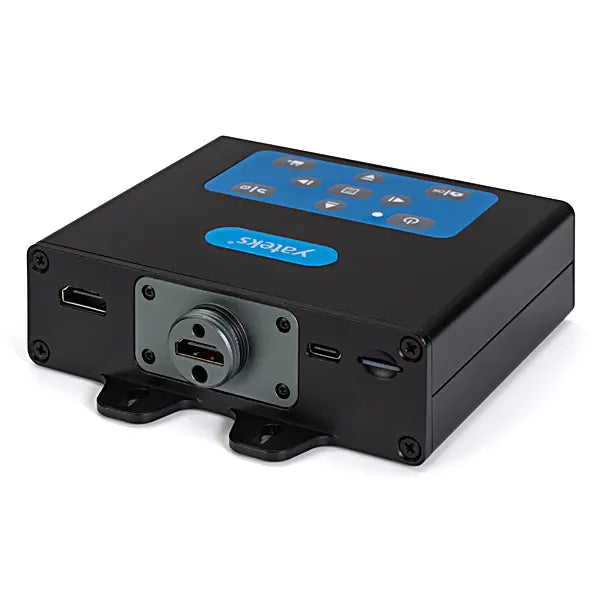

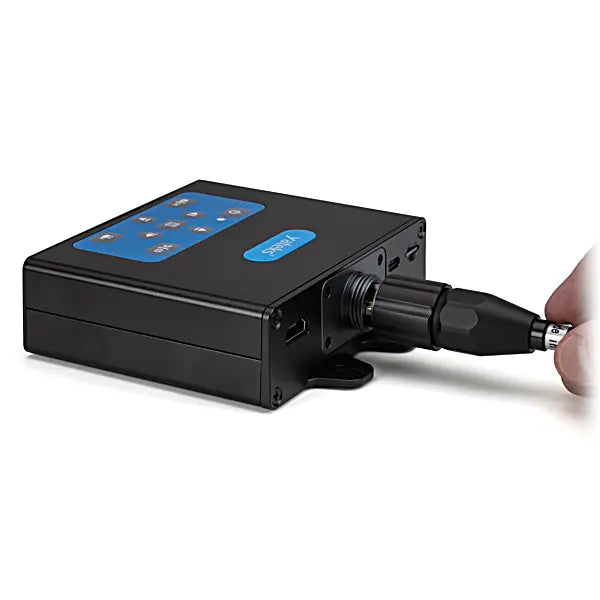

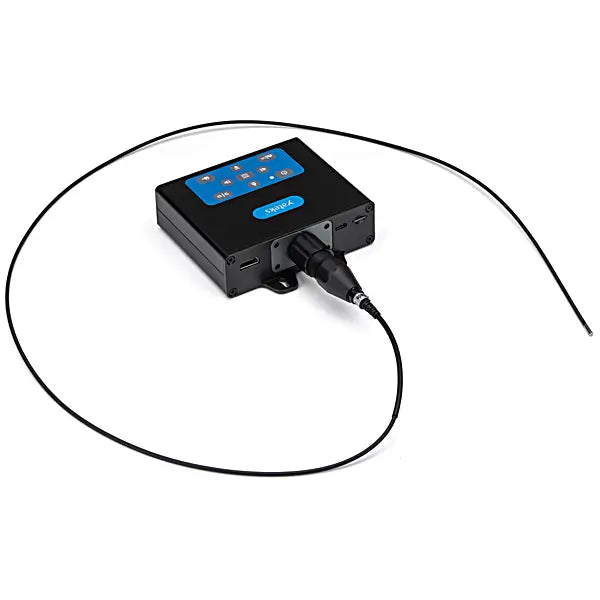

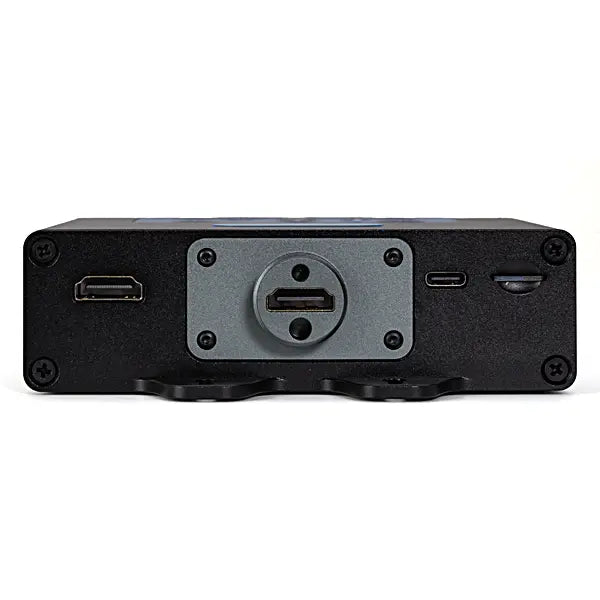

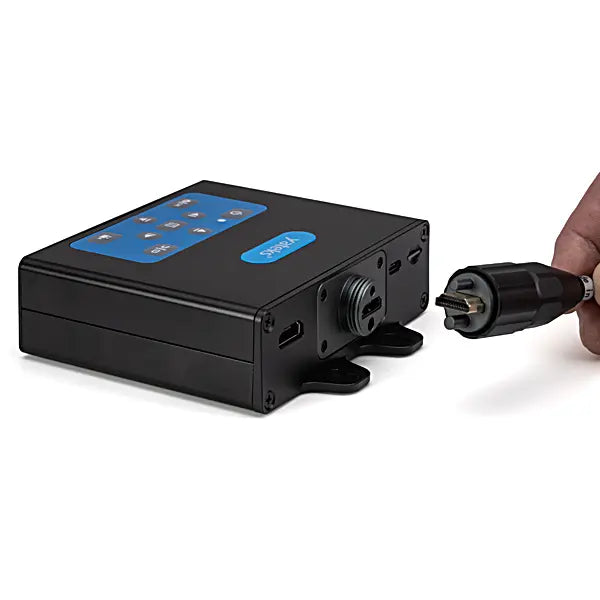

The Yateks G Series Benchtop Camera Control Unit is the processing core of a rigid video borescope workstation system. It accepts Yateks G Series rigid probes via the probe interface cable and delivers HDMI video output to any HD monitor — giving quality assurance teams, NDT technicians, and inspection engineers full flexibility to integrate into an existing workstation without being locked into a handheld display.

Designed for the inspection of internal cracks, corrosion, foreign matter, and other defects in aerospace, automotive, marine, electrical, chemical, and power generation applications.



Built for Repeatable, Workstation-Based Inspection

Unlike a handheld borescope, the G Series Camera Control Unit is designed for fixed benchtop inspection stations where components come to the scope. This format suits high-throughput inspection in automotive casting, aerospace component QC, turbine blade examination, and precision manufacturing — anywhere a technician needs to inspect the same bore geometry on multiple parts in sequence.

The G Series is the upgraded successor to the Yateks B+ Benchtop Series.



Advanced Image Processing Controls

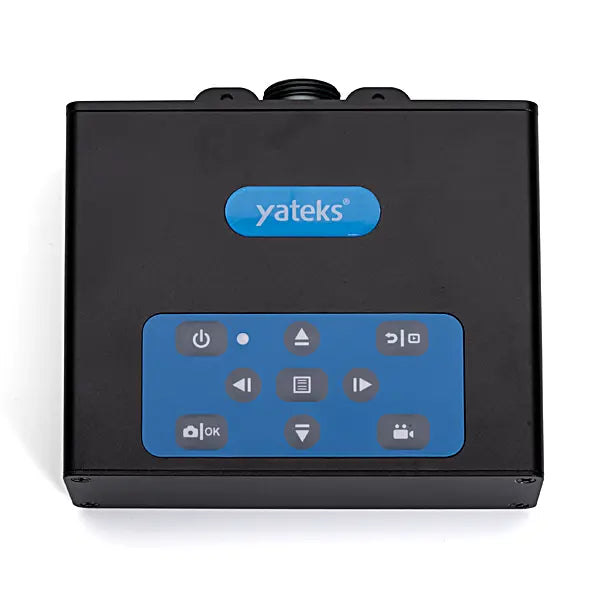

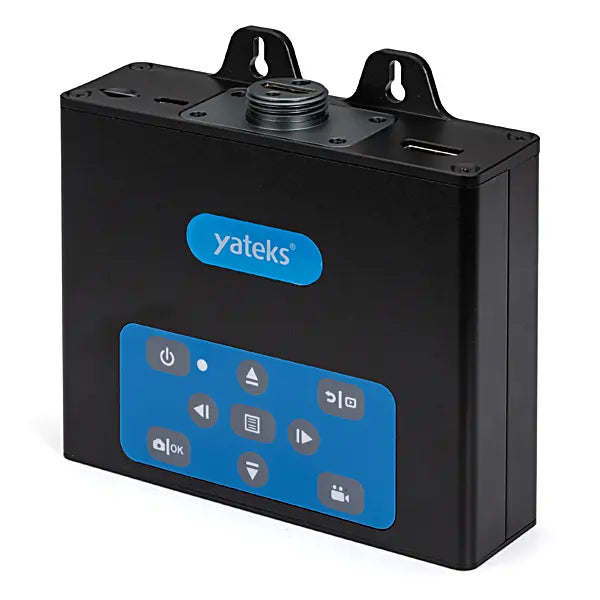

The G Series Camera Control Unit gives technicians precise control over image quality directly from the front panel:

• Brightness: 5 levels of LED illumination control

• Exposure control: 4 metering modes for varying light conditions

• Sharpness: 6 levels (S0–S5)

• Highlight Suppression (HLC): Reduces glare from highly reflective surfaces

• Low-light Compensation: Enhances visibility in dark or shadowed bores

• Digital Zoom: Up to 4× continuous zoom

• Image Freeze: Capture a stable frame without recording

• Image Flip: Horizontal, vertical, or 180° rotation

• White Balance: Auto or manual

• Reference Grid: Coarse, medium, or fine overlay for measurement reference

• Aspect Ratio: 16:9 or 1:1

• Color Effects: Normal, Black-and-White, Negative

• Dual-camera switching (for compatible dual-camera probes)

Recording and Storage

• Image format: JPEG/JPG with date/time stamp

• Video format: MOV with date/time stamp

• Internal storage: 32 GB built-in

• Expandable storage: Micro SD card slot, up to 128 GB

• Firmware updates: Via Micro SD card

System Configuration

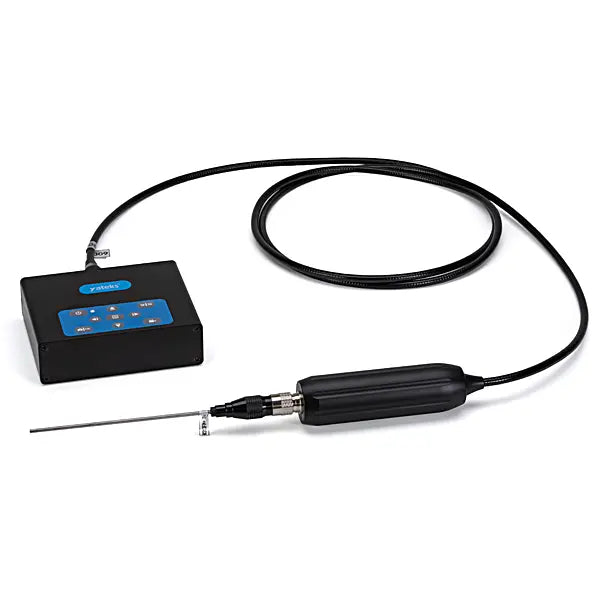

This unit is the "breakout box" option in the G Series Benchtop System. For a complete inspection setup, see Yateks G Series Benchtop Video Borescope Inspection System page.

Alternatively, replace this unit with the Yateks G Series Video Borescope Monitor (EM10245) for a self-contained display — no external monitor required.



Compatible Probes

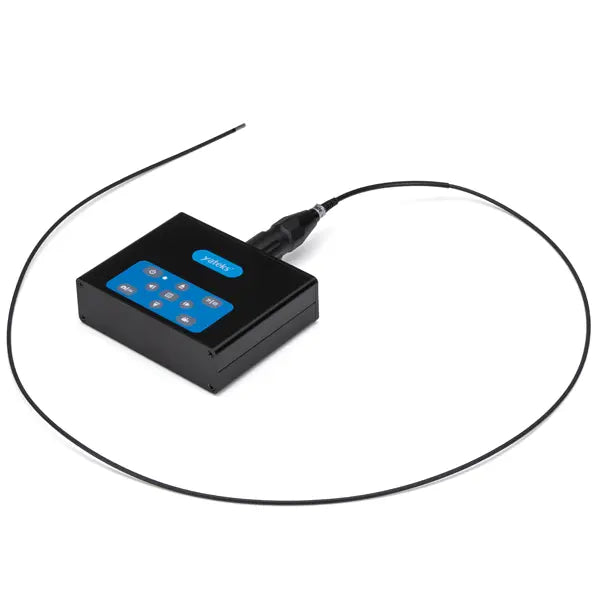

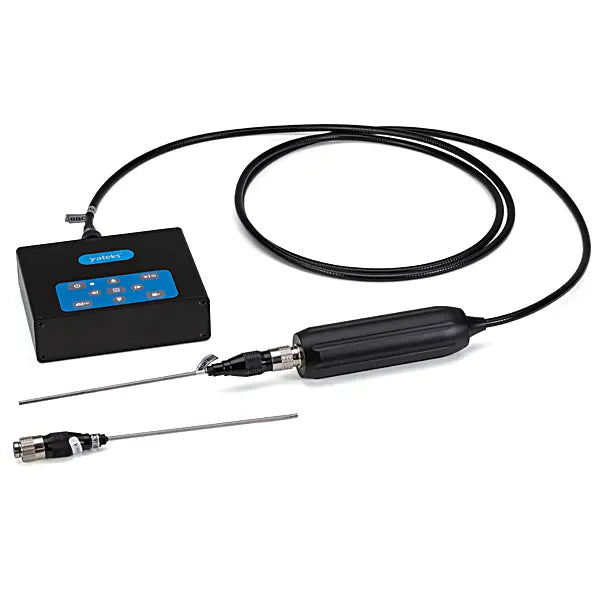

Works with Yateks G Series rigid borescope probes in the following configurations:

• Diameters: 2.2 mm, 2.8 mm, 3.0 mm

• Lengths: 3" (76.2 mm), 5" (127 mm), 12" (300 mm), 18" (500 mm)

• Direction of View: Direct (0°), Side (90°)

• Probe IP rating: IP67



Yateks USA — InterTest

InterTest is the authorized Yateks USA distributor and repair center. Our applications engineers can help you select the right probe configuration for your specific inspection requirement.

Specifications





Items Included

Yateks G Series Benchtop Camera Control Unit Includes:

• G Series Benchtop Camera Control Unit

• USB Type-C data cable

• Power adapter

• HDMI adapter cable

• User manual

• Certificate of conformity

• Warranty card

Downloads

Yateks G Series Benchtop Camera Control Unit Manual
