The Yateks Inspexa Series Industrial Videoscope is the next evolution of the proven P+ platform — combining advanced imaging performance with new probe configurations all in one platform. The Inspexa system supports a wide range of interchangeable probes in multiple diameters, lengths, and viewing directions (direct, side, or dual). Choose from white light, UV, or dual white/UV illumination to match your inspection needs.
Designed for both benchtop and field applications, the Inspexa features an 8" Full HD (1920 x 1200) touchscreen monitor — a significant upgrade over the 720p display on the P+ Series — all-way motorized articulation, and a robust portable design powered by dual rechargeable lithium-ion batteries for up to 3 hours of runtime per set. Built for nondestructive testing, it delivers the clarity, control, and accuracy professionals rely on, making it ideal for aerospace, power generation, and other demanding RVI environments.
A 360° electric joystick provides smooth probe articulation with lock and reset functions, making navigation through complex components simple and reliable.
New and improved features of the Yateks Inspexa Series include:
- Full HD 1920 x 1200 monitor display — a significant upgrade over the 720p monitor on the P+ Series
- Inspexa Series monitor is backward compatible with all Yateks P+ Series Probes
- WiFi streaming
- Optimized software interface and operation modes
- Improved articulation control for precise movements and navigation
- More compatibility with different lens models and configurations

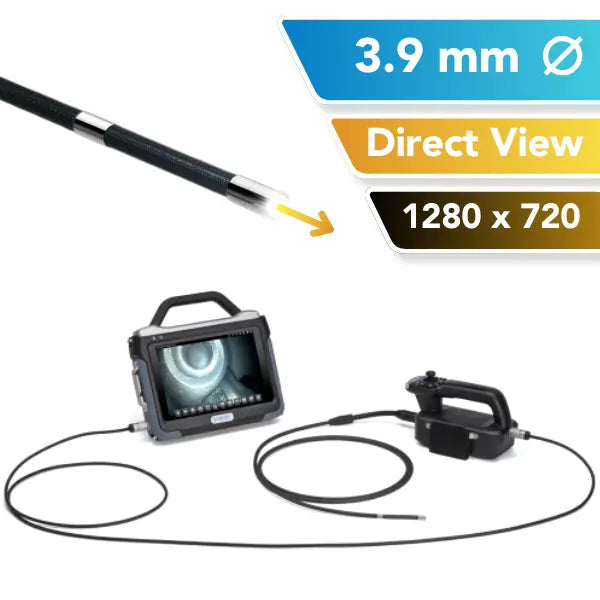

The Yateks Inspexa 3.9 mm video borescope delivers 1280 x 720 pixel resolution with a direct view, 110° field of view, and 8–150 mm depth of field — a far-focus range for greater working distance. White fiber optic illumination reaches up to 50,000 lux on shorter probes, tapering to 40,000 lux at 5.0 m and 30,000 lux at 6.0 m due to fiber light transmission loss over distance. Articulation range varies by probe length: 170°±10° at 1.0 m, 170°±10° at 1.5 m, 150°±10° at 2.0 m, 120°±10° at 3.0 m, 100°±10° at 5.0 m, and 90°±10° at 6.0 m.
Specifications
| Diameter | 3.9 mm |
| Resolution | 1280 x 720 pixels |
| Direction of View | Direct 0° |
| Depth of Field (DOF) | 8 - 150mm |
| Field of View (FOV) | 110° |
| Illumination Source / Type | Fiber / White |
| Intensity | 50,000 lux (1.0-3.0 m length), 40,000 lux (5.0 m length), 30,000 lux (6.0 m length) |
| Probe Articulation Range | 170°±10° (1.0 m length), 170°±10° (1.5 m length), 150°±10° (2.0 m length), 120°±10° (3.0 m length), 100°±10° (5.0 m length), 90°±10° (6.0 m length) |
| Dimensions / Weight | 333 x 229.5 x 116.5 mm / 2.3 kg |
| Display Screen | 8″ IPS industrial HD touch LCD screen with 1920 x 1200 resolution |
| Control Lever | Electric joystick, 360-degree rotation, articulation lock, all around camera guidance |
| Functions | Image capture, video recording, playback, articulation, illumination control, screen brightness adjustment, zoom in/out, screen flip, screen invert, screen freeze, color mode adjustment, display ratio, grid measurement, automatic white balance (AWB), image/video browse, lock fine-tune, menu, support. Point-to-point, point-to-line, point-to-surface, etc. measurements. |
| Storage | Built-in 128G + extended 64G USB flash drive (up to 256G) |
| I/O port | Mini HDMI, USB-A port, USB-C interface, Headset interface |
| Battery | Four rechargeable 18650 lithium-ion batteries |
| Brightness Control | 10 level adjustment |
| Full System | Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter |
| Compatibility | Interchangeable with all Inspexa series probe sizes, lengths, and styles |
| Operating System | Real-time multifunctional operating system |
| User Interface | Touchscreen operation menu |
| File Management | Supporting picture / video playback, deletion, formatting, naming, and annotation |
| Image Control | Digital zoom, image and video playback, freeze-frame, flip image, mirror image |
| Image Format/Video Format |
BMP / JPG / PNG AVI / MP4 |
| Language | English / Spanish / Portuguese / French / German / Chinese (simplified and traditional) / Korean / Russian / Japanese |
| Color Settings | 4 modes for different applications |
| White Balance | Automatic, manual white balance |
| Exposure Mode | Automatic, manual |
| Firmware Update | Upgraded via interface |
| Monitor Working Temperature | -10～50° |
| Probe Working Temperature | -20～60° |
| Relative Humidity | Highest 90%, no condensation |
| IP Rating | Monitor IP54 / Probe IP67 |
Items Included
Yateks Inspexa Series Video Borescope Kits include:
- Inspexa Monitor (4 batteries in monitor)
- Inspexa Probe (model of choice)
- Charger for monitor (USB-C to USB-C cable with wall adapter)
- Short Inspexa Probe to Monitor cable
- Long Inspexa Probe to Monitor cable
- 32 GB SD card
- USB to SD card reader
- USB-C to USB cable
- HDMI to HDMI cable
- 4 Spare batteries (Lithium-Ion batteries)
- 4-Port Lithium-Ion Battery charger
- Accessories: Manual, cleaning cloth, cable management strap, strap for hands-free monitor operation
- Robust Carrying Case
