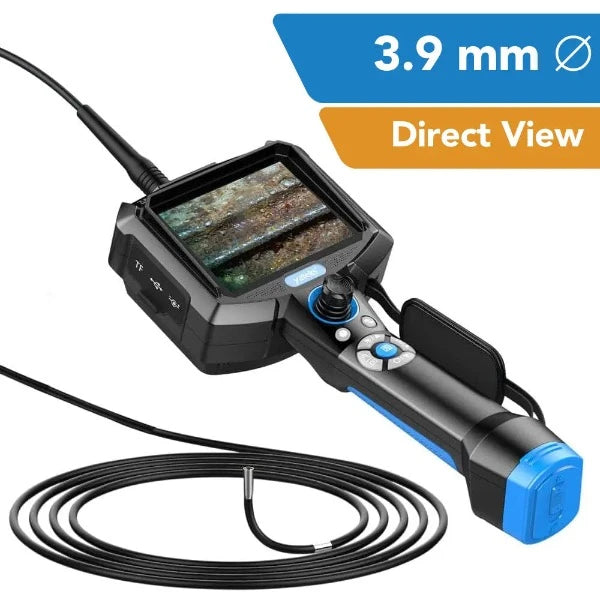

Yateks N Series Industrial Videoscope - 3.9 mm OD Direct View Middle Focus

SKU: EM13206

• 3.9 mm Outer Diameter
• 7-80 mm Depth of Focus
• 4-Way Motorized Articulation
• 110º Field of View
• 170° Articulation Range
• Resolution (720 x 576 pixels)
• 5.5-inch Touch Screen


Select variables

Yateks - Length: 1 m (3.280')

Details

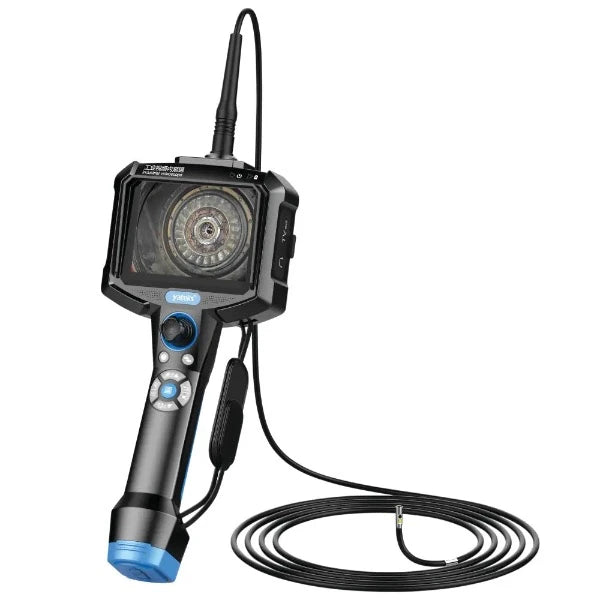

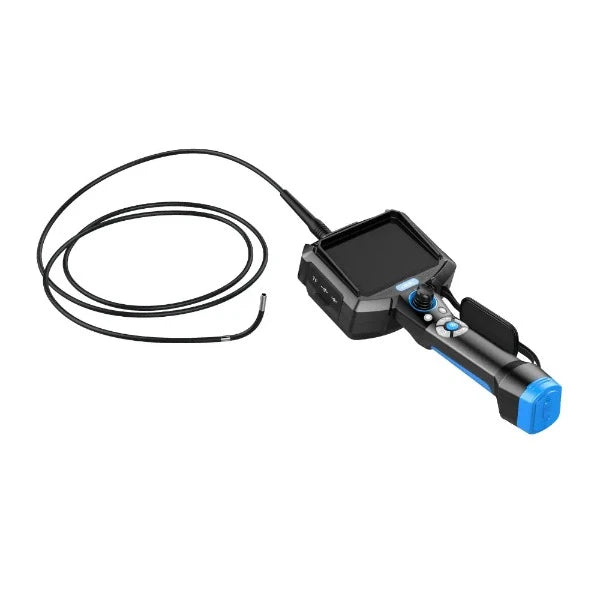

The Yateks N series industrial videoscope provides high performance for inspections that require 4-way articulation and portability. Featuring an ergonomic handset with high resolution at over 400,000 total pixels on a brilliant 5.5 inch screen, the N series offers superb value and performance for a wide range of applications.

Specifications

Dimension/Weight

156 x 356 x 80mm / 1.5kg

Display screen

5″ IPS LCD (640 x 480)

Control Lever

Electric rocker with probe able to articulate in 360-degree, software navigation key / step-drive, fast and slow regulation, automatic set

Functions

Image capture, video recording, playback, articulation, illumination control

Storage

32 GB high speed micro SD card, TF Card

I/O port

Debug Port

Battery / Standby time

Two rechargeable 18650 lithium-ion batteries / 2.5 hours N-D

Brightness Control

5 level adjustment

Operation System

Real time multitasking operation system

File Management

File & Folder creation, naming, deleting, storing to SD card or USB Drive

Image Control

Digital zoom, image and video playback, freeze-frame, flip image, mirror image

Image Format / Video Format

JPEG, JPG / AVI (record date and time)

Language

English / Chinese / Korean / German / Russian / Japanese

Color Settings

6 modes for different applications

White Balance

Automatic / manual white balance

Exposure Mode

Automatic / manual

Firmware Update

Via Micro SD card service pack

Monitor Working Temperature

-10~50°

Probe Working Temperature

-20~70°

Relative Humidity

Highest 90%, no condensation

IP Rating

Monitor IP54 / Probe IP67



Downloads

Product Specification Sheet
