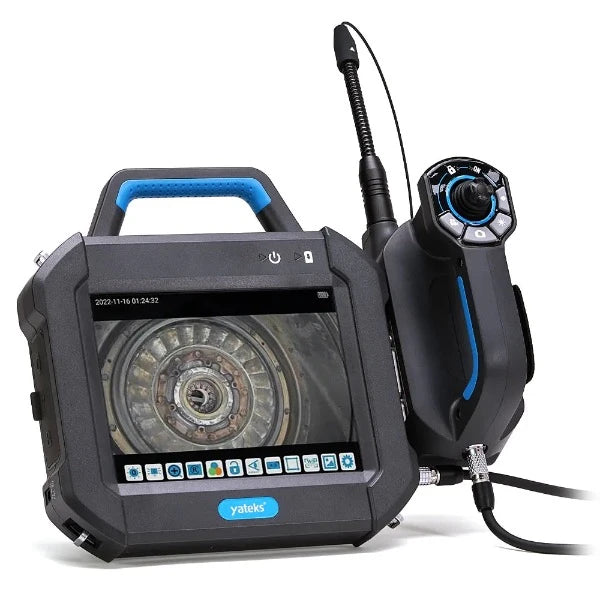

The Yateks P+ Series Industrial Video Borescope is a powerful, versatile industrial videoscope platform. The system offers multiple interchangeable probe configurations with variable sizes, lengths, and styles (i.e., dual view / UV options). Great for benchtop use, the P+ Series is also fully portable and includes two sets of rechargeable lithium-ion batteries for up to 3 hours of battery life per set.

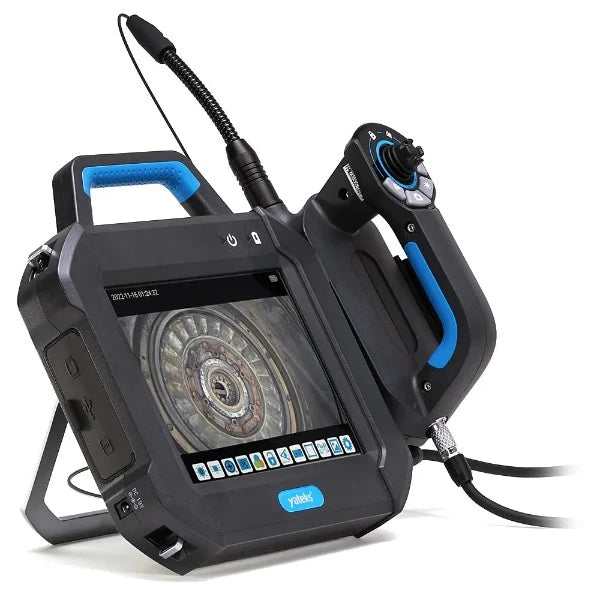

With an 8” HD touchscreen monitor, motorized articulation, and various multi-functional capabilities, the Yateks P+ series is the ideal videoscope system for multi-part inspections and specialty applications. Use the P+ Series in aerospace/aviation, power generation, or any complex part remote visual inspection (RVI) applications.
New and improved features of the Yateks P+ Series include:
- P+ Series monitor is backward compatible with all Yateks P Series Probes
- Increased frame rates from 20-25fps to 30fps
- Optimized software interface and operation modes
- USB-C port for fast charging and file transfer
- More compatibility with different lens models, such as interchangeable lenses and 2 MP models

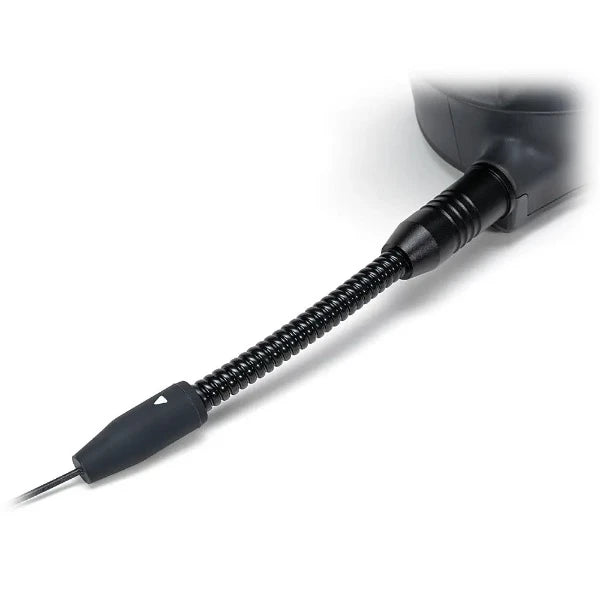

- Strain relief on probes for added durability
The Yateks P series 1.7 mm videoscope offers the highest resolution in its size class at 400 x 400 for a total of 160,000 total pixels. The 1.7 mm size has 2-way articulation and is an excellent option for small-diameter inspections that demand the highest image quality.
Specifications
| Diameter | 1.7 ± 0.1 mm |
| Resolution | 400 x 400 pixels |
| Direction of View | Forward |
| Depth of Field (DOF) | 3 -20mm |
| Field of View (FOV) | 120° |
| Illumination Source / Type | LED / White |
| Intensity | 4000 lux |
| Probe Articulation Range | 140°±10° |
|
Dimensions / Weight |
246 x 321 x 123 mm / 2.3 kg |
|
Display Screen |
8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio) |
|

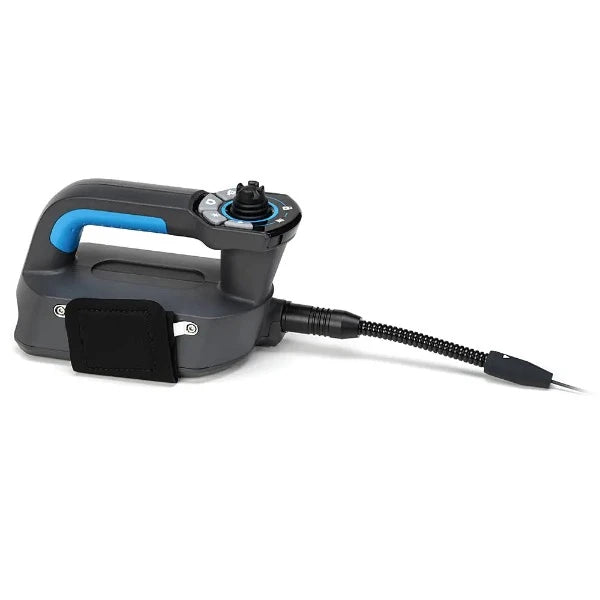

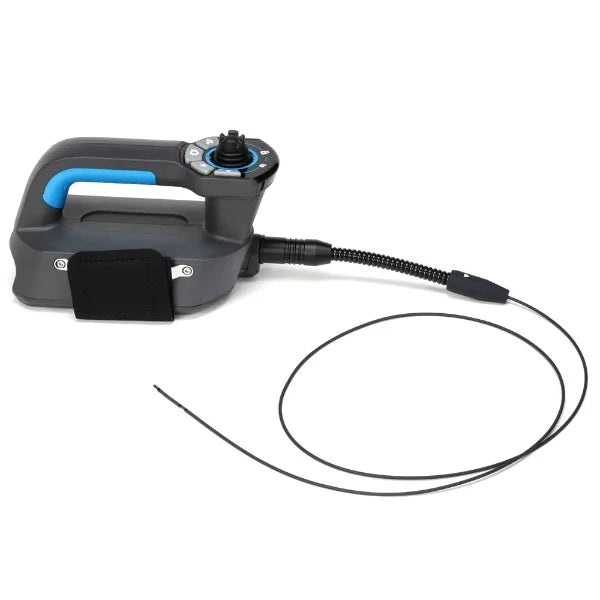

Control Lever |
Electric rocker, 360-degree rotation, articulation lock, automatic set |
|
Functions |
Image capture, video recording, playback, articulation, illumination control |
|
Storage |
32 GB high-speed SD card (Up to 128 GB） |
|

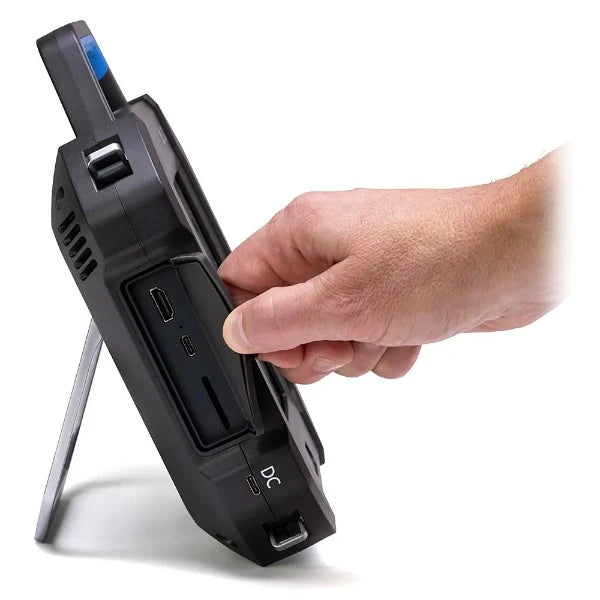

I/O port |
SD card, HDMI port (1024 x 768), charge and mini USB |
|
Battery |
Four rechargeable 18650 lithium-ion batteries |
|
Brightness Control |
5 level adjustment |
|

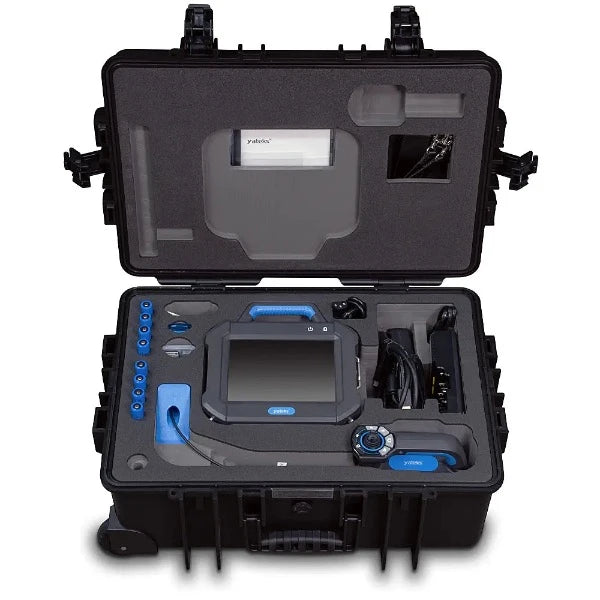

Full System |
Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter |
|
Compatibility |
Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement |
|
Operating System |
Real-time multifunctional operating system |
|
User Interface |
Touchscreen operation menu |
|
File Management |
Auto or manual file folder creation, rename files |
|
Image Control |
Digital zoom, image and video playback, freeze-frame, flip image, mirror image |
|
Image Format/Video Format |
JPEG, AVI |
|
Language |
English / Chinese / Korean / German / Russian / Japanese |
|
Color Settings |
4 modes for different applications |
|
White Balance |
Automatic, manual white balance |
|
Exposure Mode |
Automatic, manual |
|
Firmware Update |
Via SD card service pack |
|
Monitor Working Temperature |
-10～50° |
|
Probe Working Temperature |
-20～70° |
|
Relative Humidity |
Highest 90%, no condensation |
|
IP Rating |
Monitor IP54 / Probe IP67 |
