Yateks P+ Series Industrial Video Borescope 2.8 mm OD Direct View

Yateks USA Vendor Logo SKU: EM31568MFG: P310FN-WL-PA

• 2.8 mm Outer Diameter
• Direct View (0° direction of view)
• All Direction Motorized Articulation
• White LED Illumination
• 3-50mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

Yateks - Length: 1.0 m (3.28')
Kit: Full System

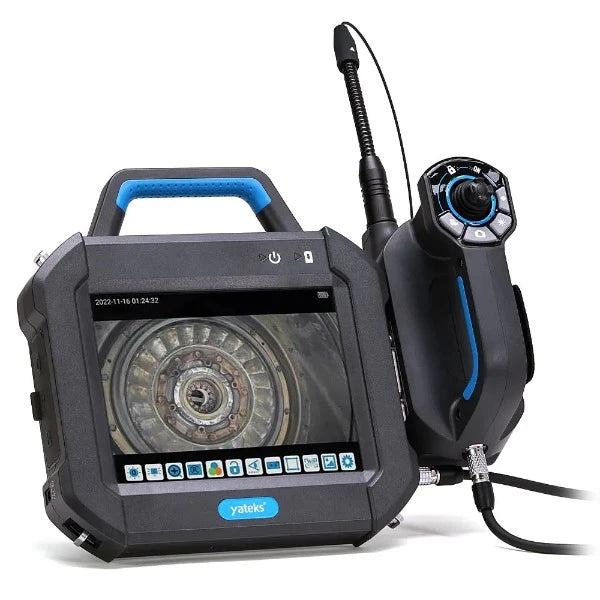

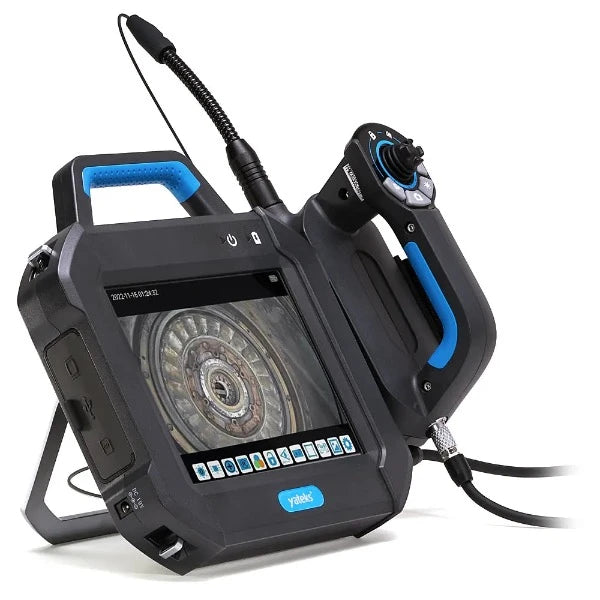

Yateks P+ Series Industrial Video Borescope 2.8 mm OD Direct View

The Yateks P+ Series Industrial Videoscope is a powerful, versatile industrial videoscope platform. The system offers multiple interchangeable probe configurations with variable sizes, lengths, styles (i.e., dual view / UV options), and articulation. Great for benchtop use, the P+ Series is also fully portable and includes two sets of rechargeable lithium-ion batteries for up to 3 hours of battery life per set.

With an 8” HD touchscreen monitor, motorized articulation, and various multi-functional capabilities, the Yateks P+ series is the ideal videoscope system for multi-part inspections and specialty applications. Use the P+ Series in aerospace/aviation, power generation, or any complex part remote visual inspection (RVI) applications.

New and improved features of the Yateks P+ Series include:

  • P+ Series monitor is backward compatible with all Yateks P Series Probes
  • Increased frame rates from 20-25fps to 30fps
  • Optimized software interface and operation modes
  • USB-C port for fast charging and file transfer
  • More compatibility with different lens models, such as interchangeable lenses and 2 MP models
  • Strain relief on probes for added durability

The Yateks P series 2.8 mm videoscope offers high resolution at 400 x 400 for a total of 160,000 total pixels and has motorized all-direction articulation for maximum surface inspection coverage. The 2.8 mm size is an excellent option for small-diameter inspections that demand the highest image quality.


Diameter 2.8 ± 0.1 mm
Resolution 400 x 400 pixels
Direction of View Direct 0°
Depth of Field (DOF) 3 - 50mm
Field of View (FOV) 120°
Illumination Source / Type LED / White
Intensity 8000 lux
Probe Articulation Range 150°±10° (1.0 m length),140°±10° (1.5 m length), 110°±10° (2.0 m length), 100°±10° (3.0 m length)

Dimensions / Weight

246 x 321 x 123 mm / 2.3 kg

Display Screen

8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio)

Control Lever

Electric rocker, 360-degree rotation, articulation lock, automatic set


Image capture, video recording, playback, articulation, illumination control


32 GB high-speed SD card (Up to 128 GB)

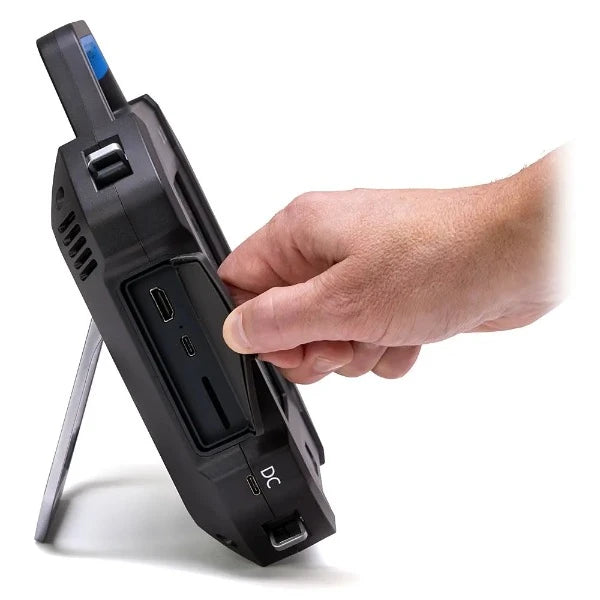

I/O port

SD card, HDMI port (1024 x 768), charge and mini USB


Four rechargeable 18650 lithium-ion batteries

Brightness Control

5 level adjustment

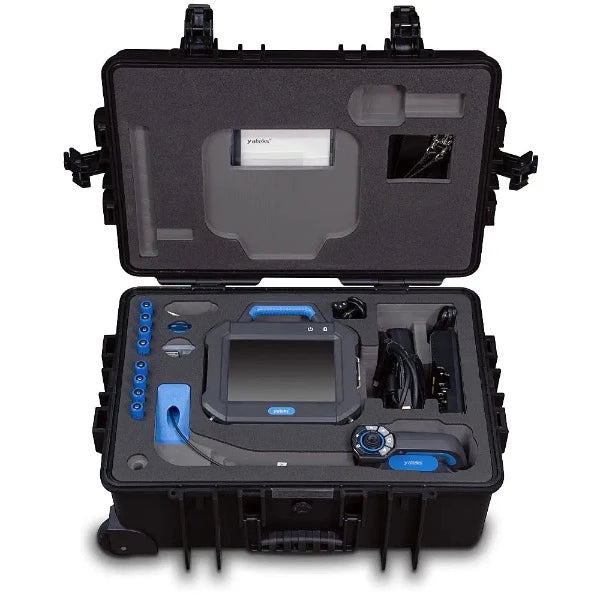

Full System

Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter


Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement

Operating System

Real-time multifunctional operating system

User Interface

Touchscreen operation menu

File Management

Auto or manual file folder creation, rename files

Image Control

Digital zoom, image and video playback, freeze-frame, flip image, mirror image

Image Format/Video Format



English / Chinese / Korean / German / Russian / Japanese

Color Settings

4 modes for different applications

White Balance

Automatic, manual white balance

Exposure Mode

Automatic, manual

Firmware Update

Via SD card service pack

Monitor Working Temperature


Probe Working Temperature


Relative Humidity

Highest 90%, no condensation

IP Rating

Monitor IP54 / Probe IP67


Yateks P+ Series Product Brochure
