Yateks P+ Series Industrial Video Borescope 3.9 mm OD Direct View - Temperature Sensor

Yateks USA Vendor Logo SKU: EM19084 MFG: P410FM-WL-XH

• 3.9 mm Outer Diameter
• Direct View (0° direction of view)
• 4-way Articulation
• Neoprene Sheathing
• White LED Illumination
• 8-100mm Depth of Focus
• HD Resolution
• 8" Touch Screen
• Temperature Sensor

Yateks - Length: 1.0 m (3.28')
Kit: Full System
Yateks

Description

Details

Yateks P+ Series Industrial HD Video Borescope 3.9 mm OD Direct View - Temperature Sensor

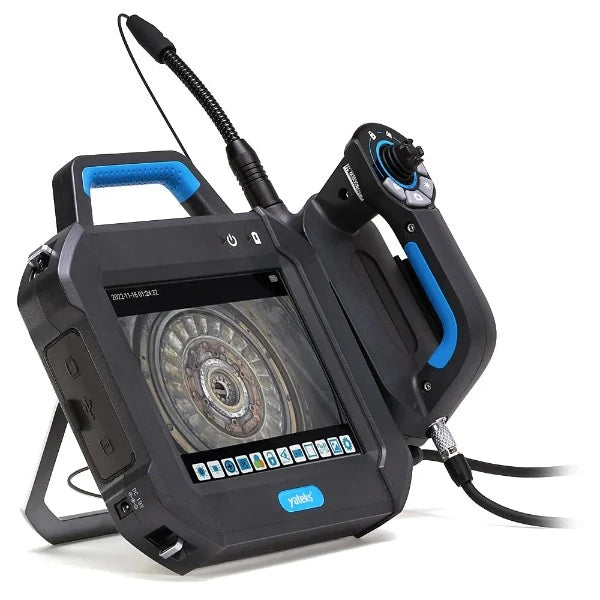

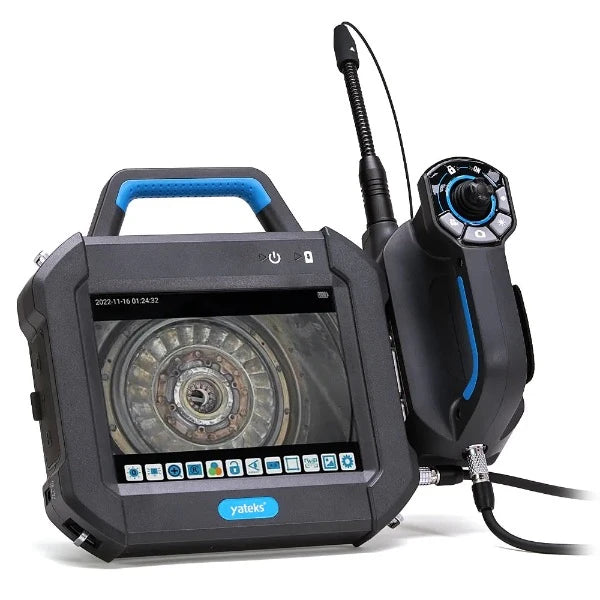

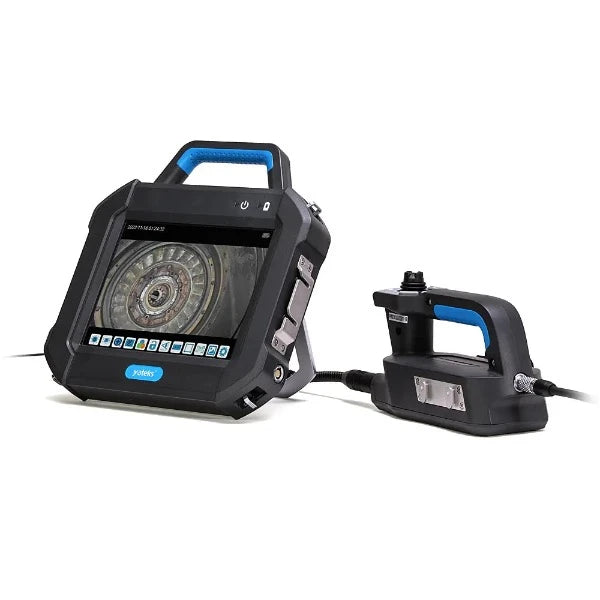

The Yateks P+ Series Industrial Video Borescope is a powerful, versatile industrial videoscope platform. The system offers multiple interchangeable probe configurations with variable sizes, lengths, styles (i.e., dual view / UV options), and articulation. Great for benchtop use, the P+ Series is also fully portable and includes two sets of rechargeable lithium-ion batteries for up to 3 hours of battery life per set.

With an 8” HD touchscreen monitor, motorized articulation, and various multi-functional capabilities, the Yateks P+ series is the ideal videoscope system for multi-part inspections and specialty applications. Use the P+ Series in aerospace/aviation, power generation, or any complex part remote visual inspection (RVI) applications.

New and improved features of the Yateks P+ Series include:

  • P+ Series monitor is backward compatible with all Yateks P Series Probes
  • Increased frame rates from 20-25fps to 30fps
  • Optimized software interface and operation modes
  • USB-C port for fast charging and file transfer
  • More compatibility with different lens models, such as interchangeable lenses and 2 MP models

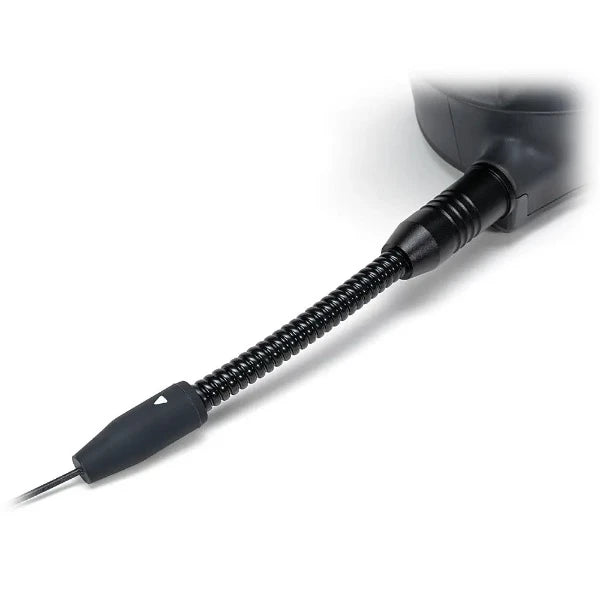

  • Strain relief on probes for added durability

The Yateks P+ Series 3.9 mm videoscope offers HD resolution at 1280 x 720 pixels. The video borescope also has motorized 4-way articulation for maximum surface inspection coverage and a temperature sensor. The 3.9 mm size and 0-degree direction-of-view make this scope ideal for small-diameter inspections that demand the highest HD image quality.

Specifications

Diameter 3.9 ± 0.1 mm
Resolution 1280 x 720 pixels
Direction of View Direct 0°
Depth of Field (DOF) 8 - 100mm
Field of View (FOV) 120°
Illumination Source / Type LED / White
Intensity 10,000 lux
Probe Articulation Range 170°±10° (1.0, 1.5 m lengths), 150°±10° (2.0 m length), 120°±10° (3.0 m length)
Features Temperature sensor

Dimensions / Weight

246 x 321 x 123 mm / 2.3 kg

Display Screen

8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio)

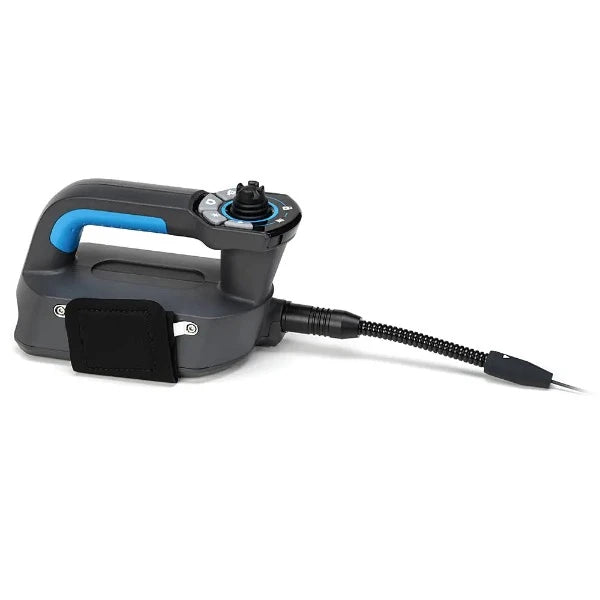

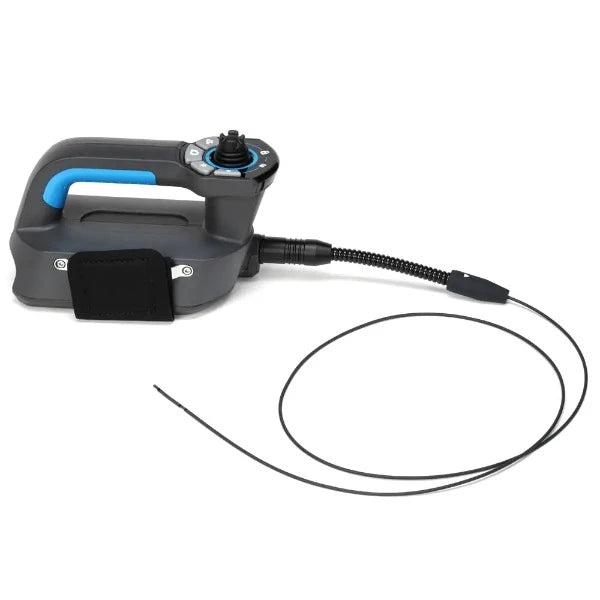

Control Lever

Electric rocker, 360-degree rotation, articulation lock, automatic set

Functions

Image capture, video recording, playback, articulation, illumination control

Storage

32 GB high-speed SD card (Up to 128 GB)

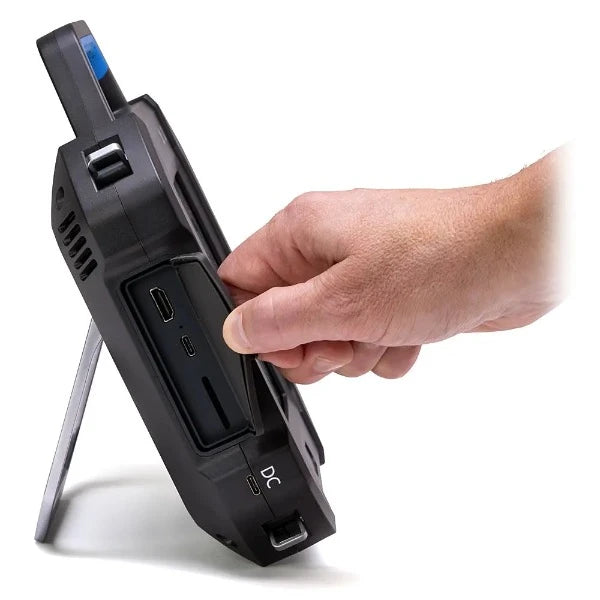

I/O port

SD card, HDMI port (1024 x 768), charge and mini USB

Battery

Four rechargeable 18650 lithium-ion batteries

Brightness Control

5 level adjustment

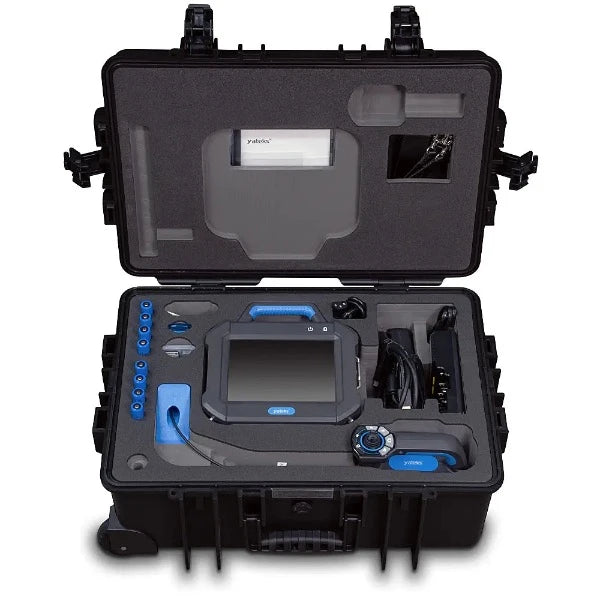

Full System

Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter

Compatibility

Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement

Operating System

Real-time multifunctional operating system

User Interface

Touchscreen operation menu

File Management

Auto or manual file folder creation, rename files

Image Control

Digital zoom, image and video playback, freeze-frame, flip image, mirror image

Image Format/Video Format

JPEG, AVI

Language

English / Chinese / Korean / German / Russian / Japanese

Color Settings

4 modes for different applications

White Balance

Automatic, manual white balance

Exposure Mode

Automatic, manual

Firmware Update

Via SD card service pack

Monitor Working Temperature

-10~50°

Probe Working Temperature

-20~70°

Relative Humidity

Highest 90%, no condensation

IP Rating

Monitor IP54 / Probe IP67
