Yateks P+ Series Industrial Video Borescope 3.9 mm OD Dual View - High Ilumination

Yateks USA Vendor Logo SKU: EM19079MFG: P410DM-WF-FD

• 3.9 mm Outer Diameter
• Dual View (0° & 90° direction of view)
• All Direction Motorized Articulation
• White Fiber Illumination (100,000 lux)
• 5-100mm Direct, 3-50mm Side Depth of Focus
• 1000 x 1000 pixels Direct, 400 x 400 Side Resolution
• 8" Touch Screen

Yateks - Length: 1.0 m (3.28')
Kit: Full System

Description

Details

Yateks P+ Series Industrial Video Borescope 3.9 mm OD Dual View - High Illumination

The Yateks P+ Series Industrial Video Borescope is a powerful, versatile industrial videoscope platform. The system offers multiple interchangeable probe configurations with variable sizes, lengths, styles (i.e., dual view / UV options), and articulation. Great for benchtop use, the P+ Series is also fully portable and includes two sets of rechargeable lithium-ion batteries for up to 3 hours of battery life per set.

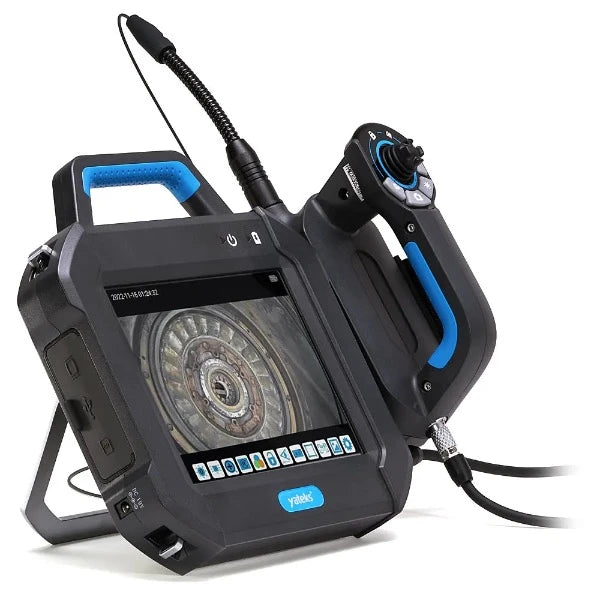

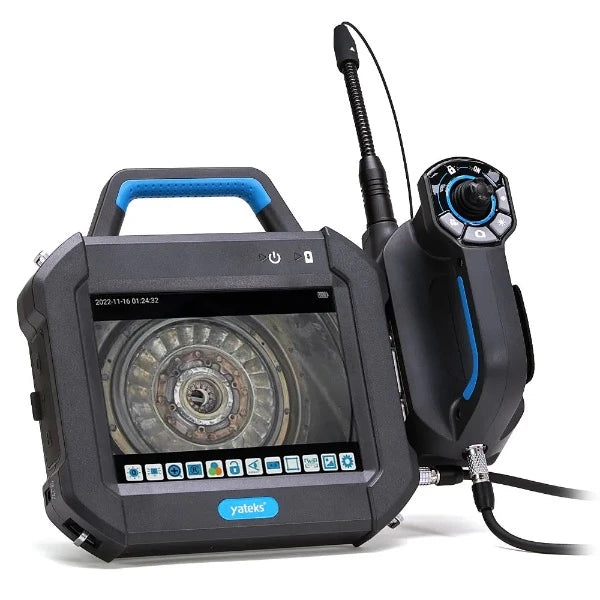

With an 8” HD touchscreen monitor, motorized articulation, and various multi-functional capabilities, the Yateks P+ series is the ideal videoscope system for multi-part inspections and specialty applications. Use the P+ Series in aerospace/aviation, power generation, or any complex part remote visual inspection (RVI) applications.

New and improved features of the Yateks P+ Series include:

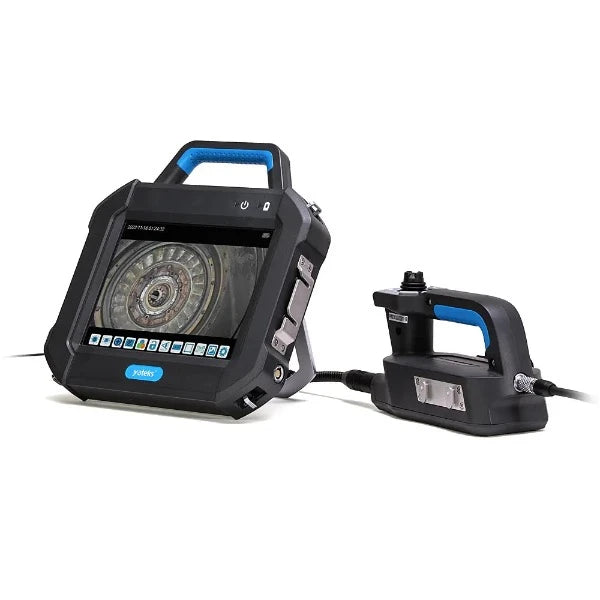

  • P+ Series monitor is backward compatible with all Yateks P Series Probes
  • Increased frame rates from 20-25fps to 30fps
  • Optimized software interface and operation modes
  • USB-C port for fast charging and file transfer
  • More compatibility with different lens models, such as interchangeable lenses and 2 MP models

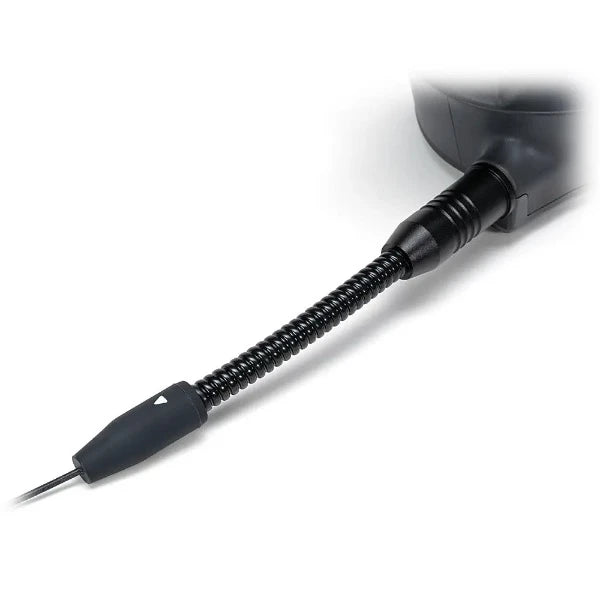

  • Strain relief on probes for added durability

The Yateks P series 3.9 mm videoscope offers 1000 x 1000 in the direct view, and 400 x 400 in the side view and has motorized all-direction articulation for maximum surface inspection coverage. The 3.9 mm size dual 0° and 90° direction-of-views are excellent options for small-diameter inspections that demand the highest image quality.

Specifications

Diameter 3.9 ± 0.1 mm
Resolution

Direct: 1000 x 1000 pixels

Side: 400 x 400 pixels

Direction of View Direct 0° & Side 90°
Depth of Field (DOF) Direct 5 - 100mm, Side: 3 - 50mm
Field of View (FOV)

Direct: 100°

Side: 120°

Illumination Source / Type Fiber & LED / White
Intensity

Direct: 100,000 lux

Side: 100,000 lux

Probe Articulation Range 170°±10° (1.0 m length), 150°±10° (2.0 m length), 120°±10° (3.0 m length), 100°±10° (5.0 m length)

Dimensions / Weight

246 x 321 x 123 mm / 2.3 kg

Display Screen

8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio)

Control Lever

Electric rocker, 360-degree rotation, articulation lock, automatic set

Functions

Image capture, video recording, playback, articulation, illumination control

Storage

32 GB high-speed SD card (Up to 128 GB)

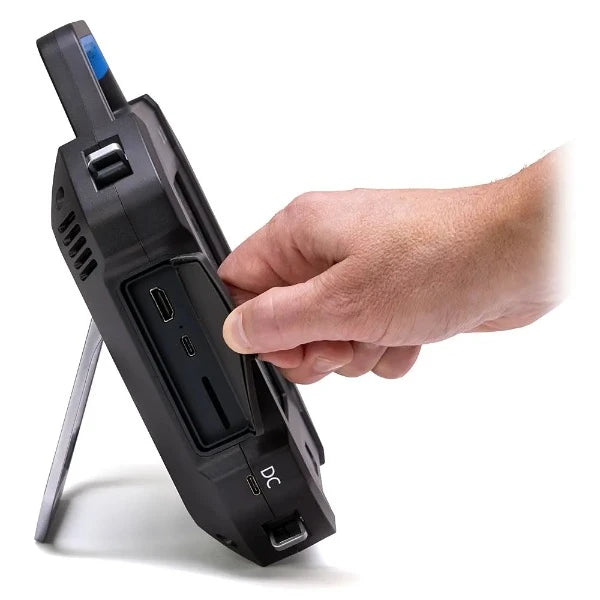

I/O port

SD card, HDMI port (1024 x 768), charge and mini USB

Battery

Four rechargeable 18650 lithium-ion batteries

Brightness Control

5 level adjustment

Full System

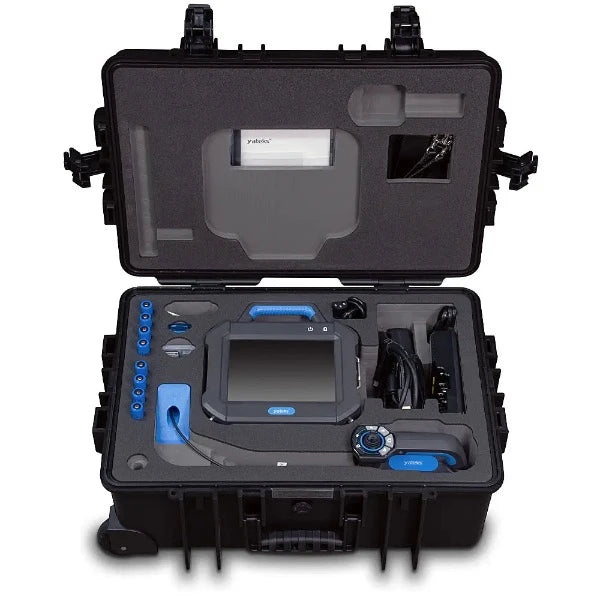

Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter

Compatibility

Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement

Operating System

Real-time multifunctional operating system

User Interface

Touchscreen operation menu

File Management

Auto or manual file folder creation, rename files

Image Control

Digital zoom, image and video playback, freeze-frame, flip image, mirror image

Image Format/Video Format

JPEG, AVI

Language

English / Chinese / Korean / German / Russian / Japanese

Color Settings

4 modes for different applications

White Balance

Automatic, manual white balance

Exposure Mode

Automatic, manual

Firmware Update

Via SD card service pack

Monitor Working Temperature

-10~50°

Probe Working Temperature

-20~70°

Relative Humidity

Highest 90%, no condensation

IP Rating

Monitor IP54 / Probe IP67
