Yateks P+ Series Industrial Video Borescope 6.0 mm OD Direct View - High Illumination

Yateks USA Vendor Logo SKU: EM19105 MFG: P610FM-WF-TE

• 6.0 mm Outer Diameter
• Direct View (0° direction of view)
• 4-way Articulation
• Neoprene Sheathing
• White Fiber Illumination (100,000 lux)
• 8-100mm Depth of Focus
• HD Resolution 1280 x 720 pixels
• 8" Touch Screen

Yateks - Length: 1.0 m (3.28')
Kit: Full System
Yateks

Description

Details

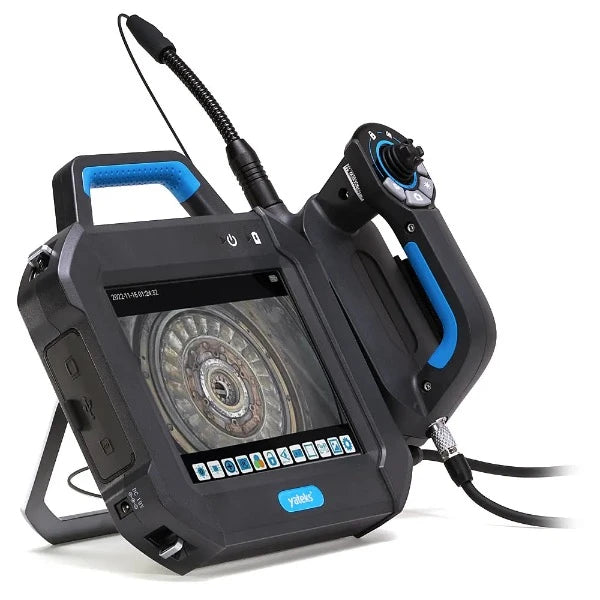

Yateks P+ Series Industrial Video Borescope 6.0 mm OD Direct View - High Illumination

The Yateks P+ Series Industrial Video Borescope is a powerful, versatile industrial videoscope platform. The system offers multiple interchangeable probe configurations with variable sizes, lengths, styles (i.e., dual view / UV options), and articulation. Great for benchtop use, the P+ Series is also fully portable and includes two sets of rechargeable lithium-ion batteries for up to 3 hours of battery life per set.

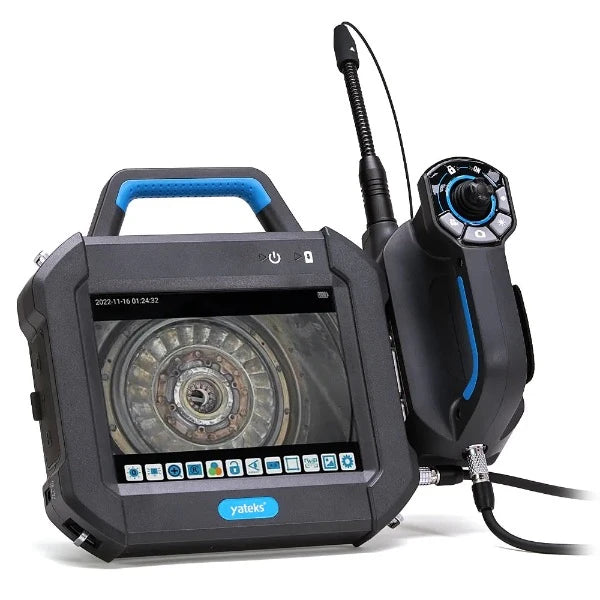

With an 8” HD touchscreen monitor, motorized articulation, and various multi-functional capabilities, the Yateks P+ series is the ideal videoscope system for multi-part inspections and specialty applications. Use the P+ Series in aerospace/aviationpower generation, or any complex part remote visual inspection (RVI) applications.

New and improved features of the Yateks P+ Series include:

  • P+ Series monitor is backward compatible with all Yateks P Series Probes
  • Increased frame rates from 20-25fps to 30fps
  • Optimized software interface and operation modes
  • USB-C port for fast charging and file transfer
  • More compatibility with different lens models, such as interchangeable lenses and 2 MP models

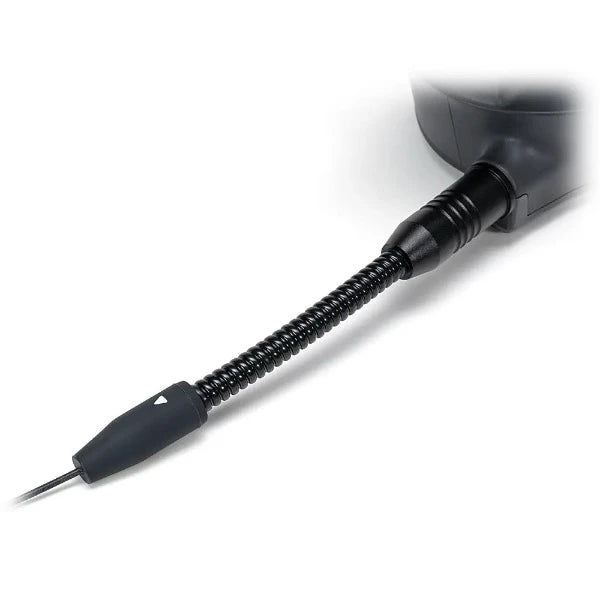

  • Strain relief on probes for added durability

The Yateks P+ Series 6.0 mm videoscope offers HD resolution at 1280 x 720 pixels and has motorized 4-way articulation for maximum surface inspection coverage. The 6.0 mm size and bright, 100,000 lux white light illumination make this video borescope an excellent, versatile option for component inspections that demand the highest image quality.

Specifications

Diameter 6.0 mm
Resolution 1280 x 720 pixels
Direction of View Direct 0°
Depth of Field (DOF) 8 - 150mm
Field of View (FOV) 110°
Illumination Source / Type Fiber + LED / White
Intensity 100,000 lux
Probe Articulation Range 170°±10° (1.0 & 1.5 lengths), 150°±10° (2.0 m length), 120°±10° (3.0 m length)

Dimensions / Weight

246 x 321 x 123 mm / 2.3 kg

Display Screen

8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio)

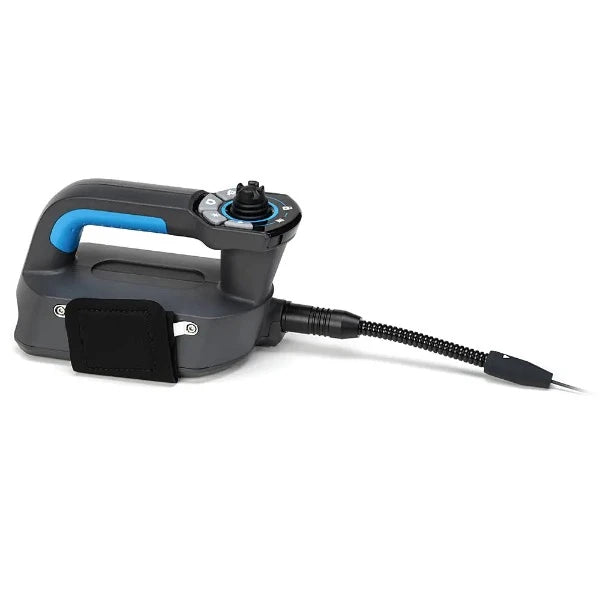

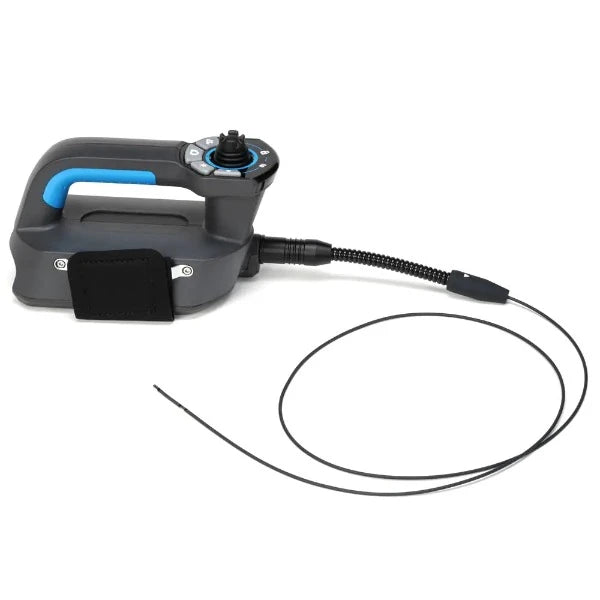

Control Lever

Electric rocker, 360-degree rotation, articulation lock, automatic set

Functions

Image capture, video recording, playback, articulation, illumination control

Storage

32 GB high-speed SD card (Up to 128 GB)

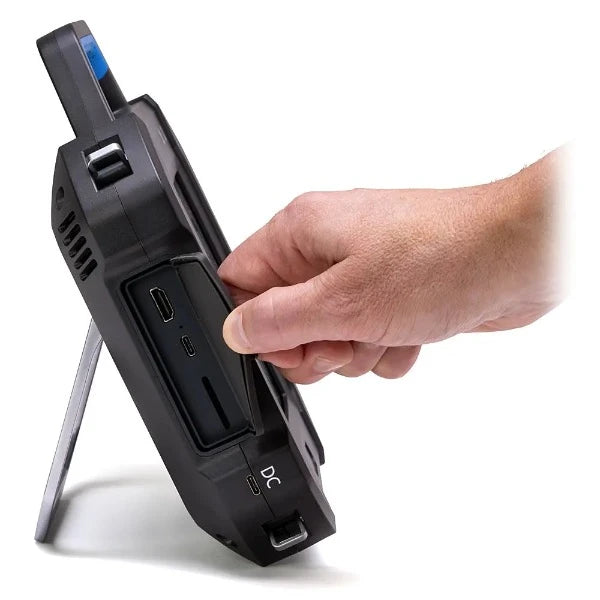

I/O port

SD card, HDMI port (1024 x 768), charge and mini USB

Battery

Four rechargeable 18650 lithium-ion batteries

Brightness Control

5 level adjustment

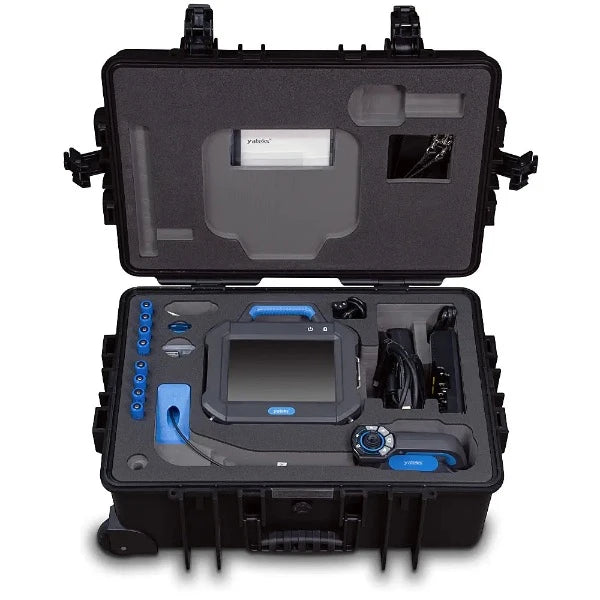

Full System

Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter

Compatibility

Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement

Operating System

Real-time multifunctional operating system

User Interface

Touchscreen operation menu

File Management

Auto or manual file folder creation, rename files

Image Control

Digital zoom, image and video playback, freeze-frame, flip image, mirror image

Image Format/Video Format

JPEG, AVI

Language

English / Chinese / Korean / German / Russian / Japanese

Color Settings

4 modes for different applications

White Balance

Automatic, manual white balance

Exposure Mode

Automatic, manual

Firmware Update

Via SD card service pack

Monitor Working Temperature

-10~50°

Probe Working Temperature

-20~70°

Relative Humidity

Highest 90%, no condensation

IP Rating

Monitor IP54 / Probe IP67
