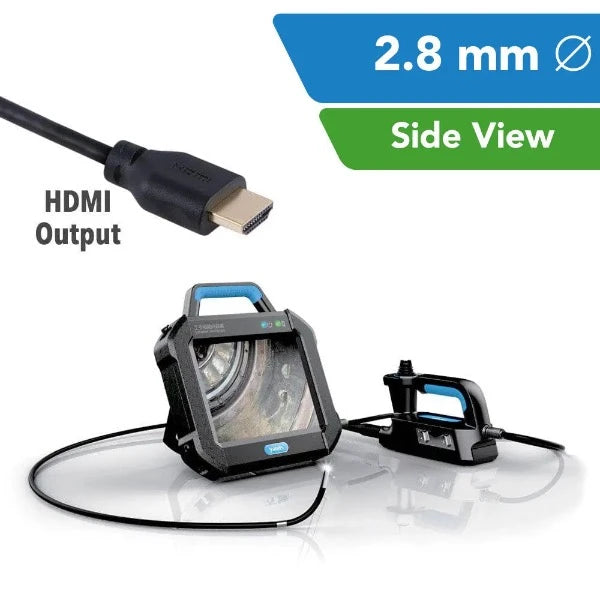

Yateks P Series Industrial Videoscope 2.8 mm OD Side View Near Focus

Yateks USA Vendor Logo SKU: EM18572

• 2.8 mm Outer Diameter
• 3-50 mm Depth of Focus
• 4-Way Motorized Articulation
• 150° Articulation Range
• Resolution (624x500 pixels)
• 8-inch Touch Screen

Yateks - Length: 1 m (3.280')
Kit: Full System
Yateks

Description

Details

Yateks P Series Industrial Videoscope 2.8 mm OD Side View Near Focus

The Yateks P series is one of the most versatile industrial videoscope platforms available, featuring a wide range of interchangeable probe configurations, including variable sizes, lengths, and styles (i.e., dual view / UV option). Great for benchtop use, the system is also fully portable and includes two rechargeable lithium-ion batteries for up to 3 hours of battery life per set. With an 8” HD touchscreen monitor, motorized articulation, and an assortment of multi-functional capabilities, the Yateks P series is the ideal videoscope system for multi-part inspections and specialty applications.

The P series 2.8 mm videoscope offers the highest resolution in its size class at 624 x 504 for a total of over 300,000 total pixels. The 4-way articulation provides added mobility making the 2.8 mm size an excellent option for smaller diameter inspections that demand the highest image quality.

Specifications


Probe
Diameter 2.8 mm
Insertion Tube Length 1, 1.5, or 2 m
Camera Location Side
Resolution
624 x 624 (1:1), 624 x 500 (5:4)
Depth of Field 3 - 50 mm
Field of View 120°
Light Type LED
Light Intensity 8,000 lux
Probe Articulation Range 150±10° for 1 m, 140±10° for 1.5 & 2 m
Control Unit

Dimensions / Weight

246 x 321 x 123 mm / 2.3 kg

Display Screen

8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio)

Control Lever

Electric rocker, 360-degree rotation, articulation lock, automatic set

Functions

Image capture, video recording, playback, articulation, illumination control

Storage

32 GB high-speed SD card (Up to 128 GB)

I/O port

SD card, HDMI port (1024 x 768), charge and mini USB

Battery

Four rechargeable 18650 lithium-ion batteries

Brightness Control

5 level adjustment

Full System

Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter

Compatibility

Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement

Operating System

Real-time multifunctional operating system

User Interface

Touch screen operation menu

File Management

Auto or manual file folder creation, rename files

Image Control

Digital zoom, image and video playback, freeze-frame, flip image, mirror image

Image Format/Video Format

JPEG, AVI

Language

English / Chinese / Korean / German / Russian / Japanese

Color Settings

4 modes for different applications

White Balance

Automatic, manual white balance

Exposure Mode

Automatic, manual

Firmware Update

Via SD card service pack

Monitor Working Temperature

-10~50°

Probe Working Temperature

-20~70°

Relative Humidity

Highest 90%, no condensation

IP Rating

Monitor IP54 / Probe IP67
