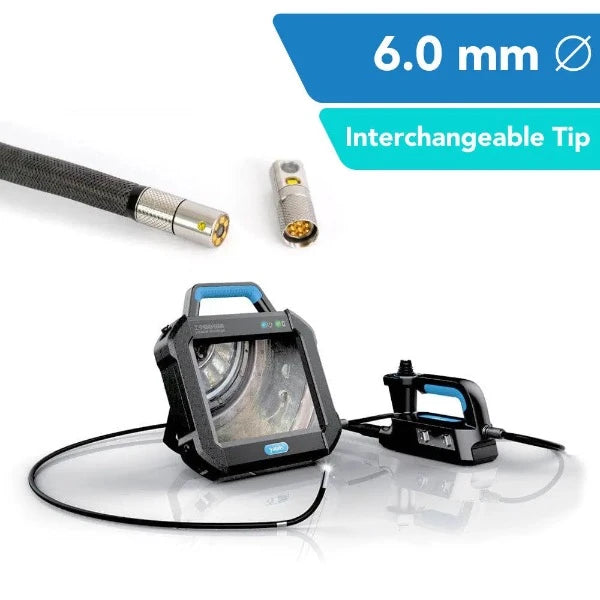

Yateks P Series Industrial Videoscope 6 mm w/ Interchangeable Tip

SKU: EM18770

• 6 mm Outer Diameter
• Interchangeable Tips
• 120º Angle of View
• 7-80 mm Depth of Focus
• 4-Way Motorized Articulation
• 120º-170° Articulation Range *Depending on Length
• Resolution (640 x 480 pixels)
• 8-inch Touch Screen

Yateks - Length: 1 m (3.280')
Kit: Full System
:
Login to see prices

Intertest Cost

Details

Yateks P Series Industrial Videoscope 6 mm w/ Interchangeable Tip

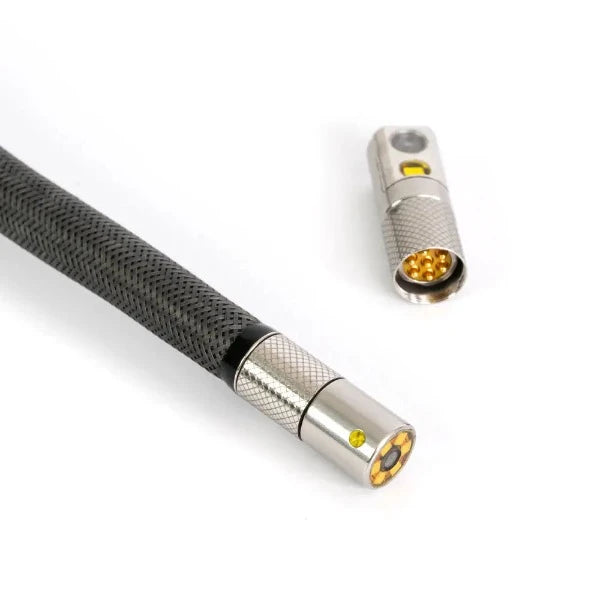

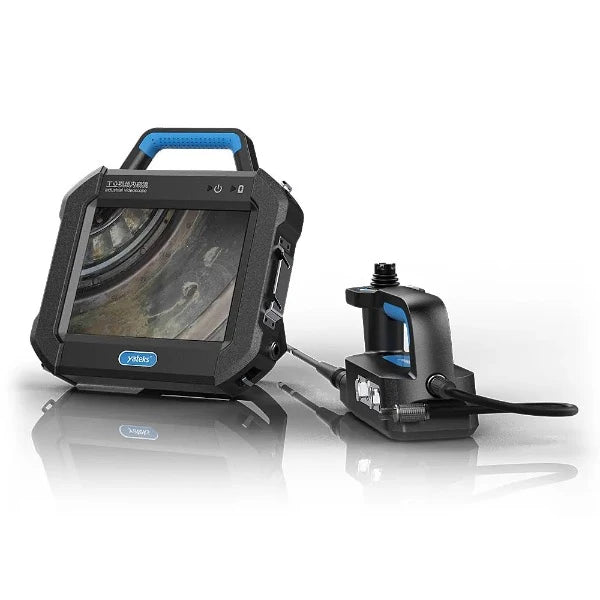

The Yateks P series With Interchangeable Tips is one of the most versatile industrial videoscope platforms. It features various interchangeable probe configurations, including variable sizes, lengths, and styles (i.e., dual view / UV option). The Quick-Change Tip System allows the end user more versatility and control over the standard offering. Great for benchtop use, the system is also fully portable and includes two rechargeable lithium-ion batteries for up to 3 hours of battery life per set. With an 8” HD touchscreen monitor, motorized articulation, and an assortment of multi-functional capabilities, the Yateks P series is the ideal videoscope system for multi-part inspections and specialty applications.
The P series 6mm direct view middle focus videoscope features 4-way motorized articulation and high resolution at 1024 x 768 for nearly 800,000 total pixels, making it a workhorse for a wide range of inspection requirements.

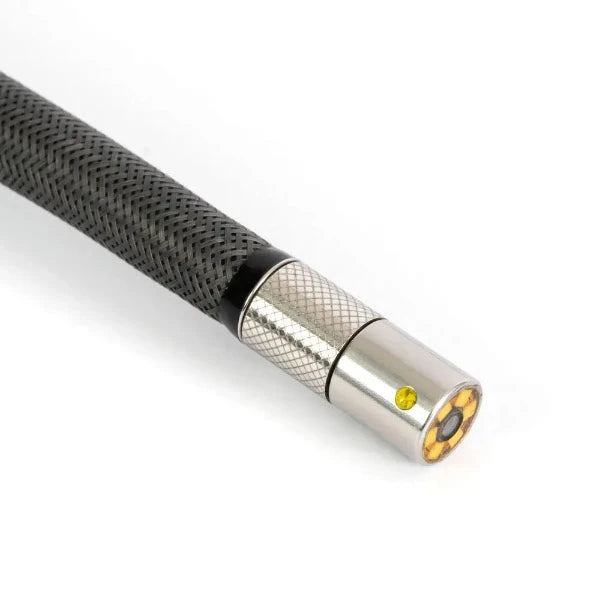

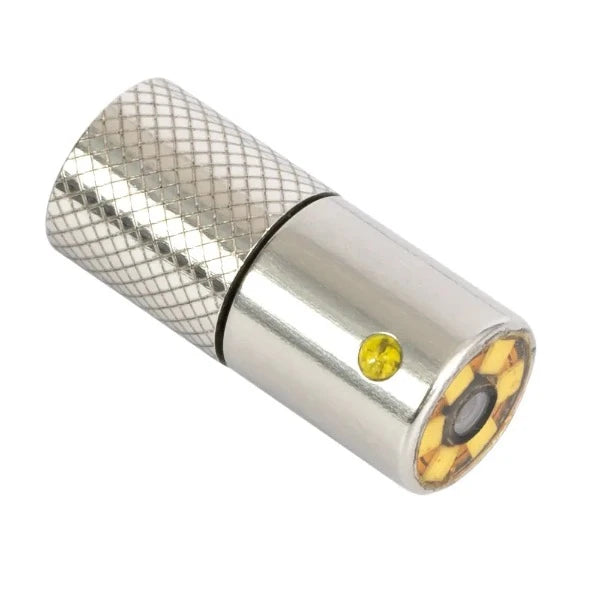

**ONLY THE FORWARD VIEW CAMERA TIP (EM18492) IS INCLUDED WITH ALL OFFERINGS.

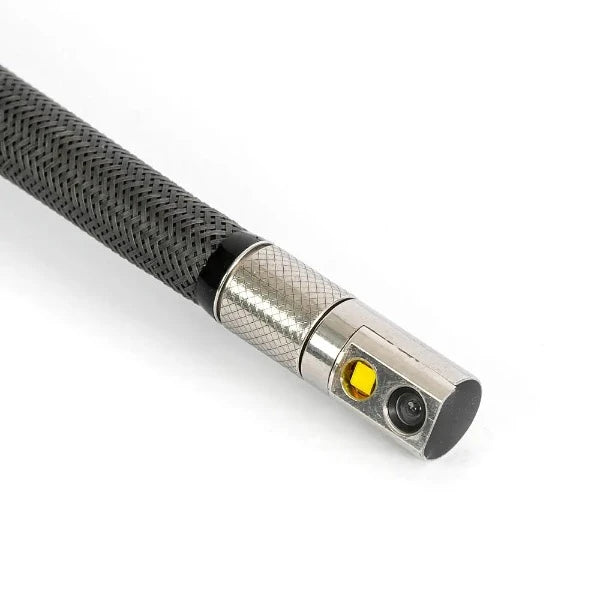

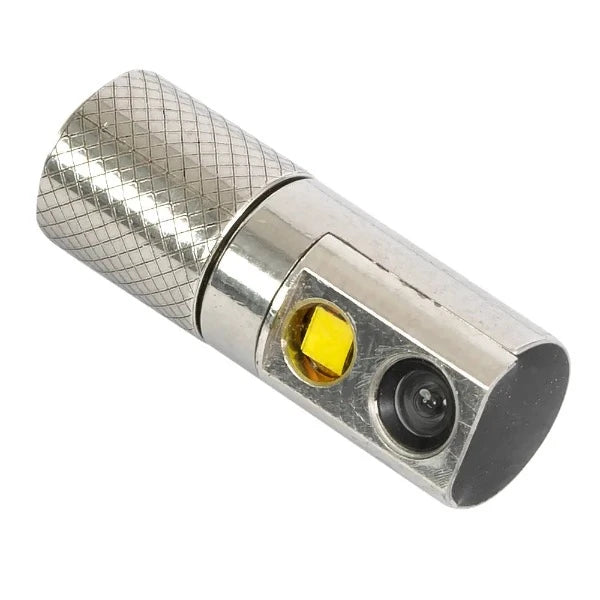

To add the Side View Camera Tip (EM18493), Click Here.

Specifications

Dimensions / Weight

246 x 321 x 123 mm / 2.3 kg

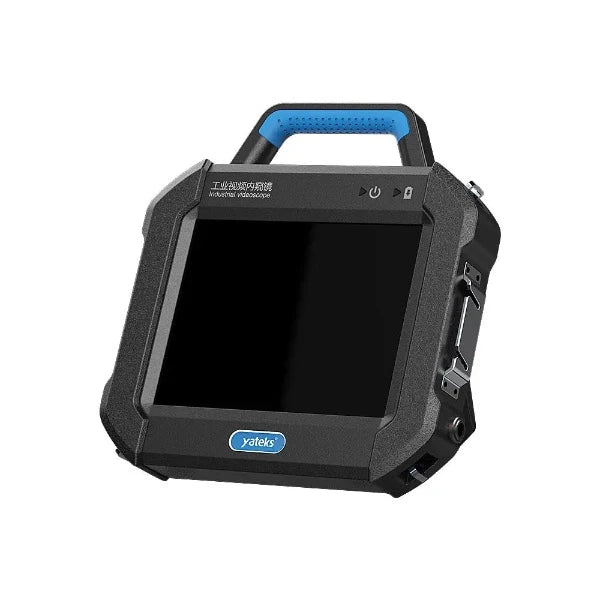

Display Screen

8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio)

Control Lever

Electric rocker, 360-degree rotation, articulation lock, automatic set

Functions

Image capture, video recording, playback, articulation, illumination control

Storage

32 GB high-speed SD card (Up to 128 GB)

I/O port

SD card, HDMI port (1024 x 768), charge and mini USB

Battery

Four rechargeable 18650 lithium-ion batteries

Brightness Control

5 level adjustment

Full System

Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter

Compatibility

Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement

Operating System

Real-time multifunctional operating system

User Interface

Touch screen operation menu

File Management

Auto or manual file folder creation, rename files

Image Control

Digital zoom, image and video playback, freeze-frame, flip image, mirror image

Image Format/Video Format

JPEG, AVI

Language

English / Chinese / Korean / German / Russian / Japanese

Color Settings

4 modes for different applications

White Balance

Automatic, manual white balance

Exposure Mode

Automatic, manual

Firmware Update

Via SD card service pack

Monitor Working Temperature

-10~50°

Probe Working Temperature

-20~70°

Relative Humidity

Highest 90%, no condensation

IP Rating

Monitor IP54 / Probe IP67
