Yateks P+ UV Series Video Borescope 6.0 mm OD Direct View High Resolution

Yateks USA Vendor Logo SKU: EM14741MFG: P610FN-UL-QR

• 6.0 mm Outer Diameter
• Direct View (0° direction of view)
• 4-way Articulation
• UV LED Illumination
• 3-50mm Depth of Focus
• Resolution 720 x 720 pixels
• 8" Touch Screen

Accessories

InterTest UV LED Conformance Certificate for ASTM E3022
InterTest UV LED Conformance Certificate for ASTM E3022
Yateks - Length: 1.0 m (3.28')
Kit: Full System

Description

Details

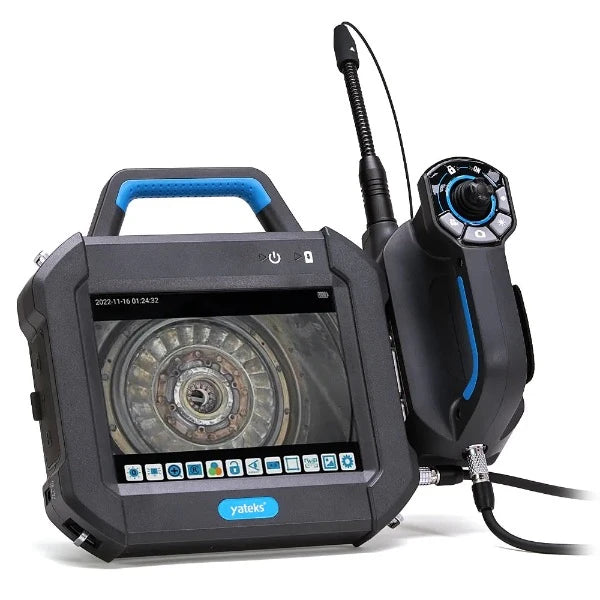

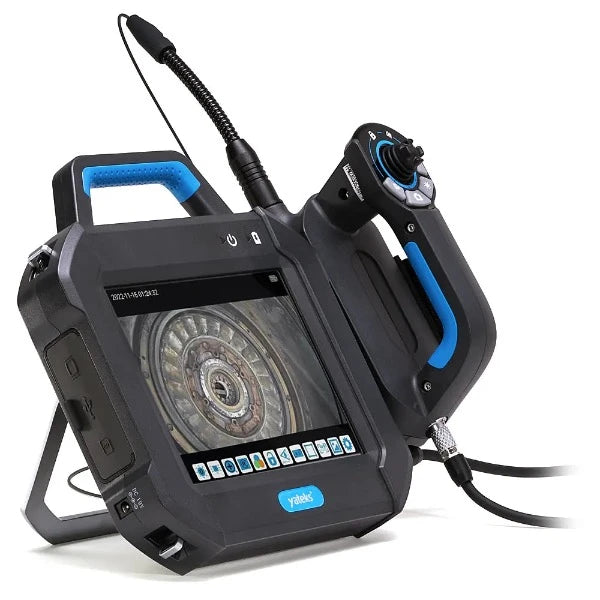

Yateks P+ UV Series Industrial Videoscope 6.0 mm OD Direct View

The Yateks P+ UV Series Industrial Videoscope is a powerful, versatile industrial videoscope platform. The system offers multiple interchangeable probe configurations with variable sizes, lengths, styles (i.e., dual view / UV options), and articulation. Great for benchtop use, the P+ UV Series is also fully portable and includes two sets of rechargeable lithium-ion batteries for up to 3 hours of battery life per set.

With an 8” HD touchscreen monitor, motorized articulation, and various multi-functional capabilities, the Yateks P+ UV series is the ideal videoscope system for multi-part inspections and specialty applications. Use the P+ Series in aerospace/aviation, power generation, or any complex part remote visual inspection (RVI) applications.

New and improved features of the Yateks P+ Series include:

  • P+ Series monitor is backward compatible with all Yateks P Series Probes
  • Increased frame rates from 20-25fps to 30fps
  • Optimized software interface and operation modes
  • USB-C port for fast charging and file transfer
  • More compatibility with different lens models, such as interchangeable lenses and 2 MP models

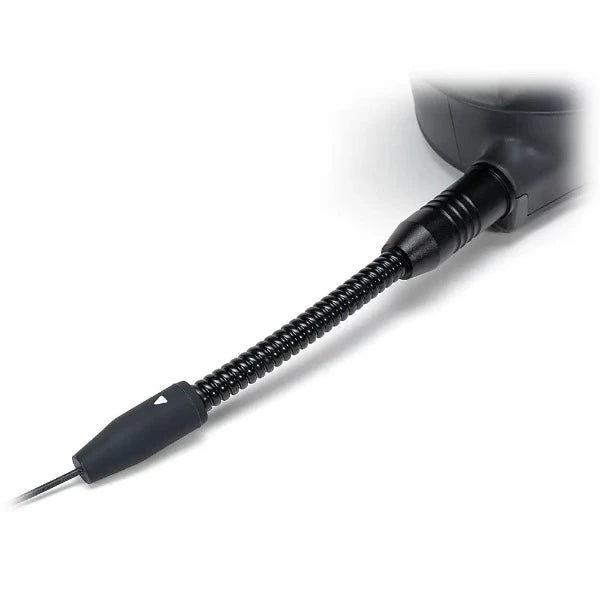

  • Strain relief on probes for added durability

The Yateks P+ UV Series 6.0 mm videoscope offers high resolution at 720 x 720 (1:1) for over 518,000 total pixels and has motorized 4-way articulation for maximum surface inspection coverage. The distal tip UV LEDs make this P+ UV Series ideal for magnetic particle inspection (MPI) and fluorescent penetrant inspection (FPI). Coupled with its 6.0 mm size, the P+ UV Series is a powerful inspection tool for small-diameter applications that demand the highest image quality.

Specifications

Resolution 720 x 720 (1:1) pixels
Direction of View Direct 0°
Depth of Field (DOF) 3 - 50mm
Field of View (FOV) 120°
Illumination Source / Type LED / Ultra Violet
Intensity 60mW, 365 nm wavelength
Probe Articulation Range 170°±10° (1 & 1.5 m lengths), 150°±10° (2.0 m length)

Dimensions / Weight

246 x 321 x 123 mm / 2.3 kg

Display Screen

8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio)

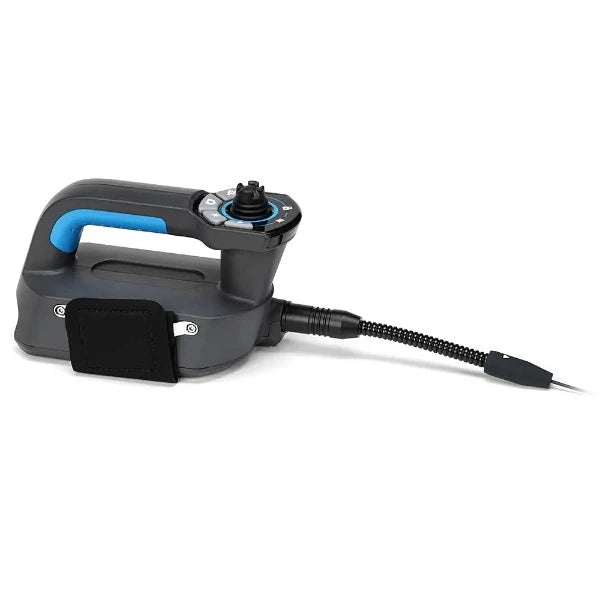

Control Lever

Electric rocker, 360-degree rotation, articulation lock, automatic set

Functions

Image capture, video recording, playback, articulation, illumination control

Storage

32 GB high-speed SD card (Up to 128 GB)

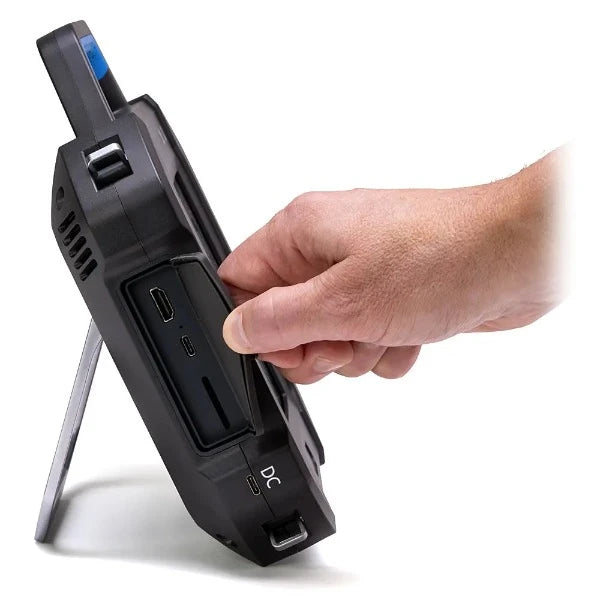

I/O port

SD card, HDMI port (1024 x 768), charge and mini USB

Battery

Four rechargeable 18650 lithium-ion batteries

Brightness Control

5 level adjustment

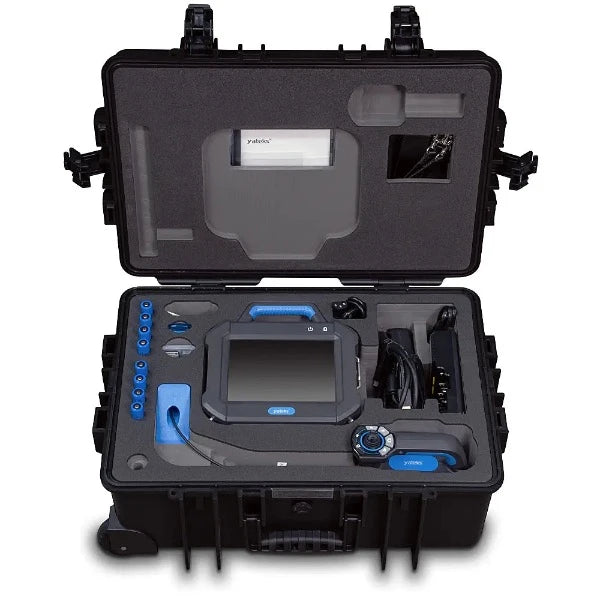

Full System

Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter

Compatibility

Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement

Operating System

Real-time multifunctional operating system

User Interface

Touchscreen operation menu

File Management

Auto or manual file folder creation, rename files

Image Control

Digital zoom, image and video playback, freeze-frame, flip image, mirror image

Image Format/Video Format

JPEG, AVI

Language

English / Chinese / Korean / German / Russian / Japanese

Color Settings

4 modes for different applications

White Balance

Automatic, manual white balance

Exposure Mode

Automatic, manual

Firmware Update

Via SD card service pack

Monitor Working Temperature

-10~50°

Probe Working Temperature

-20~70°

Relative Humidity

Highest 90%, no condensation

IP Rating

Monitor IP54 / Probe IP67


UV Output Data

The data below represents typical results from new units. Results are intended as a general informational benchmark and may vary.

Distance to Target (inches)

UV Intensity (μW/cm^2)

UV Peak Output Wavelength (nm)

0.50 14,000 367.5
1.00 5,000
1.50 2.400
2.00 1,400


*The unit used for the test: EM14743-00IT - Yateks P+ UV Series 6.0 mm OD Direct View x 2.0 m length
