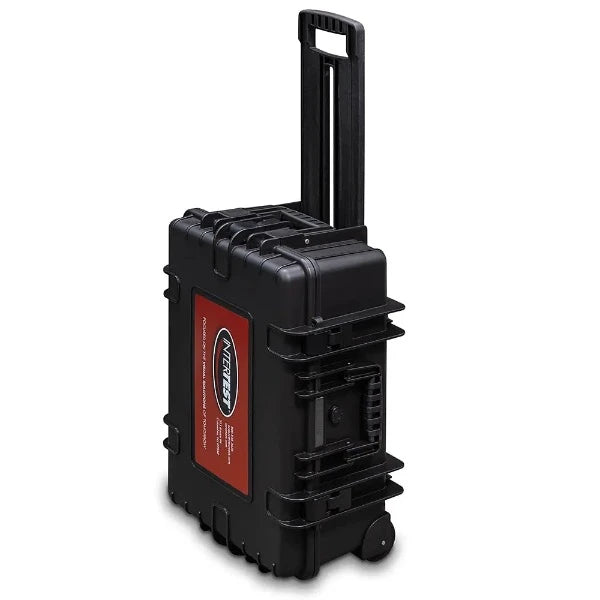

The Yateks P+ UV Series Industrial Videoscope is a powerful, versatile industrial videoscope platform. The system offers multiple interchangeable probe configurations with variable sizes, lengths, styles (i.e., dual view / UV options), and articulation. Great for benchtop use, the P+ UV Series is also fully portable and includes two sets of rechargeable lithium-ion batteries for up to 3 hours of battery life per set.

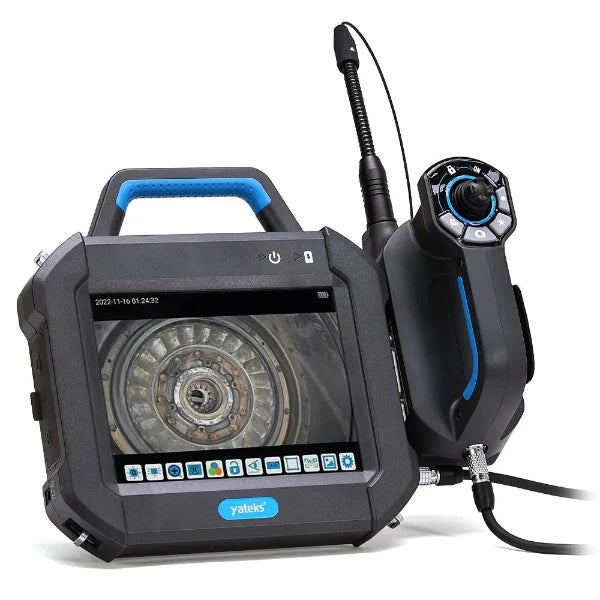

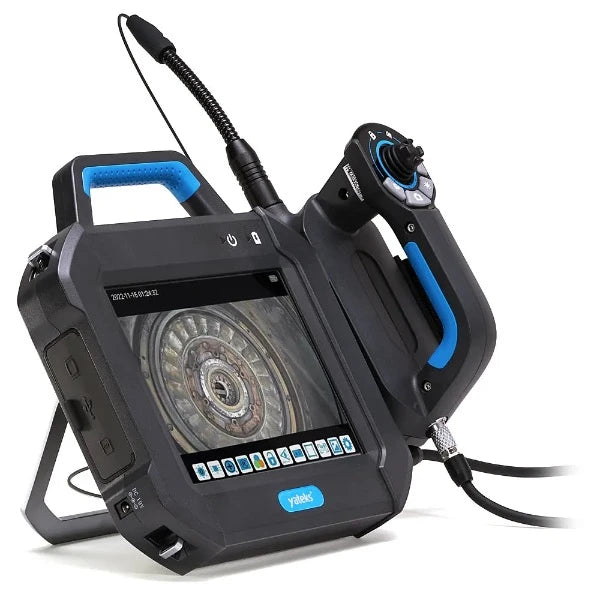

With an 8” HD touchscreen monitor, motorized articulation, and various multi-functional capabilities, the Yateks P+ UV series is the ideal videoscope system for multi-part inspections and specialty applications. Use the P+ Series in aerospace/aviation, power generation, or any complex part remote visual inspection (RVI) applications.
New and improved features of the Yateks P+ Series include:
- P+ Series monitor is backward compatible with all Yateks P Series Probes
- Increased frame rates from 20-25fps to 30fps
- Optimized software interface and operation modes
- USB-C port for fast charging and file transfer
- More compatibility with different lens models, such as interchangeable lenses and 2 MP models

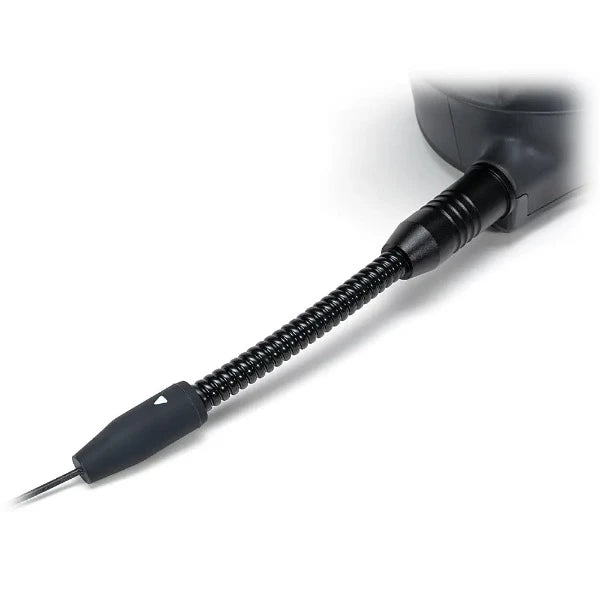

- Strain relief on probes for added durability

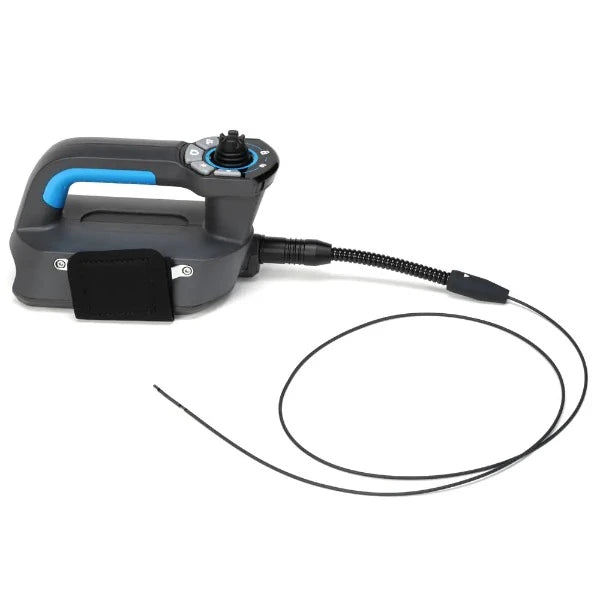

The Yateks P+ UV Series 3.9 mm videoscope offers high resolution at 624 x 624 (1:1) or 624 x 500 (5:4) for 389,000 total pixels and has motorized 4-way articulation for maximum surface inspection coverage. The distal tip UV LEDs make this P+ UV Series ideal for magnetic particle inspection (MPI) and fluorescent penetrant inspection (FPI). Coupled with its 3.9 mm size, the P+ UV Series is a powerful inspection tool for small diameter applications that demand the highest image quality.
Specifications
| Resolution | 624 x 624 (1:1) or 624 x 500 (5:4) pixels |
| Direction of View | Direct 0° |
| Depth of Field (DOF) | 3 - 50mm |
| Field of View (FOV) | 120° |
| Illumination Source / Type | LED / Ultra Violet |
| Intensity | 35mW, 365 nm wavelength |
| Probe Articulation Range | 170°±10° (1 & 1.5 m lengths), 150°±10° (2.0 m length), 120°±10° (3.0 m length) |
|
Dimensions / Weight |
246 x 321 x 123 mm / 2.3 kg |
|
Display Screen |
8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio) |
|
Control Lever |

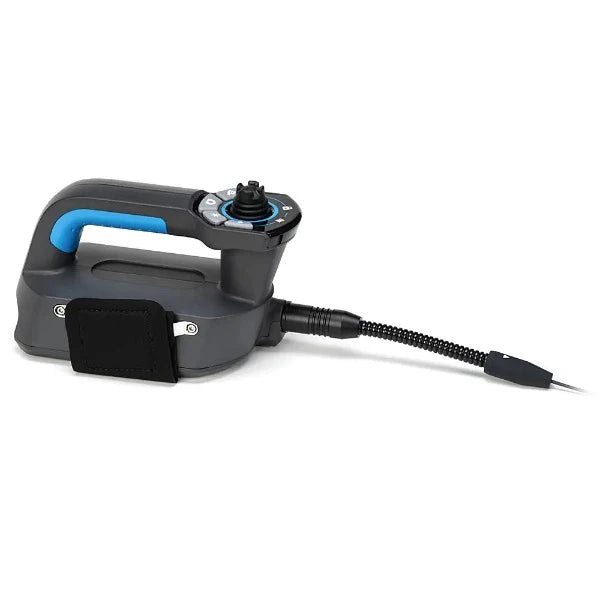

Electric rocker, 360-degree rotation, articulation lock, automatic set |
|
Functions |
Image capture, video recording, playback, articulation, illumination control |
|
Storage |
32 GB high-speed SD card (Up to 128 GB） |
|
I/O port |

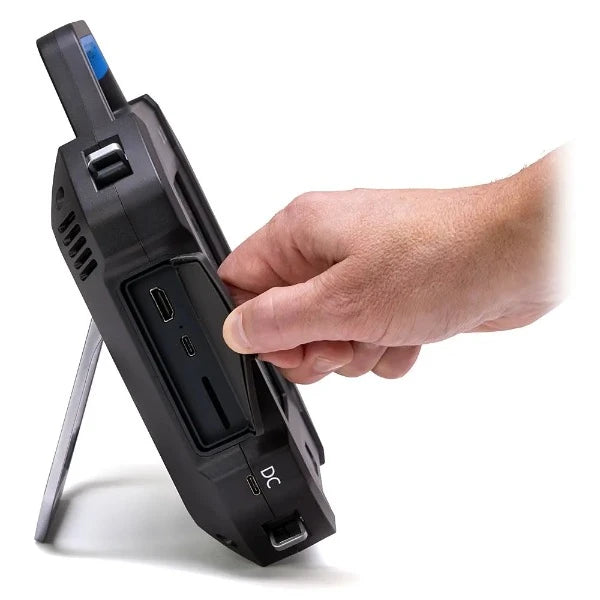

SD card, HDMI port (1024 x 768), charge and mini USB |
|
Battery |
Four rechargeable 18650 lithium-ion batteries |
|
Brightness Control |
5 level adjustment |
|
Full System |

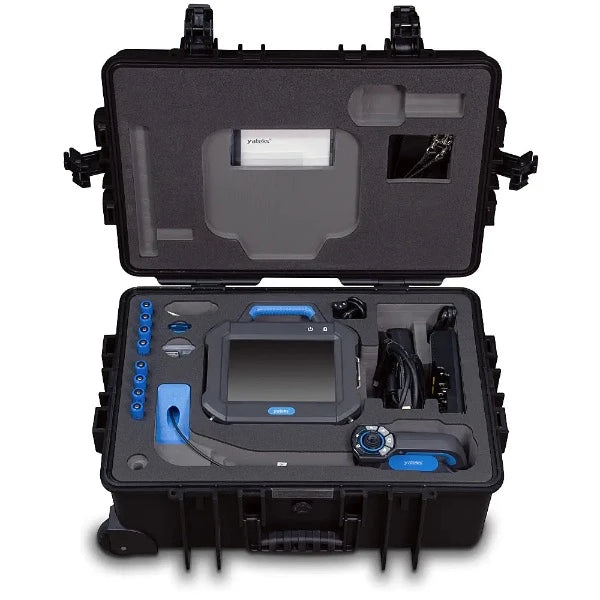

Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter |
|
Compatibility |
Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement |
|
Operating System |
Real-time multifunctional operating system |
|
User Interface |
Touchscreen operation menu |
|
File Management |
Auto or manual file folder creation, rename files |
|
Image Control |
Digital zoom, image and video playback, freeze-frame, flip image, mirror image |
|
Image Format/Video Format |
JPEG, AVI |
|
Language |
English / Chinese / Korean / German / Russian / Japanese |
|
Color Settings |
4 modes for different applications |
|
White Balance |
Automatic, manual white balance |
|
Exposure Mode |
Automatic, manual |
|
Firmware Update |
Via SD card service pack |
|
Monitor Working Temperature |
-10～50° |
|
Probe Working Temperature |
-20～70° |
|
Relative Humidity |
Highest 90%, no condensation |
|
IP Rating |
Monitor IP54 / Probe IP67 |
UV Output Data
The data below represents typical results as seen from new units. Results are intended as a general informational benchmark and may vary.
| Distance to Target (inches) |
UV Intensity (μW/cm^2) |
UV Peak Output Wavelength (nm) |
| 0.50 | 3,750 | 368.5 |
| 1.00 | 1,200 | |
| 1.50 | 577 | |
| 2.00 | 344 |
*The unit used for the test: EM19049-00IT - Yateks P+ UV HD Series 3.9 mm OD Direct View x 2.0 m length
