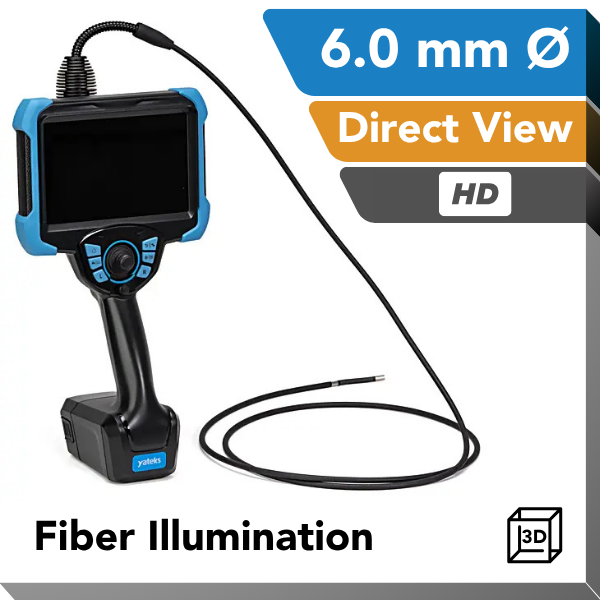

The Yateks Realta 3D Measurement Video Borescope System is an industrial video borescope system with advanced 3D measuring and mapping software features. Along with a 7" Full HD (1920 x 1080 pixel) IPS monitor, 4-way probe articulation, large-capacity lithium-ion battery, and replaceable insertion tubes, the Yateks Realta Video Borescope makes a complete inspection and analytical tool for a variety of industries, including aerospace, power generation, and general manufacturing quality assurance.
3D Measurement & Mapping Software
Speed up the inspection process with the Yateks Realta Video Borescope's 3D stereo measurement software. The embedded technology generates a 3D surface map with cursor points across the inspected part or surface image. Operators can then quickly make measurements of length, perpendicular distance, depth, multiple line segments, and area.
7" HD IPS Monitor with Multi-Display Function
The Realta 3D Measurement Video Borescope boasts a full high-definition IPS monitor, allowing users to see 3D measurements/mapping and live images with ultra-high clarity. The monitor comes with touchscreen capability for intuitive software operation and quick measurements at your fingertips. The menu screen and features are intuitive, as expected from any Yateks video borescope product.
Users can simultaneously broadcast the monitor image on smartphones or TVs via wireless Bluetooth signal or wired mini HDMI for multi-viewing and sharing.
4-way Articulation Joystick Controls
The Realta 3D has outstanding 4-way mechanical articulation of the probe tip with intuitive joystick controlled motion. Additionally, the articulation mechanism provides 360° of mechanical steering and automatic locking for precise probe positioning.
Rechargeable Lithium-Ion Battery
The removable and rechargeable lithium battery pack provides up to 4 hours of continuous runtime.
Durable & Replaceable Video Probes
The Realta 3D Measurement Video Borescope uses a 4-layer insertion tube made of durable tungsten alloy and braided steel wire. The probe is waterproof and IP67-rated for the harshest and most rugged inspection conditions. The probe comes in a 0° direct view.
The insertion probe is modular and can be quickly replaced if damage occurs. Keeping multiple insertion probes on hand in the rare case of damage keeps inspection operations running smoothly and reduces downtime.
InterTest, Inc. conducts all service and repairs for Yateks video borescopes on site. Submit a ticket on the Yateks USA Service & Repair Center page.
Specifications
| System | |
|
Dimensions / Weight |
364 x 198.5 x 132.5 mm / < 2 kg |
|
Display Screen |
7″ IPS industrial HD touch LCD screen with 1920 x 1080 resolution (16 : 9 aspect ratio) |
|
Control Lever |
Mechanical rocker, 360-degree rotation, articulation lock, automatic set, adjustable direction fine-tuning |
|
Main Functions |
Photo, video, light source brightness adjustment, screen brightness adjustment, zoom in/out, screen flip, color inversion, screen freeze, color mode adjustment, aspect ratio toggle, grid measurement, automatic white balance, image browsing, lock fine-tuning, menu |
|
Memory Storage |
128 GB internal hard drive, 64 GB USB flash drives (can use up to 256 GB) |
|
I/O port |
2 x USB 2.0 A ports, USB-C port, and audio out port |
| Video Output | Mini HDMI interface, WiFi |
|
Battery |
Removable independently rechargeable lithium-ion battery pack |
| Software | |
|
Operating System |
Multitask intelligent OS, menu-driven, key operation, touchscreen UI |
| File Management | Image/video playback, deletion, post formatting and renaming, text annotation |
| Languages | English, Simplified Chinese, French, Spanish, Russian, Japanese, Korean, Traditional Chinese, German, Portuguese |
| Image Control | Screen freeze, image flip |
| Digital Zoom | 1-100 times |
| Picture/Video Format |
JPG, PNG / AVI, MP4 (with date/time stamp)
|
| Color Settings |
Near, medium, far, custom color modes
|
| White Balance | Auto and manual white balance |
|
3D Measurement |
Point to point, point to line, point to area, area/line, measurement margin of error <5% |
|
Insertion Probe |
|
|
Diameter |
6.0 mm |
|
Lengths |
1.0, 1.5, 2.0, or 3.0 m |
| Illumination |
Direct View: White Fiber Illumination (100,000 lux) |
|
Depth of Field |
8-150 mm |
|
Material |
Steel braided wire, tungsten alloy 4-layer tube |
|
Monitor Working Temperature |
-10～50° |
|
Probe Working Temperature |
-20～70° |
|
Relative Humidity |
Highest 90%, no condensation |
|
IP Rating |
Monitor IP54 / Probe IP67 |
