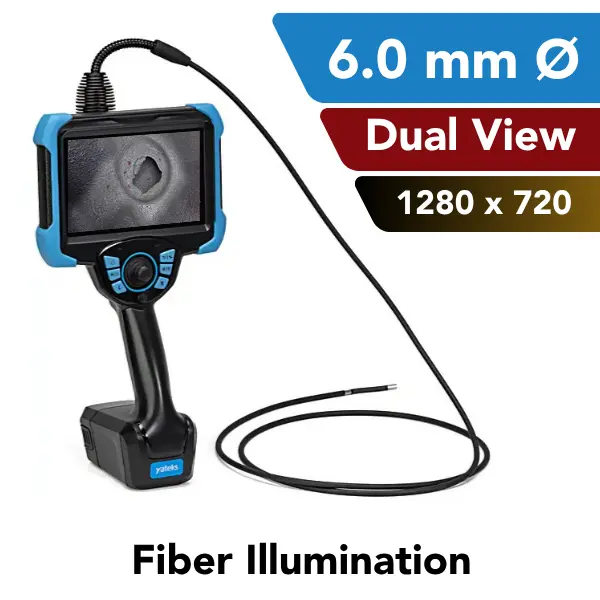

Black and blue video borescope with a flexible black probe, shown on a white background with feature callouts including '6.0 mm Ø', 'Dual View', '1280 x 720', and 'Fiber Illumination'.

Yateks Realta 3D Measurement Borescope with Detachable Probes and articulation - InterTest

Yateks Realta 3D Measurement Borescope with Interchangeable Probes and Four way articulation - InterTest

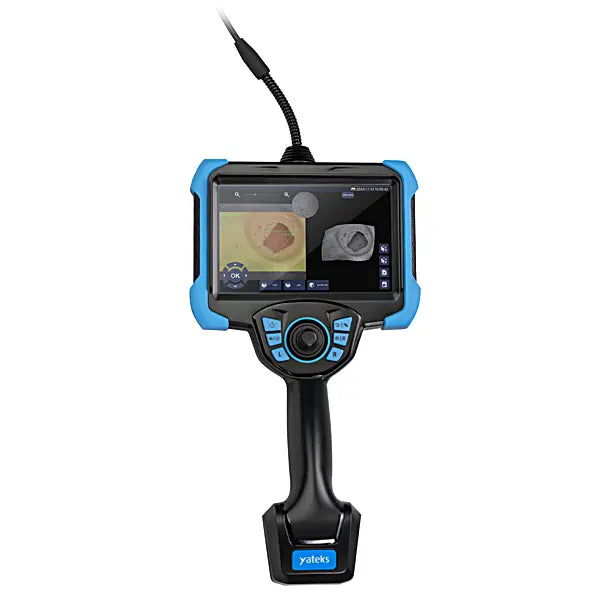

Yateks Realta 3D Measurement Borescope Touchscreen Monitor- InterTest

Yateks Realta 3D Measurement Borescope Touchscreen Monitor and Articulating Probe- InterTest

Yateks Realta 3D Measurement Borescope back Probe attached - InterTest

Yateks Realta Handheld Video Borescope - 6.0 mm OD Dual View Fiber Illumination (1280 x 720)

Yateks Realta 3D Measurement Borescope Side View of Ports- InterTest

Yateks Realta 3D Measurement Borescope with Interchangeable probes and articulation - InterTest

Yateks Realta Handheld Video Borescope - 6.0 mm OD Dual View Fiber Illumination (1280 x 720)

Name: Yateks Realta Handheld Video Borescope - 6.0 mm OD Dual View Fiber Illumination (1280 x 720)
Brand: Yateks
SKU: EM12718
Availability: InStock

SKU: EM12718MFG: R6110FM-WF-KD

• 6.0 mm Outer Diameter
• Dual View (0° & 90°)
• 1280 x 720 pixel Resolution
• All-way Motorized Articulation
• Fiber Illumination (Direct: 60,000 lux, Side: 30,000 lux)
• 8-150 mm Depth of Field (Direct view; varies by view)

Length: 1.0 m (3.28')

Kit: Full System

Variant

Quantity:

Details

The Yateks Realta Video Borescope System is an industrial video borescope with a 7" Full HD (1920 x 1080 pixels) IPS monitor, all-way probe articulation, a large-capacity lithium-ion battery, and replaceable probes. The Yateks Realta Video Borescope is a complete inspection and analytical tool for a variety of industries, including aerospace, power generation, and general manufacturing quality assurance.

7" HD IPS Monitor with Multi-Display Function

The Realta Video Borescope boasts a full high-definition IPS monitor, allowing users to see live images with ultra-high clarity. The monitor includes touchscreen capability for intuitive operation at your fingertips.

Users can simultaneously broadcast the monitor image on smartphones or TVs via a wireless Bluetooth signal or a wired mini HDMI for multi-viewing and sharing.

All-way Articulation Joystick Controls

The Realta has outstanding all-way mechanical articulation of the probe tip with intuitive joystick-controlled motion. Additionally, the articulation mechanism provides 360° of mechanical steering and automatic locking for precise probe positioning.

Rechargeable Lithium-Ion Battery

The removable and rechargeable lithium battery pack provides up to 4 hours of continuous runtime.

Durable & Replaceable Video Probes

The Realta Video Borescope uses a 4-layer insertion tube made of durable tungsten alloy and braided steel wire. The probe is waterproof and IP67-rated for the harshest and most rugged inspection conditions. The probe comes in a dual view (both 0° direct view and 90° side view) and offers brighter illumination than LED versions.

The insertion probe is modular and can be quickly replaced if damage occurs. Keeping multiple insertion probes on hand in the rare case of damage keeps inspection operations running smoothly and reduces downtime.

InterTest, Inc. conducts all service and repairs for Yateks video borescopes on site. Submit a ticket on the Yateks USA Service & Repair Center page.

Specifications

System
Display screen	7"IPS ,1920*1080（16：9), Industrial HD touch LCD screen
Main function	Photo, video, light source brightness adjustment, screen brightness adjustment, zoom in and out, screen flip, color inversion, screen freeze, color mode adjustment, aspect ratio, grid measurement, automatic white balance, image browsing, lock fine-tuning, menu
Joystick control	Motor rocker for 360° rotation
Steering control	Automatic set, direction fine-tuning adjustable
Memory	Built-in 128G + expansion 64G USB flash drive (up to 256G expansion)
Data I/O port	Two USB2.0 host A ports, Type-C ports, and headset ports
Video output	Mini HDMI interface, WIFI interface
Battery	Removable, independently rechargeable battery pack
Battery	≥4h
Operating mode	The host and the probe can be separated, and one host can be equipped with more than one probe.
Insertion Probe
Diameter	6.0 mm
Lengths	1.0 m, 1.5 m, 2.0 m, & 3.0 m
Direction of View	Dual View (0° & 90°)
Resolution	F: 1280 x 720 pixels S: 1280 x 720 pixels
Illumination	Distal Fiber Illumination F: 60,000 lux S: 30,000 lux
Depth of Field	F: 8-150 mm S: 5-50 mm
Angle of View	F: 120° ±10° S: 120° ±10°
Material	Steel braided wire, tungsten alloy 4-layer tube
Monitor Working Temperature	-10～50°
Probe Working Temperature	-20～70°
Relative Humidity	Highest 90%, no condensation
IP Rating	Monitor IP54 / Probe IP67
