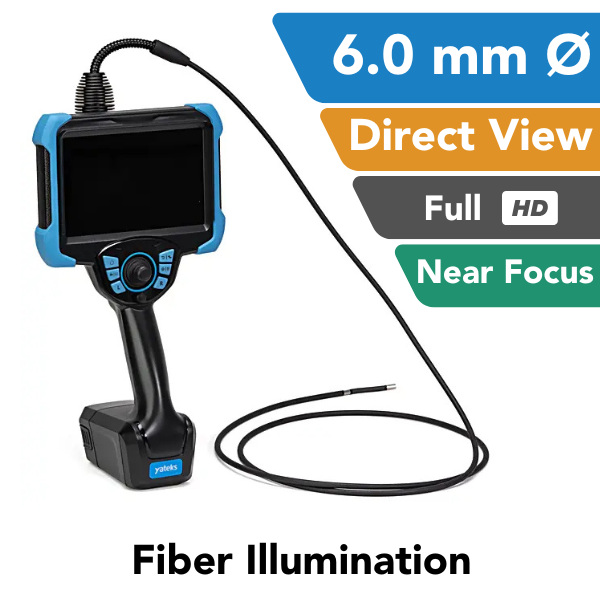

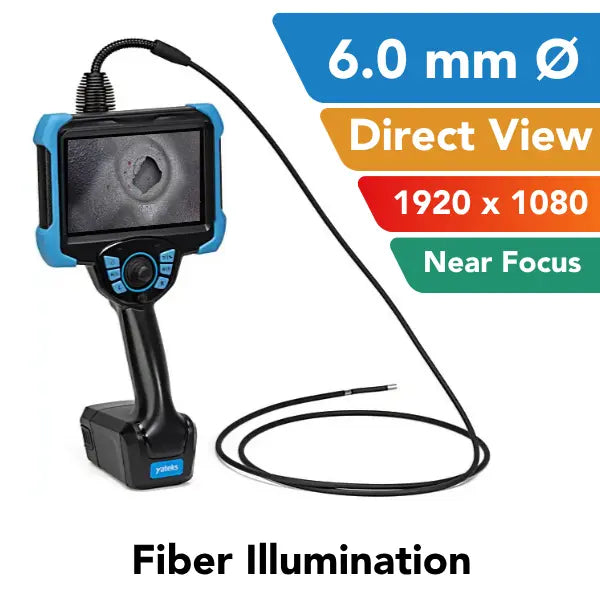

The Yateks Realta Video Borescope System is an industrial video with a 7" Full HD (1920 x 1080 pixel) IPS monitor, 4-way probe articulation, large-capacity lithium-ion battery, and replaceable probes. The Yateks Realta Video Borescope is complete inspection and analytical tool for a variety of industries, including aerospace, power generation, and general manufacturing quality assurance.
7" HD IPS Monitor with Multi-Display Function
The Realta Video Borescope boasts a full high-definition IPS monitor, allowing users to see live images with ultra-high clarity. The monitor comes with touchscreen capability for intuitive software operation at your fingertips.
Users can simultaneously broadcast the monitor image on smartphones or TVs via wireless Bluetooth signal or wired mini HDMI for multi-viewing and sharing.
4-way Articulation Joystick Controls
The Realta has outstanding 4-way mechanical articulation of the probe tip with intuitive joystick controlled motion. Additionally, the articulation mechanism provides 360° of mechanical steering and automatic locking for precise probe positioning.
Rechargeable Lithium-Ion Battery
The removable and rechargeable lithium battery pack provides up to 4 hours of continuous runtime.
Durable & Replaceable Video Probes
The Realta Video Borescope uses a 4-layer insertion tube made of durable tungsten alloy and braided steel wire. The probe is waterproof and IP67-rated for the harshest and most rugged inspection conditions. The probe comes in a 90° side view.
The insertion probe is modular and can be quickly replaced if damage occurs. Keeping multiple insertion probes on hand in the rare case of damage keeps inspection operations running smoothly and reduces downtime.
InterTest, Inc. conducts all service and repairs for Yateks video borescopes on site. Submit a ticket on the Yateks USA Service & Repair Center page.
Specifications
|
System |
|
|
Display screen |
7”IPS ,1920*1080（16：9）, Industrial HD touch LCD screen |
|
Main function |
Photo, video, light source brightness adjustment, screen brightness adjustment, zoom in and out, screen flip, color inversion, screen freeze, color mode adjustment, aspect ratio, grid measurement, automatic white balance, image browsing, lock fine-tuning, menu |
|
Joystick control |
Motor rocker for 360°rotation |
|
Steering control |
automatic set, direction fine tuning adjustable |
|
Memory |
Built-in 128G + expansion 64G USB flash drive (up to 256G expansion) |
|
Data I/O port |
Two USB2.0 host A ports, Type-C ports, and headset ports |
|
Video output |
Mini HDMI interface, WIFI interface |
|
Battery |
Removable, independently rechargeable battery pack |
|
Battery |
≥4h |
|
Operating mode |
The host and the probe can be separated, and one host can be equipped with more than one probe. |
|
Insertion Probe |
|
|
Diameter |
6.0 mm |
|
Lengths |
1.0, 1.5, 2.0, or 3.0 m |
|
Direction of View |
Forward |
|
Resolution |
1920 x 1080 |
|
Illumination |
White Fiber Illumination (80,000 lux) |
|
Depth of Field |
3-80 mm |
|
Angle of View |
110° |
|
Material |
Steel braided wire, tungsten alloy 4-layer tube |
|
Monitor Working Temperature |
-10～50° |
|
Probe Working Temperature |
-20～70° |
|
Relative Humidity |
Highest 90%, no condensation |
|
IP Rating |
Monitor IP54 / Probe IP67 |
