Z3 Technology FV2K-13A Dual Camera Full HD Video Encoder

Z3 Vendor Logo SKU: EM19287 MFG: FV2K-13A

• LVDS and CVBS inputs
• Up to 1080p/60 resolution
• Control and stream video over IP and record simultaneously
• High Quality/Low Latency encoding
• Recording to USB, micro-SD or NFS
• H.265 or H.264 video codecs

REQUIRES CABLE SET FOR OPERATION

Choose A Cable Set

Z3

Description

Details

Z3 Technology FV2K-13A Dual Camera Full HD Video Encoder

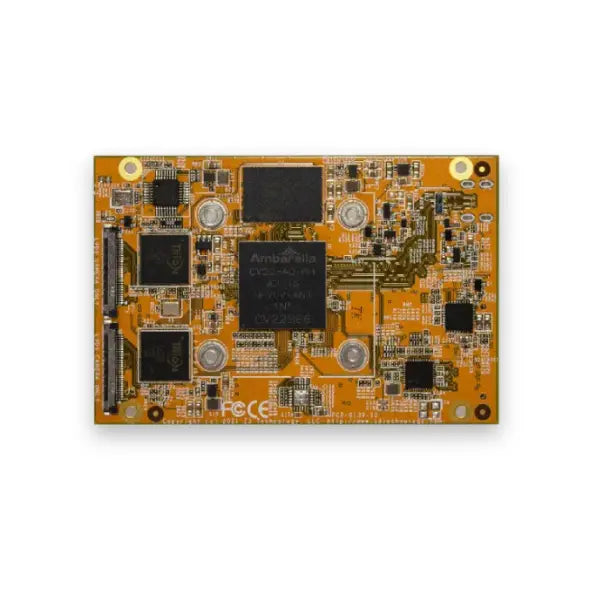

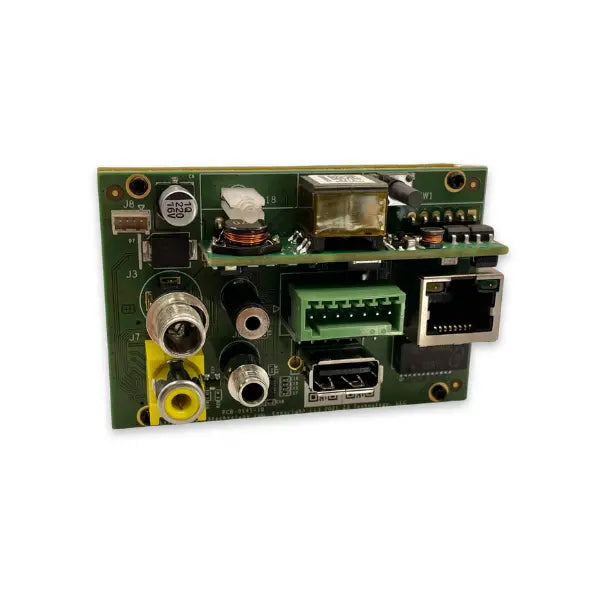

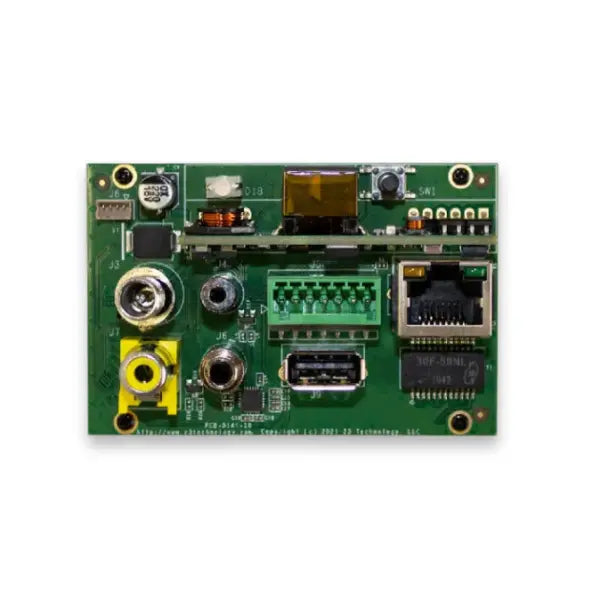

The Z3 Technology FV2K-13A is a Full HD encoder board allowing for dual integration of a visible camera paired with an infrared or night vision camera. Users can simultaneously control, stream, and record video from integrated cameras over IP.

The FV2K-13A can be powered by external 12 VDC or via power over ethernet (PoE), making the FV2K-13A encoder versatile in almost any network OEM camera system.

The FV2K-13A design is ideal for dual-camera UAV drone surveillance and inspection, surveillance, and industrial applications.


Specifications

HD and SD IR Formats

LVDS, NTSC/PAL/RS170

Recording

To USB, micro-SD or NFS

Additional Interfaces

GigE, Audio Input, RS-485, Micro-HDMI Passthrough, PoE,
Composite Output

Video Codecs

H.265 or H.264

Encoding Resolutions

1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA

Output Formats

RTP, RTSP, MPEG-2 TS and RTMP

Encoder Board Size

75 x 50 x 33 mm (2.95 x 1.97 x 1.30 in)

Encoder Board Weight

73 g

Power Consumption

4.5W typical while encoding two cameras in H.265 video at 1080p60

Power Supply

12V DC or PoE 802.3af/at class 0


Downloads

FV2K-13A Product Brief
