Z3 Technology FV2K-15A Dual Camera Full HD Video Encoder

Z3 Vendor Logo SKU: EM19284 MFG: FV2K-15A

• Dual LVDS or LVDS & composite inputs
• Up to 1080p/60 resolution
• 100 Mbps ethernet interface
• Recording to micro-SD or NFS
• H.265, H.264, MJPEG video codecs

REQUIRES CABLE SET FOR OPERATION

Choose A Cable Set

Z3

Description

Details

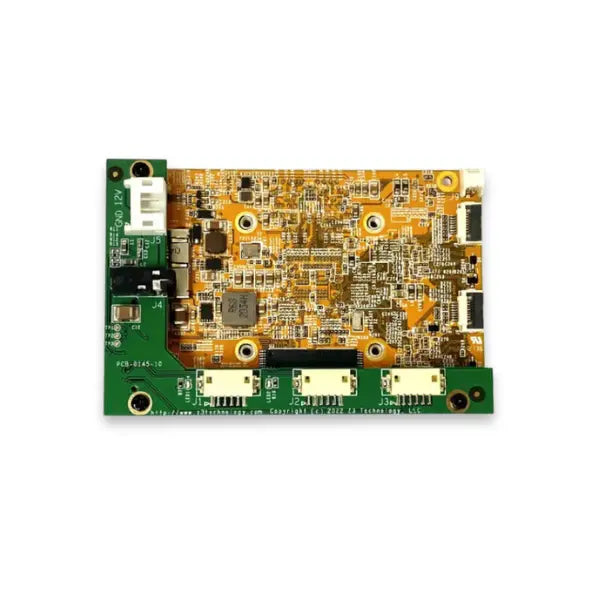

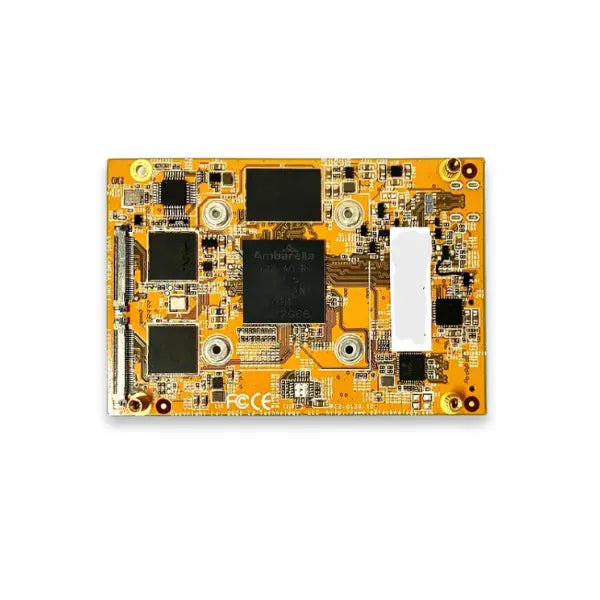

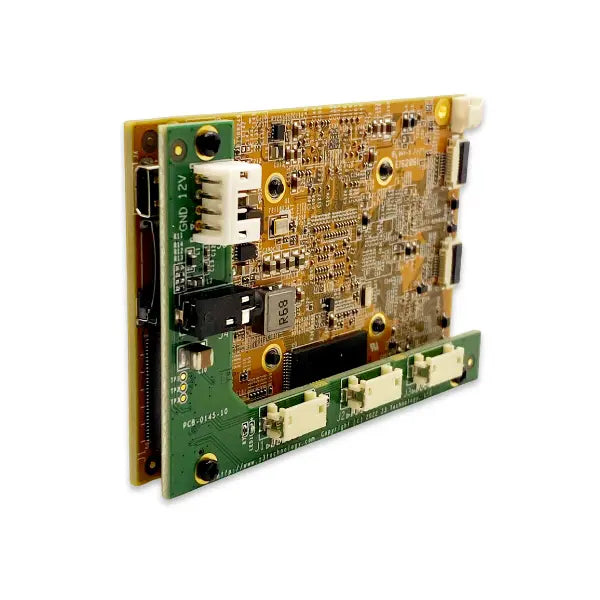

Z3 Technology FV2K-15A Dual Camera Full HD Video Encoder

The Z3 Technology FV2K-15A is a lightweight dual camera Full HD encoder board allowing for dual integration of a visible camera paired with an infrared or night vision camera. The encoder lets integrated cameras stream over IP while recording to a micro-SD card.

This compact design only uses 4.5 watts of power when streaming from 2 cameras. The FV2K-15A is preloaded with software for full functionality out-of-the-box.

The FV2K-15A design is ideal for dual-camera UAV drone surveillance and inspection, surveillance, and industrial applications.

Specifications

HD and SD IR Formats

LVDS and Composite

Recording

To micro-SD or NFS

Additional Interfaces

100 Mbps Ethernet, Micro-HDMI Passthrough, Composite Output, LVTTL UART x 2 , GPIO x 2, Micro-SD card

Video Codecs

H.265, H.264, MJPEG

Encoding Resolutions

1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA

Output Formats

RTP, RTSP, MPEG-2 TS, RTMP, TS-RTP, MP4, and TS-file

Encoder Board Size

75 x 50 x 33 mm (2.95 x 1.97 x 1.30 in)

Encoder Board Weight

32 g (aluminum heat pipe is additional 10g)

Power Consumption

4.5W typical while encoding two cameras in H.265 video at 1080p60

Power Supply

12V DC


Downloads

FV2K-15A Product Brief
