Cavitar C300 Welding Camera System

Cavitar Welding Camera Vendor Logo SKU: EM11940MFG: C300

• Monochrome
• Plug-and-play, ultra-high clarity weld viewing camera
• Real-time welding adjustments based on the images
• Compact Size (38 x 45 x 99 mm)
• High Resolution (1440 x 1080) pixel sensor
• 70 fps @ full resolution, max 100 fps
• Integrated laser lighting system
• Cooling system for high-temperature applications

Description

Details

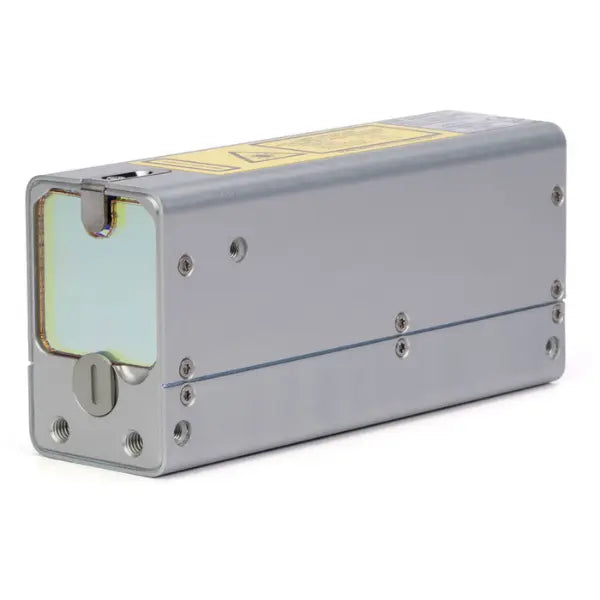

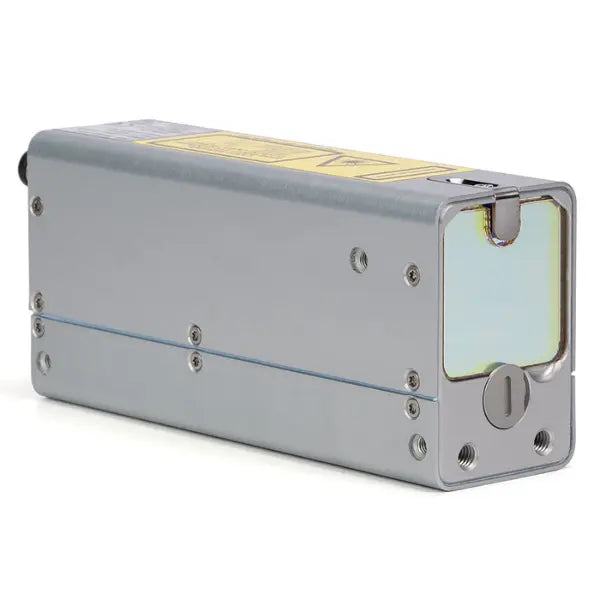

Cavitar C300 Welding Camera System

The Cavitar C300 Welding Camera System is a complete, compact, ready-to-use weld visualization solution with a camera, integrated laser illumination, and optics adjustable to almost any welding application. The C300 uses cutting-edge technology combined with laser illumination to handle the intense light from a welding arc. Easy to set up and versatile, this weld monitoring system is suitable for quality assurance, machine vision, and welding research applications.

The Cavitar Welding Camera delivers clear, high-resolution images of various popular welding techniques such as GMAW (MIG, MAG) and GTAW (TIG). It also handles all major beam welding processes, including CO2 laser, fiber laser, diode laser, Nd: YAG laser, and electron beam techniques.

Use cases include real-time adjustment of welding parameters for automated welding processes such as tube seam welding. At the same time, operators may perform their work at safe distances away from the arc, heat, and dangerous fumes.

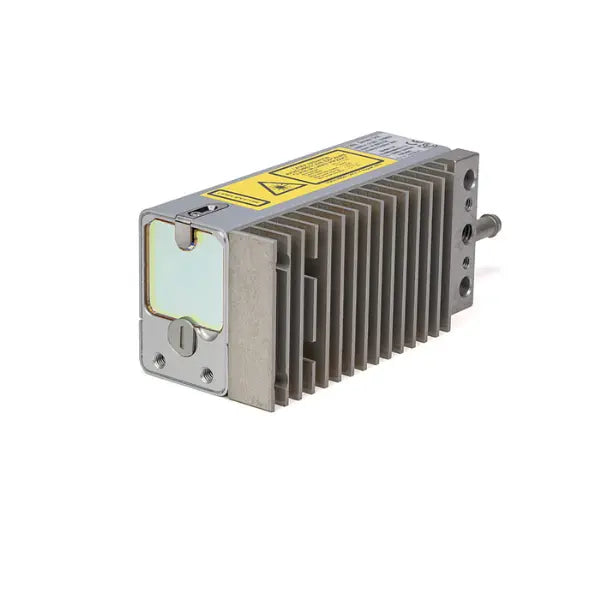

The camera's compact design allows it to be implemented into the most challenging and space-restrictive remote applications. Supplied cooling channels and camera housing heat sinks ensure the camera's durability in these harsh environments.

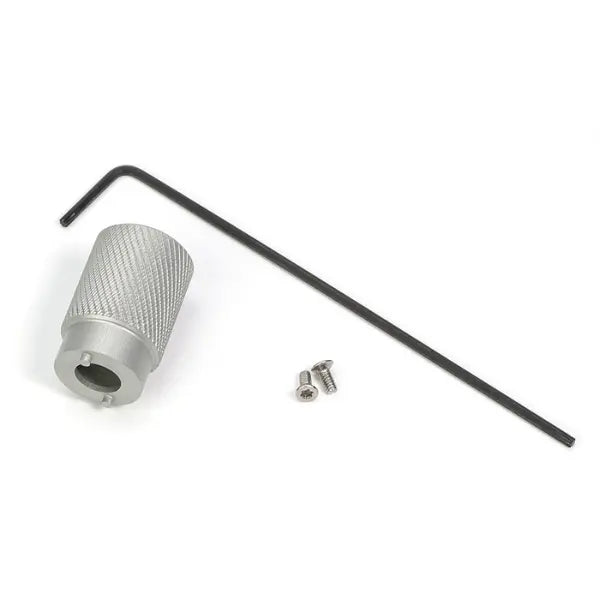

Adjustable optics allow the camera to be tuned in an application-specific implementation, ensuring it is the right welding camera tool for the job.

Articles

Different Arc Welding Processes, Behaviors, and Applications

Common Welding Methods and the Use of Laser Illumination in Weld Imaging


Specifications

Description

3rd generation compact welding camera for demanding environments with integrated illumination and cooling channels

Main applications

GMAW, TIG, Plasma, Robotic, Additive Manufacturing

Signal System

GigE


Monochrome

Camera Unit


Max resolution (pixel)

1440 x 1080

Max frame rate (fps)(1)

70(2)

Working distance (mm)

150...300

Field of view (mm2):


working distance 150 mm

28 x 21

working distance 200 mm

40 x 30

working distance 250 mm

51 x 38

working distance 300 mm

62 x 47

Size (WxHxL, mm)

38 x 45 x 99

Weight (g)

200

Laser Unit

Integrated

Laser wavelength (nm)

640

Laser class

3R

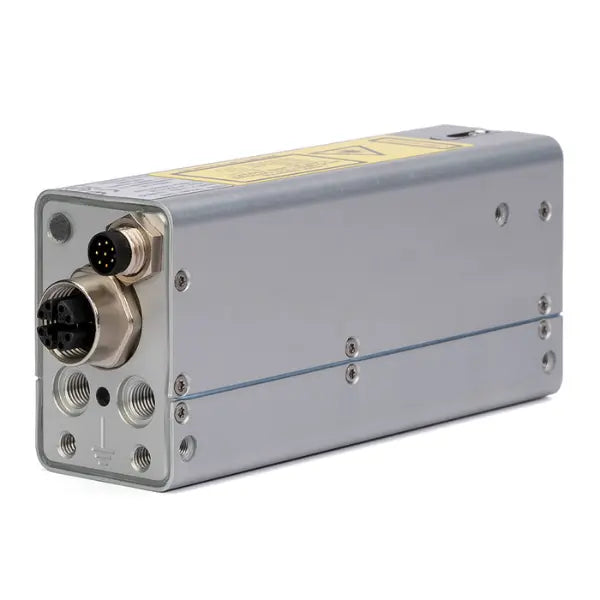

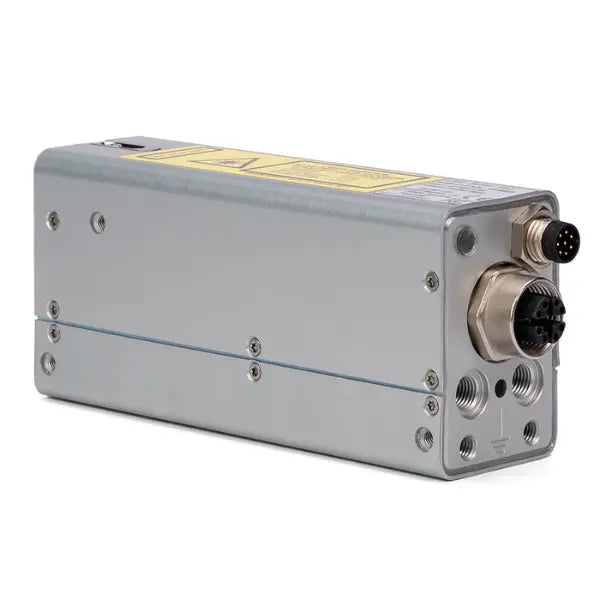

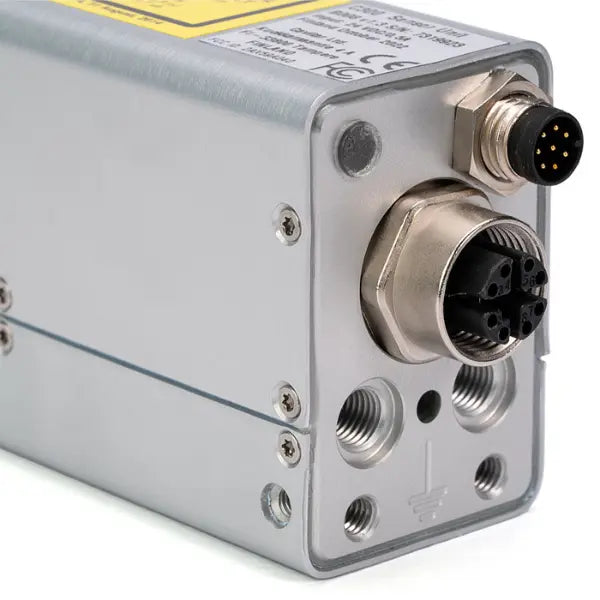

Camera interface

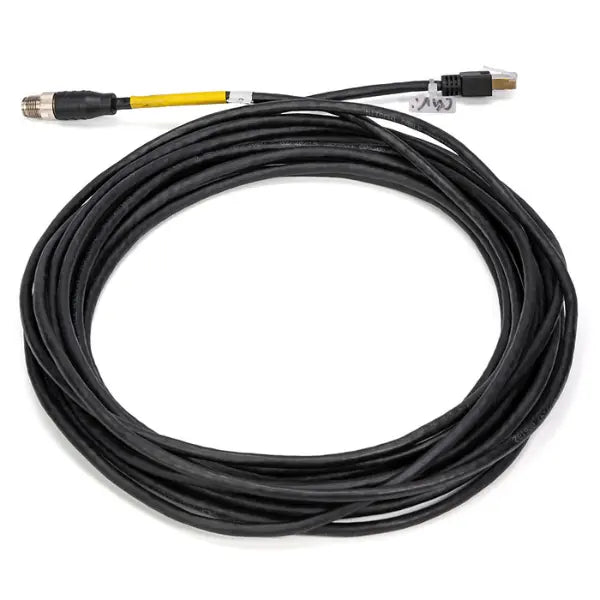

Gigabit Ethernet

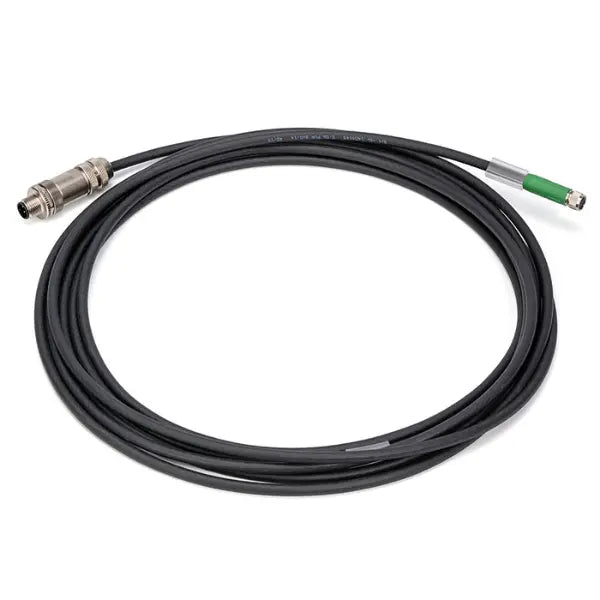

Gigabit Ethernet connector

M12, X-coded

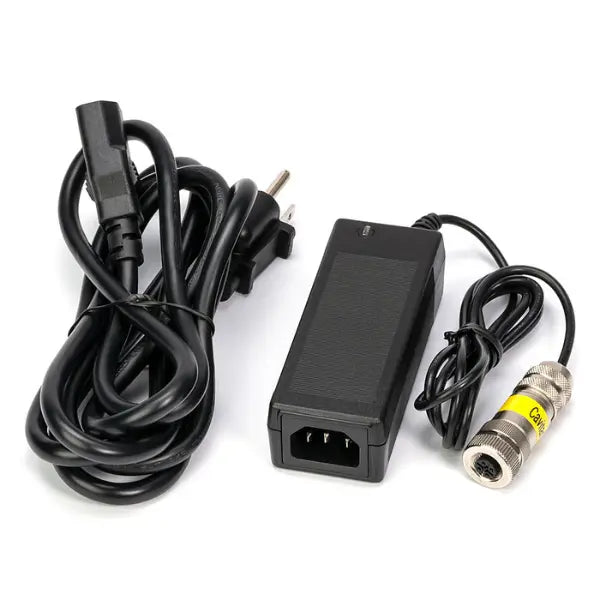

Power & IO connector

M8

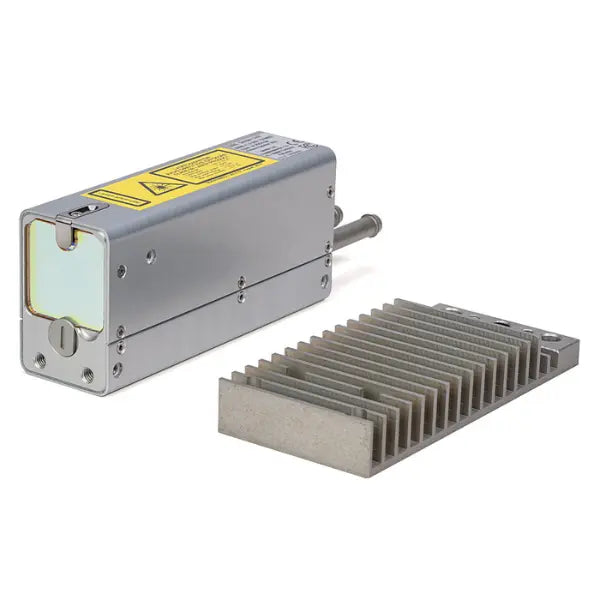

Cooling options

Passive: heatsink, heat conduction Active: air, liquid

(1) At full resolution, dependent on computer performance

(2) Up to 500 fps with reduced resolution (720 x 540 px) with a high-speed version having a USB3 interface.

All values are approximated. The design working distance is 200 mm.


Downloads

Product Brochure

Cavitar Welding Camera Manual

Cavitar External COM Control Guide

Cavitar Welding Camera Cooling Guide

Cavitar Welding Camera Working Distance Guide
