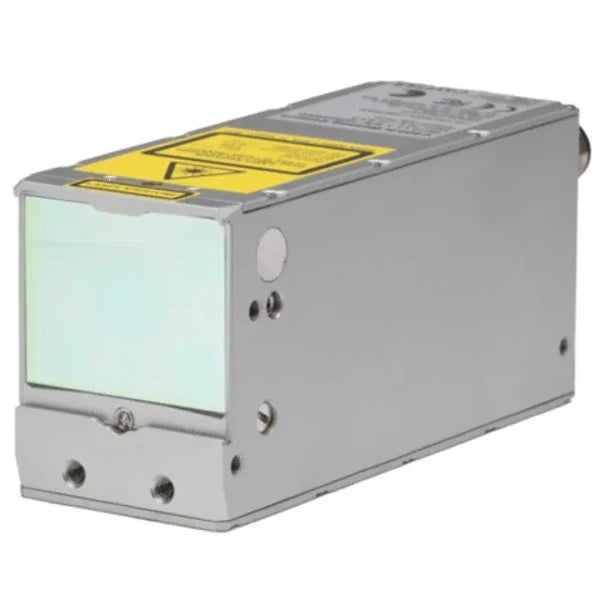

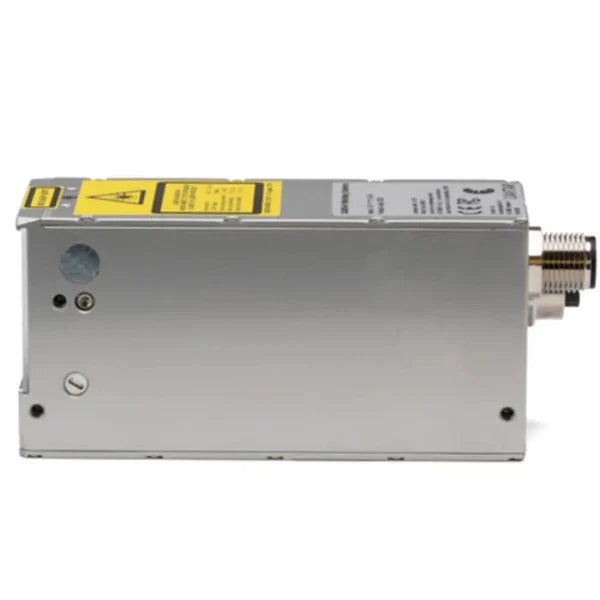

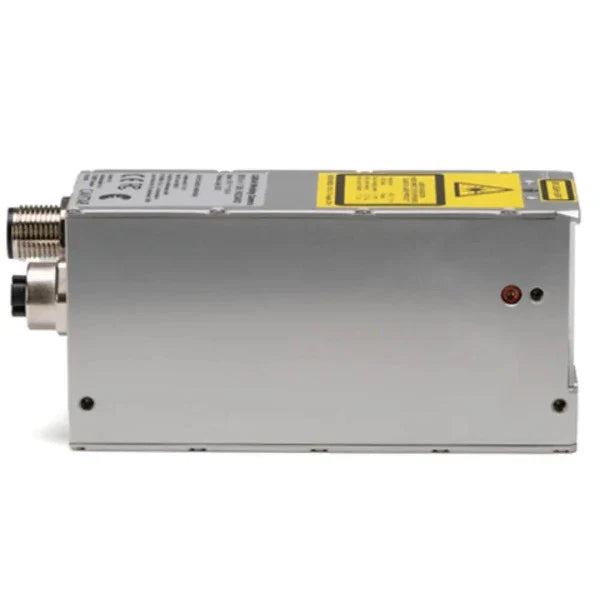

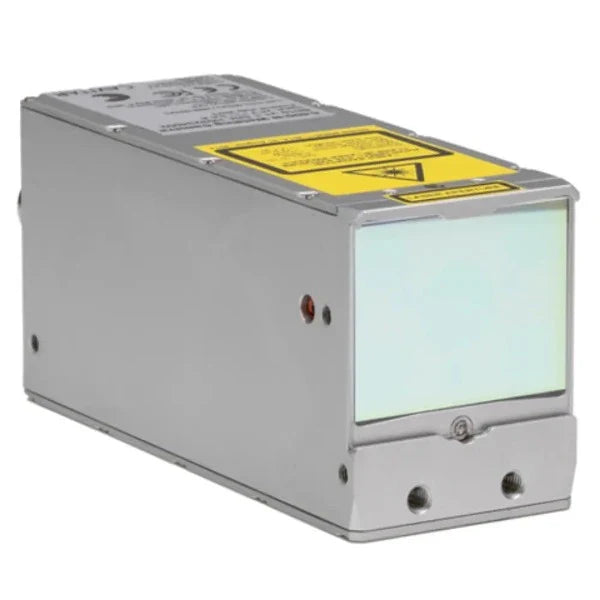

Cavitar C400-H Wide FOV Welding Camera System

Cavitar Welding Camera Vendor Logo SKU: EM10298MFG: C400-H Wide

• Monochrome
• Plug-and-play, ultra-high clarity weld viewing camera
• Wider field of view than C400-H
• Real-time welding adjustments based on the images
• Compact Size (38 x 45 x 99 mm)
• High Resolution (1440 x 1080) pixel sensor
• 70 fps at full resolution, max 100 fps
• Integrated laser lighting system
• Cooling system for high-temperature applications

Description

Details

The Cavitar C400-H Wide Field of View (FOV) Welding Camera System is a complete, compact, ready-to-use weld visualization solution, with adjustable optics and integrated laser illumination. The Wide FOV model offers at least twice the viewing width of the standard model, making it particularly beneficial for both manual and automated welds, especially when precise monitoring near the welding area is necessary. Additionally, a wider field of view enables more information to be captured in a single frame, improving flexibility in positioning the camera, providing greater coverage without compromising image quality.

 The C400-H Wide FOV uses cutting-edge technology combined with laser illumination to handle the intense light from a welding arc . Designed to accommodate various welding applications, its adjustable optics allow the camera to be tuned in an application-specific implementation. Easy to set up and versatile, this weld monitoring system is suitable for quality assurance, machine vision, and welding research applications.

The Cavitar Welding Camera delivers clear, high-resolution images of various popular welding techniques such as GMAW (MIG, MAG) and GTAW (TIG). It also handles all major beam welding processes, including CO2 laser, fiber laser, diode laser, Nd: YAG laser, and electron beam techniques.

Use cases include real-time adjustment of welding parameters for automated welding processes such as tube seam welding. At the same time, operators may perform their work at safe distances away from the arc, heat, and dangerous fumes.

The camera's compact design allows it to be implemented into the most challenging and space-restrictive remote applications. Supplied cooling channels and camera housing heat sinks ensure the camera's durability in these harsh environments.

Adjustable optics allow the camera to be tuned in an application-specific implementation, ensuring it is the right welding camera tool for the job.

Comparison Chart

Working Distance

Cavitar C400-H

Cavitar C400 Wide

150 mm

28 x 21 (mm)

80 x 21 (mm)

200 mm

40 x 30 (mm)

107 x 30 (mm)


Related Articles

Different Arc Welding Processes, Behaviors, and Applications

Common Welding Methods and the Use of Laser Illumination in Weld Imaging

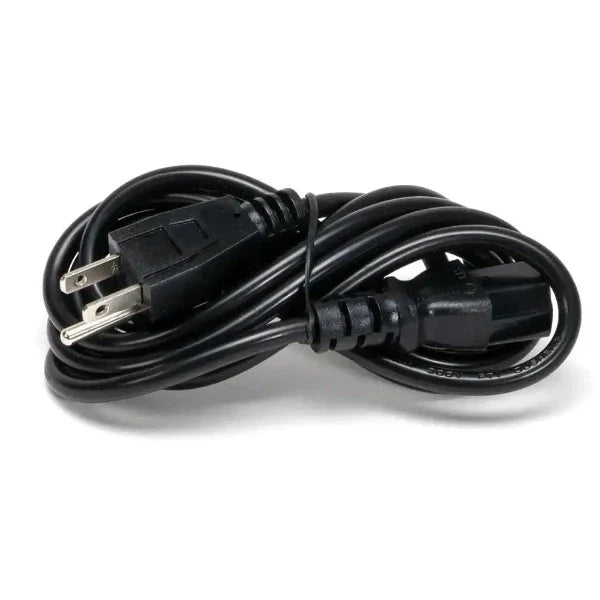

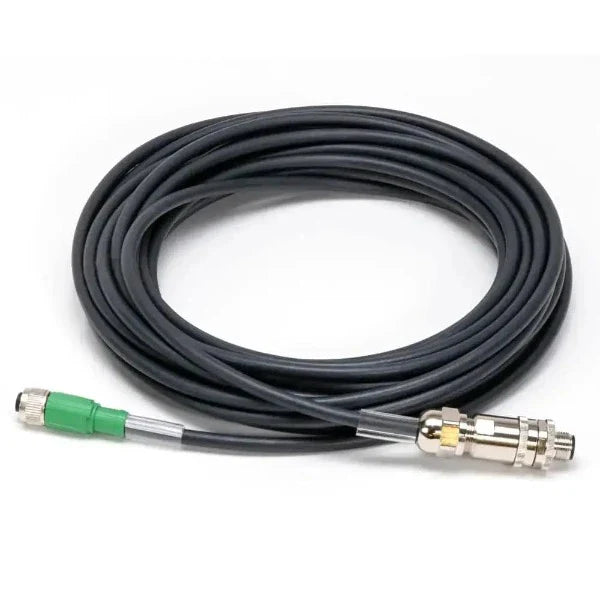

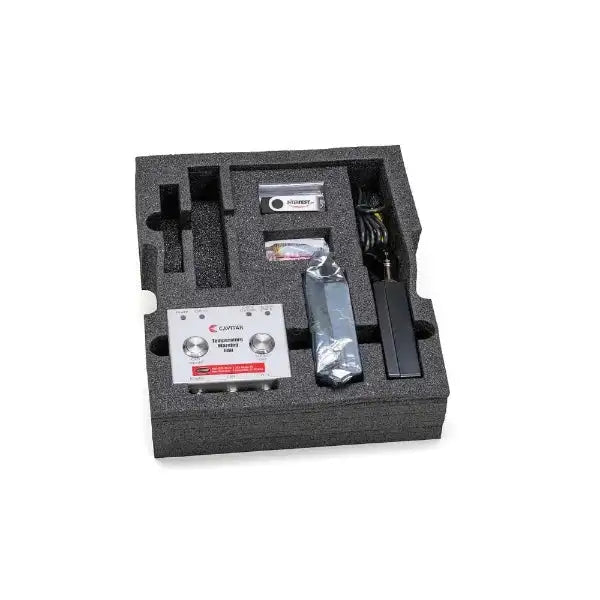

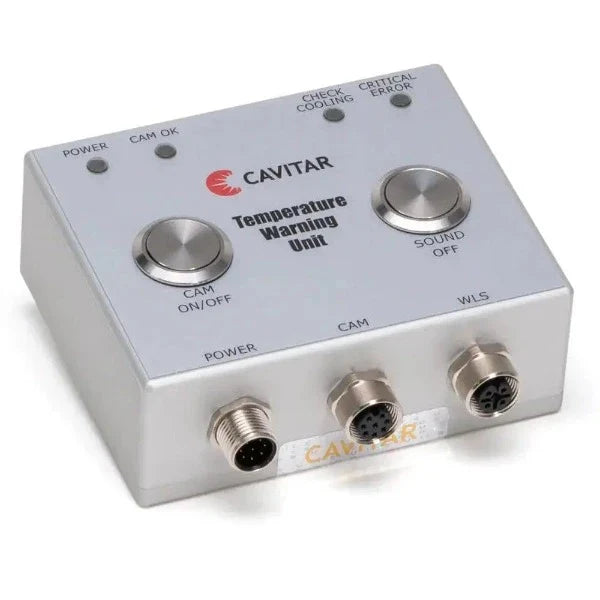

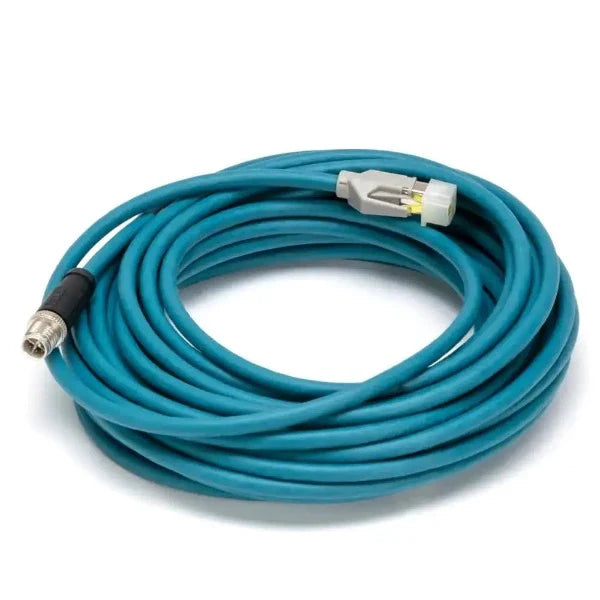

Items Included

Specifications

Description

4th generation compact welding camera for demanding environments with integrated illumination and cooling channels

Main applications

GMAW (MIG), GTAW (TIG), Plasma, Robotic, Additive Manufacturing

Signal System

GigE


Monochrome

Camera Unit:


Max resolution

1440 x 1080 px

Max frame rate (fps)(1)

70(2)

Working distance range

150 to 200 mm

Focal length lens

10mm

Field of view (mm 2):


Working distance 150mm

 80 mm x 21 mm

Working distance 200 mm

 107 mm  x 30 mm

Depth of Field (any focus distance)

∼38 mm or more

Size (W x H x L, mm)

38 x 45 x 99

Weight (g)

350

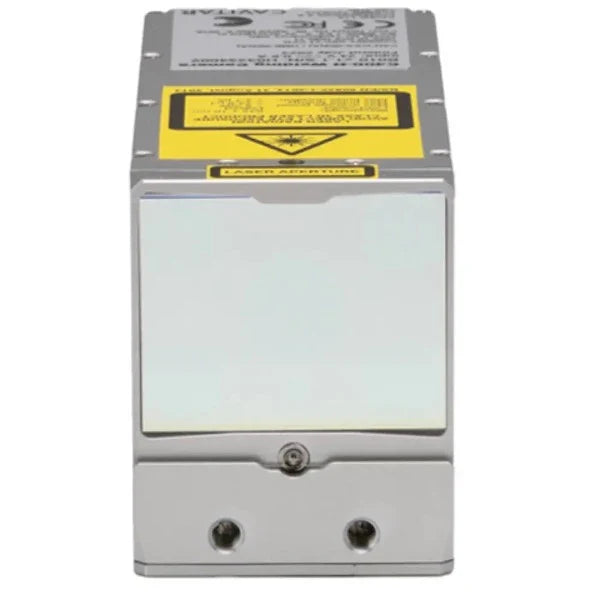

Laser Unit

Integrated

Laser wavelength (nm)

640

Laser class

3R

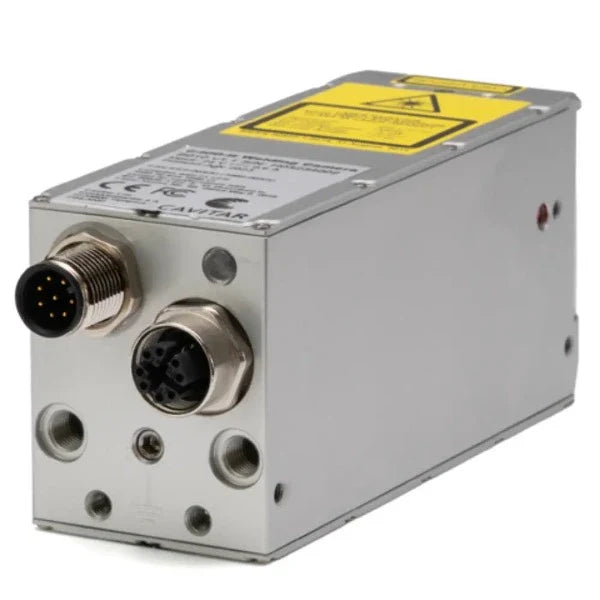

Camera interface

Gigabit Ethernet

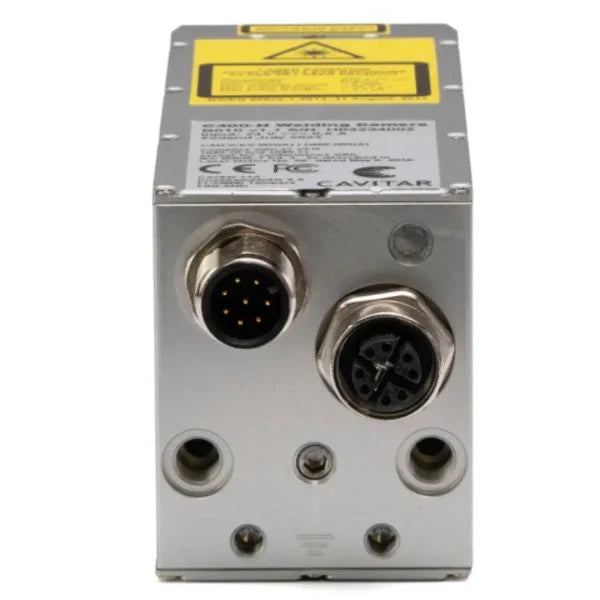

Gigabit Ethernet connector

M12, X-coded

Power & IO connector

M12

Cooling options

Passive: heatsink, heat conduction Active: air, liquid



(1) At full resolution, dependent on computer performance

(2) Up to 500 fps with reduced resolution (720 x 540 px) with a high-speed version having a USB3 interface.

All values are approximated.
