iGrab™ 9.8 mm Diameter 4-way Articulating Guide Tube Series

Igrab Vendor Logo SKU: EM16519

• Four-way articulation for easy retrieval tool manipulation
• 9.8 mm outer diameter distal tip
• Works with iGrab™ Micro Manual FOD Retrieval Tool Kits
• 4.2 mm working channel (accommodates video borescopes & retrieval tools up to 4 mm outer diameter)


Length: 6 ft (1.83 m)
iGrab

Description

Details

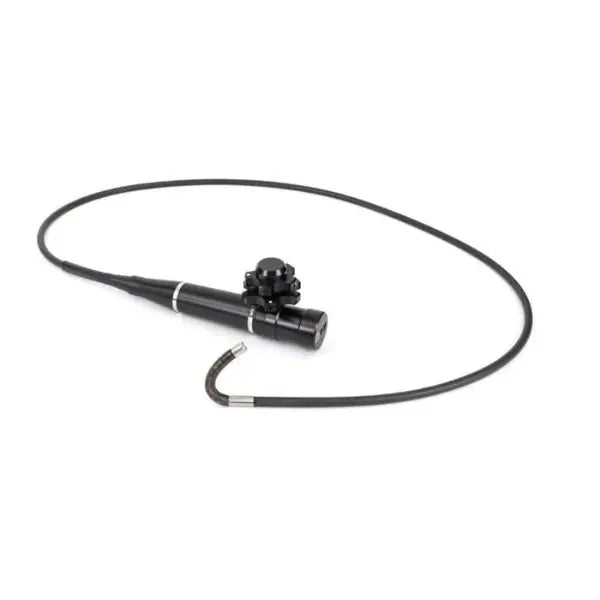

iGrab™ 9.8 mm Diameter 4-way Articulating Guide Tube

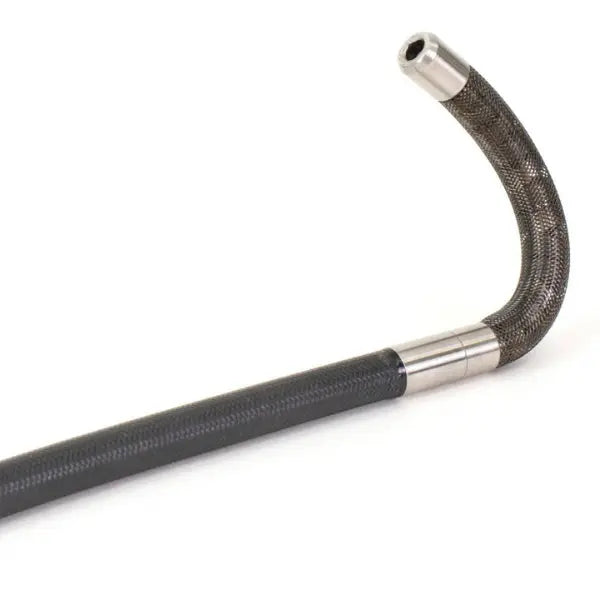

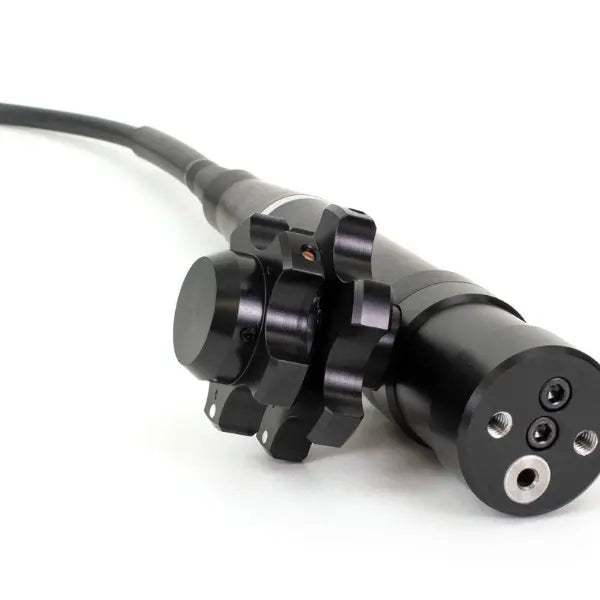

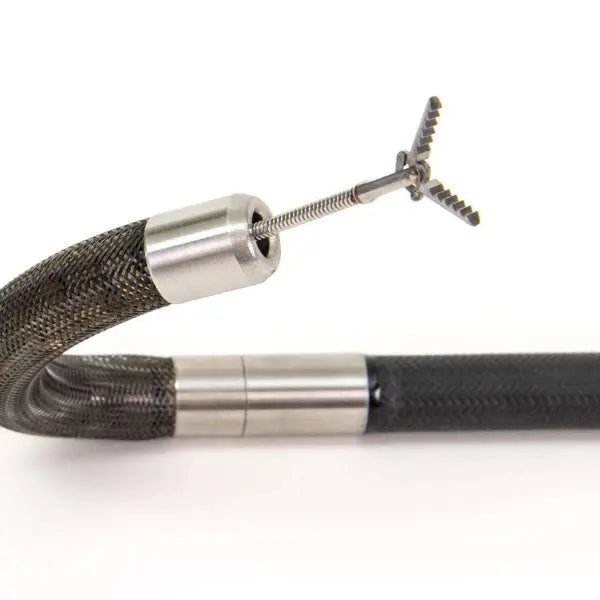

iGrab™ 9.8 mm OD Articulating Guide Tubes allow distal tip directional manipulation of retrieval tools or video scopes measuring no more than 4 mm outer diameter.   Maneuver the end of retrieval tools, such as our iGrab™ Micro Manual FOD Retrieval Tool Kits or videoscopes, like the Yateks B+ Portable Series Videoscopes, for thorough visual inspection and retrieval. The articulating distal tip is controlled by a handset equipped with two knobs allowing for movement up to 90 degrees in 4 directions.

Specifications

Outer Diameter 9.8 mm
Length 6, 8, or 18 ft
Articulation 4-Way
Working Channel 4.2 mm
Inner Layer Stainless Steel
Articulation Ranges (varies with length)

6 ft = 140⁰ to 160⁰

8 ft = 140⁰ to 160

18 ft = 120

Second Layer Urethane
Outer Layer Tungsten Braid
