IONODES ATOMAS-IOT-MICRO Micro MIPI IoT Video Encoder

Ionodes Vendor Logo SKU: EM18241 MFG: ATOMAS-IOT-MICRO

• Dual Camera with 2 x 4-lane MIPI inputs
• Internet-of-things (IoT) capable
• HVEC / H.264 / MJPEG video encoding up to 4K 30fps

Accessories

Ionodes

Description

Details

The ATOMAS-IOT-MICRO Micro MIPI IoT Video Encoder is a dual-camera MIPI IP video encoder module with internet-of-things (IoT) capabilities. Featuring a dual-camera MIPI IP video encoder module, the ATOMAS-IOT-MICRO is a powerful IoT device that delivers seamless connectivity. With IoT capabilities, users can access to video and data assets.

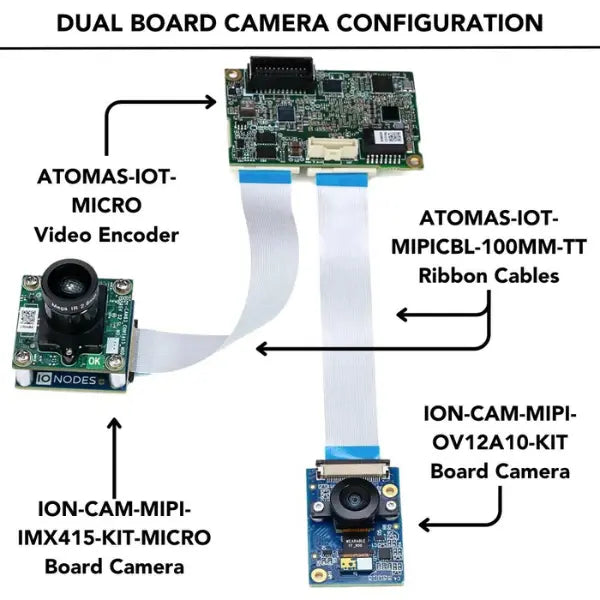

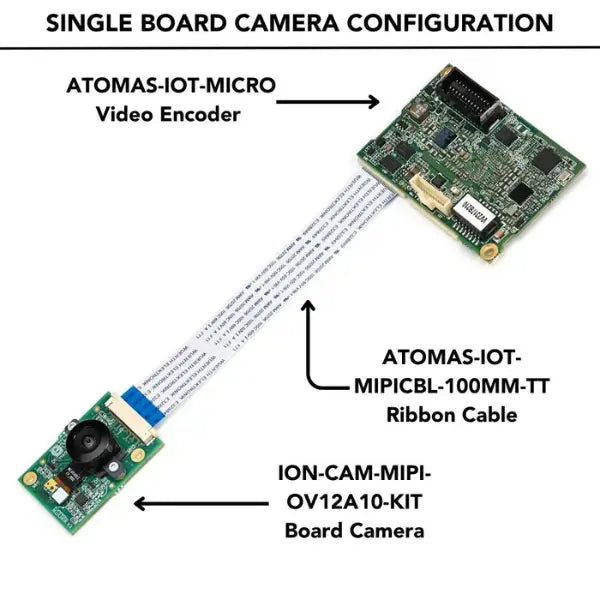

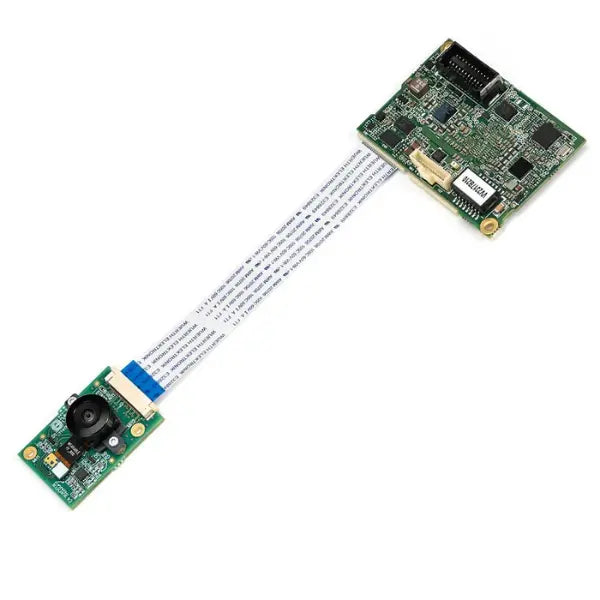

This product includes the ATOMAS-IOT-MICRO Micro MIPI IoT Video Encoder ONLY. The following are pictured but sold separately.

EM10032 ATOMAS-IOT-MIPICBL-100MM-TT Ribbon Cable

EM18896 ION-CAM-MIPI-OV12A10-KIT 4K MIPI Camera with Lens

EM10091 ION-CAM-MIPI-IMX415-MICRO 4K MIPI Camera with Lens

Specifications

Standard/Integrated Interfaces
Network

1 x 10/100 Base-T Ethernet
Wi-Fi: 2.4G/5GHz, 802.11a/b/g/n/ac (optional)
Bluetooth: BT 5.0 (optional)
GNSS: GPS, BeiDou, GLONASS, QZSS (optional)

I/O & Audio 1 x UART (TTL) + 1 x I2C + 1 x SPI
1 x Board Reset Signal + 1 RGB Status Signal
2 x Antenna Connectors (Wi-Fi / BT, GNSS)
1 x VRTC (3.0V)
1 x 3.3V Out, 1 x 1.8V Out
1 x I2S for audio
1 x USB 3.1
Video Input 1 4-lane MIPI CSI-2 video interface
* For use with compatible video adapter board
Video Input 2 4-lane MIPI CSI-2 video interface
* For use with compatible video adapter boards
* Supports synchronization signal with Input 1
Video Performance
Video Resolution Supports sensor inputs at up to 12MP
Video Encoding HEVC / H.264 / MJPEG (up to 4K30FPS total
Video Latency Can reach less than 120ms latency
Image Processing 2D/3D noise reduction
Edge enhancement
Frame difference motion detection
Privacy masks
System
Processor Qualcomm Octa-Core IoT SoC
Operating System Embedded Linux

HW Watchdog

Auto-boot, OS supervision, temperature
monitoring, software monitoring
Other Realtime Clock (RTC) & Temperature Sensor
On-board 9-axis IMU
Storage
Internal 8GB eMMC
External External storage via microSD
* Requires optional microSD adapter board
Protocols
Networking IPv4/v6, UDP, TCP, IGMP, ARP, DHCP,
DNS, NTP
Streaming RTSP, RTP, HTTP, Web Socket
Management HTTP, HTTPS, Bonjour, ONVIF, ION API,
SNMP, SMTP
Security Basic / Digest Authentication, SSL
Software
Web GUI
System configuration and maintenance
Live video and PTZ control
Cross-browser support
Smartphone and tablet support
Programming Interface ION API, ONVIF Profiles G,S,T
System Monitoring Video signal, storage medium, temperature,
memory, CPU, network
Media Recording Recorded ASF audio/video to SD/MMC
Software Update Fault-tolerant, remote accessible
Alarm Triggers I/O input, motion detection, system monitor
PTZ Control Can interface to PTZ controller (UART)
Programmable preset tours
User-defined custom commands
Other Features Email notifications (on event or schedule)
Text overlay
OEM rebranding / customization
Mechanical/Environmental
Dimensions 38 mm x 55 mm
Power Input 5.5VDC to 14VDC
Operating Temp. Dependent on customer mechanical design
* All components are -25C to 85C (Tcase)
Storage Temp. Components are rated for -30C to 70C when
in storage
Warranty 2 Years Standard

Downloads

ATOMAS-IOT-MICRO Data Sheet
