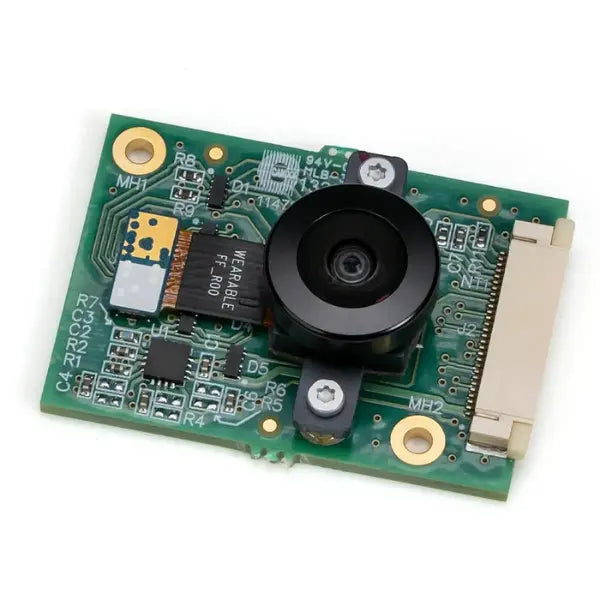

The IONODES ION-CAM-MIPI-OV12A10-KIT 4K MIPI Camera with Lens is a board-level camera with a lens. This product contains the OV12A10 sensor, Panamorph lens mounted on the adaptor board with mount, screws, and heat pad assembly.
Connectivity to the ATOMAS-IOT-DUAL requires the ATOMAS-IOT-DUAL-MIPI-ADAPT module.

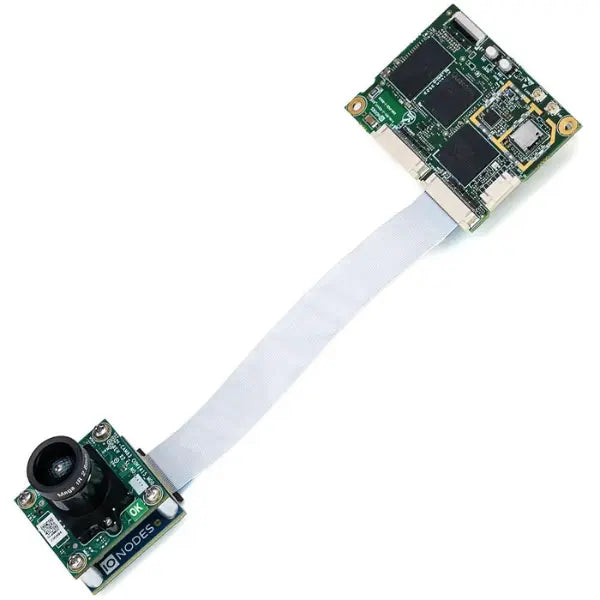

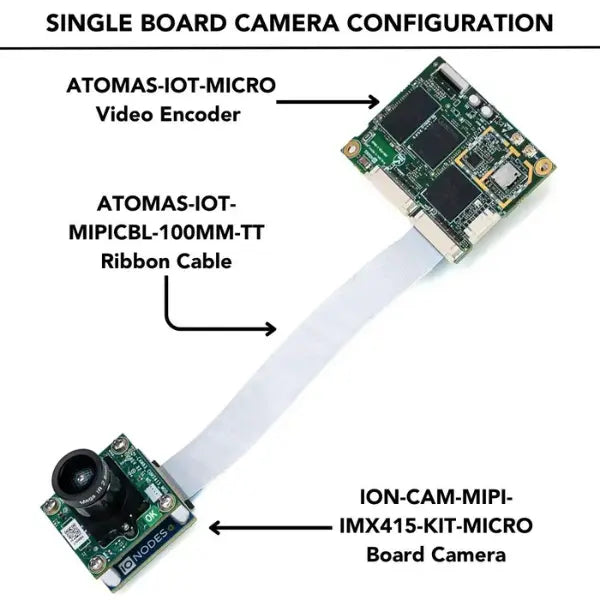

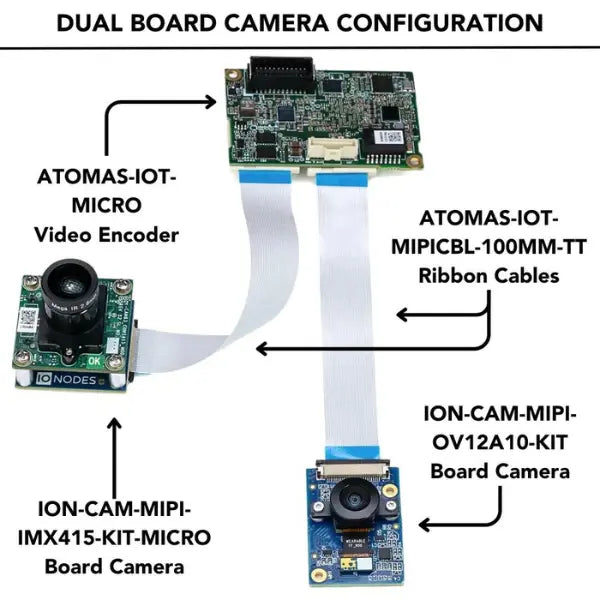

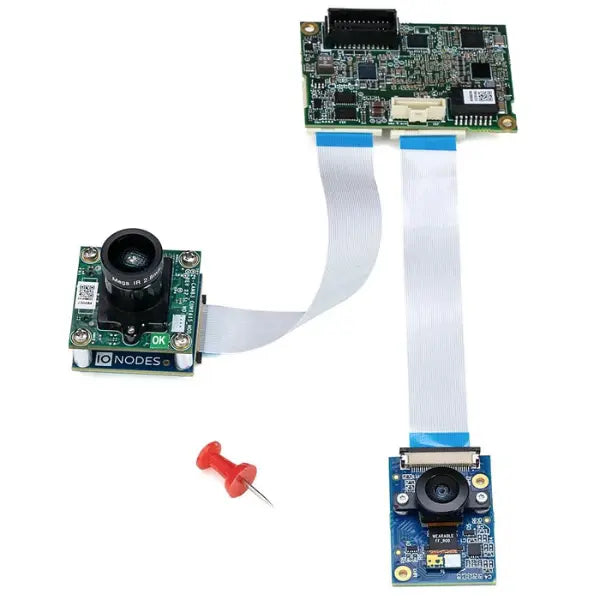

This product includes the ION-CAM-MIPI-OV12A10-KIT 4K MIPI Camera with Lens ONLY. The following are pictured but sold separately.
EM10032 ATOMAS-IOT-MIPICBL-100MM-TT Ribbon Cable
EM18241 ATOMAS-IOT-MICRO Micro MIPI IoT Video Encoder
EM10091 ION-CAM-MIPI-IMX415-MICRO 4K MIPI Camera with Lens
Specifications
| Sensor Size | 1/2.8" optical size |
| Pixel Size | 1.242 µm x 1.242 µm |
| Max Resolution | 12MP at 30 fps |
| Output Formats | 10-bit RGB RAW |
| Supported Image Sizes |
12MP (4096 x 3072) 4K2K (3840 x 2160) 1080p (1920 x 1080) and more |
| Image Quality Controls | defect pixel correction, automatic black level calibration, lens shading correction |
