IONODES ION-CAM-MIPI-IMX415-KIT-MICRO 4K MIPI Camera with Lens

Ionodes Vendor Logo SKU: EM10090MFG: ION-CAM-MIPI-IMX415-KIT-MICRO

• 8MP SONY STARVIS Raw Bayer Camera
• 4-lane MIPI CSI-2 interface
• Up to 4K 90fps video
• 30 x 30 mm form factor

Accessories

IONODES ATOMAS-IOT-MICRO Micro MIPI IoT Video Encoder
IONODES ATOMAS-IOT-MICRO Micro MIPI IoT Video Encoder
IONODES ION-CAM-MIPI-OV12A10-KIT 4K MIPI Camera with Lens
IONODES ION-CAM-MIPI-OV12A10-KIT 4K MIPI Camera with Lens
IONODES ATOMAS-IOT-MIPICBL-100MM-TT Ribbon Cable
IONODES ATOMAS-IOT-MIPICBL-100MM-TT Ribbon Cable

Description

Details

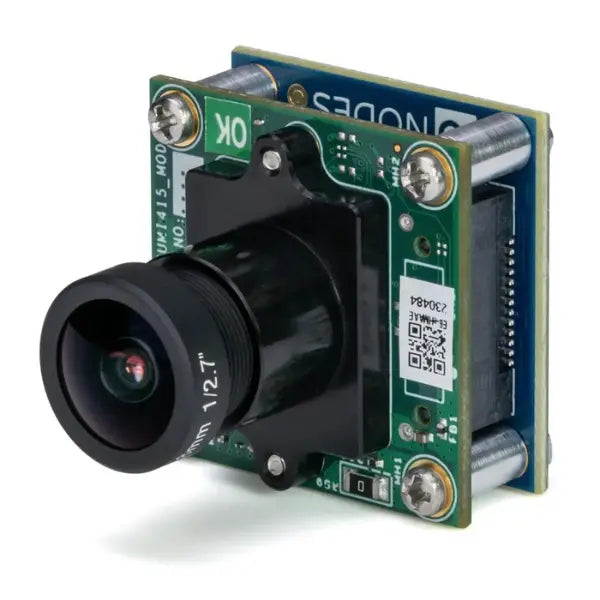

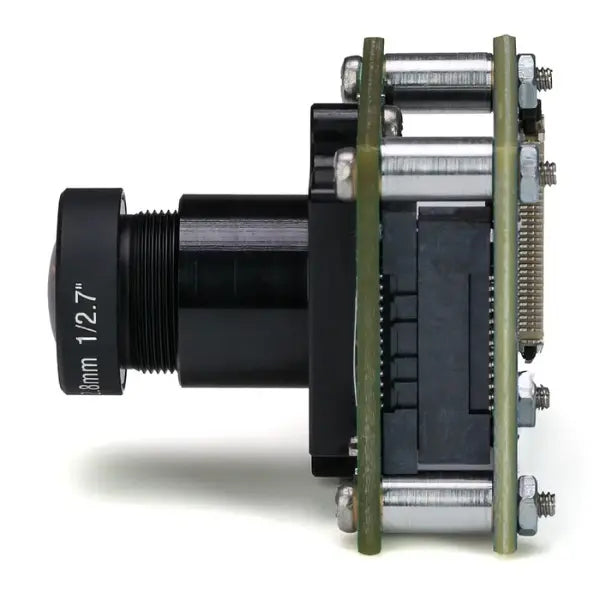

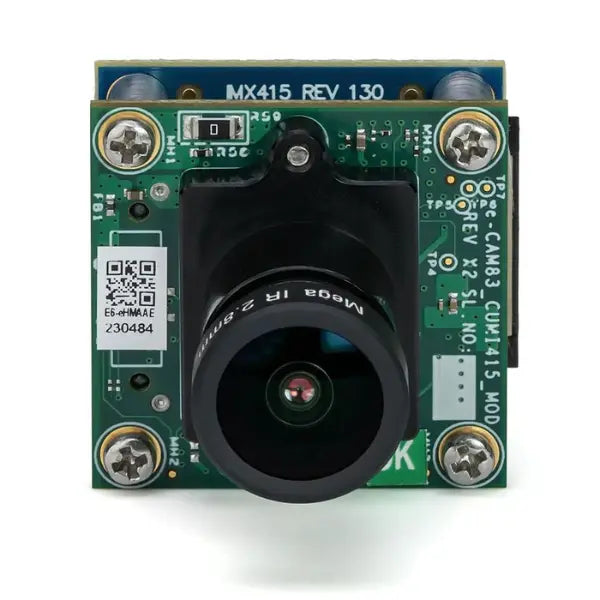

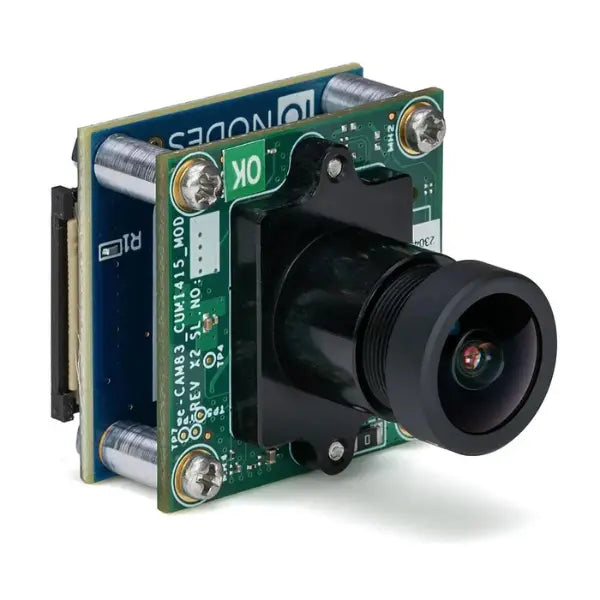

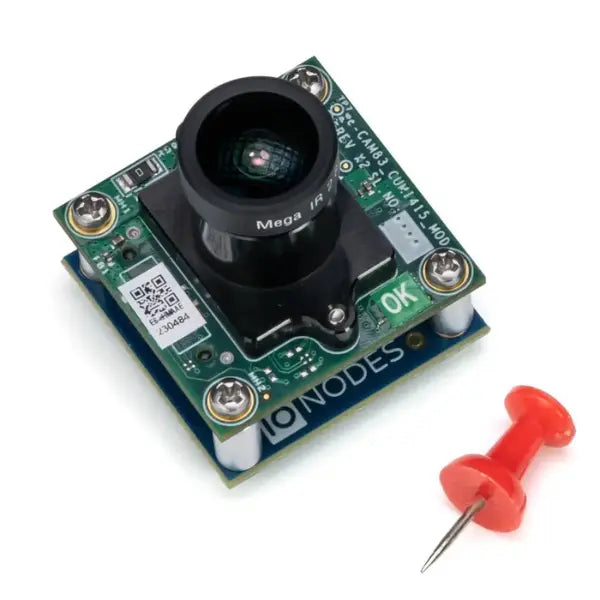

The ION-CAM-MIPI-IMX415-KIT-MICRO 4K MIPI Camera with Lens is a 4K MIPI board-level camera with a lens. This product contains the 1/2.8" Optical format SONY STARVIS™ IMX415 CMOS Image sensor, 131-degree lens (M12 S-Mount) mounted on a sensor interface board with mount, screws, and heat pad assembly.

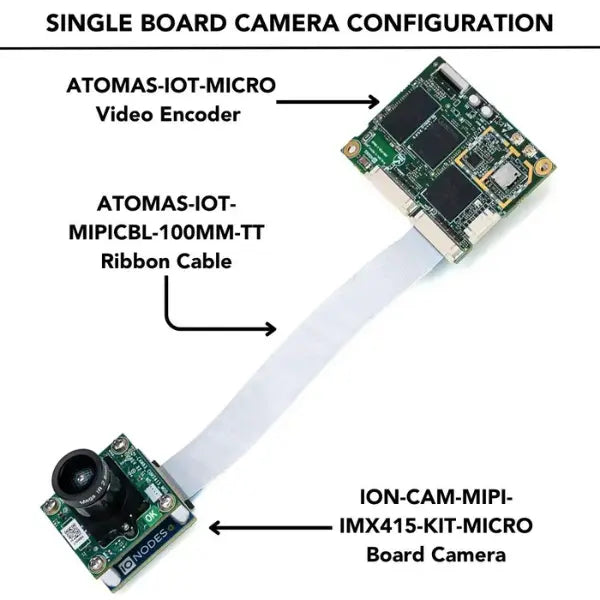

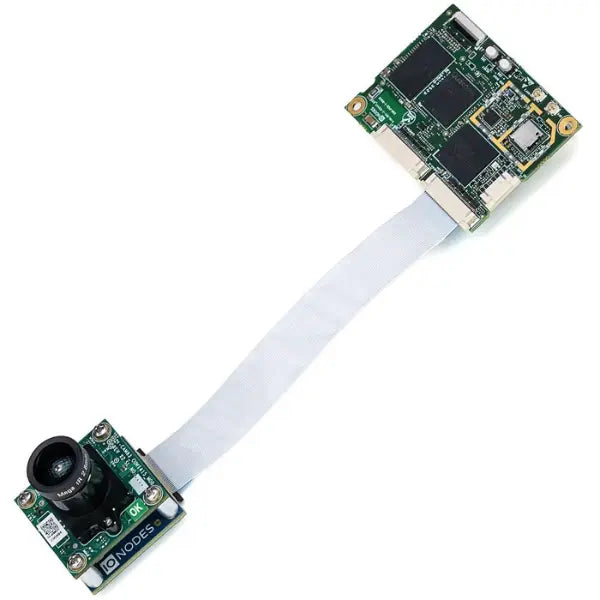

The ION-CAM-MIPI-IMX415-KIT-MICRO supports direct connectivity to ATOMAS-IOT-MICRO's MIPI inputs.

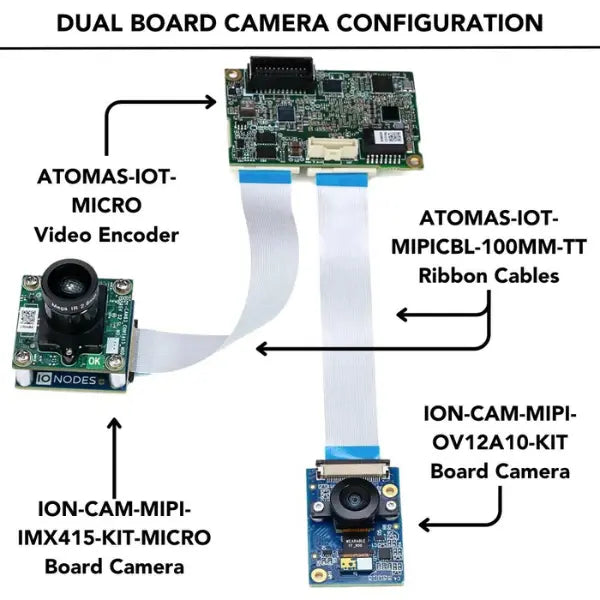

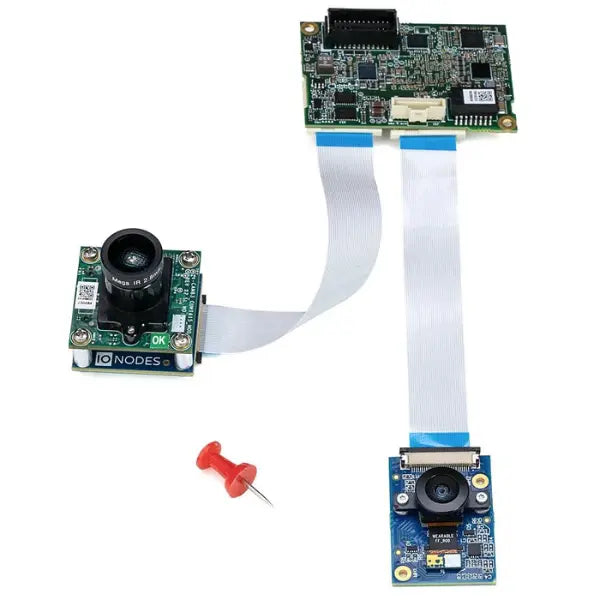

This product includes the ION-CAM-MIPI-IMX415-KIT-MICRO 4K MIPI Camera with Lens ONLY. The following are pictured but sold separately.

EM10032 ATOMAS-IOT-MIPICBL-100MM-TT Ribbon Cable

EM18241 ATOMAS-IOT-MICRO Micro MIPI IoT Video Encoder

EM18896 ION-CAM-MIPI-OV12A10-KIT 4K MIPI Camera with Lens

Specifications

Sensor Features
Sensor 1/2.8" Optical format SONY STARVIS™ IMX415 CMOS Image sensor
Focus Type Fixed focus
Resolution 8MP
Pixel size 1.45 µm x1.45 µm
Sensor Active Area 3864H x 2192V
G Sensitivity 2376mV for HCG and 921mV for LCG
Output format RGB RAW 10/12-bit
Shutter Type Electronic Rolling Shutter
Holder M12 (S-Mount)
DFOV Full HD - 131°(with the lens provided by e-con)
