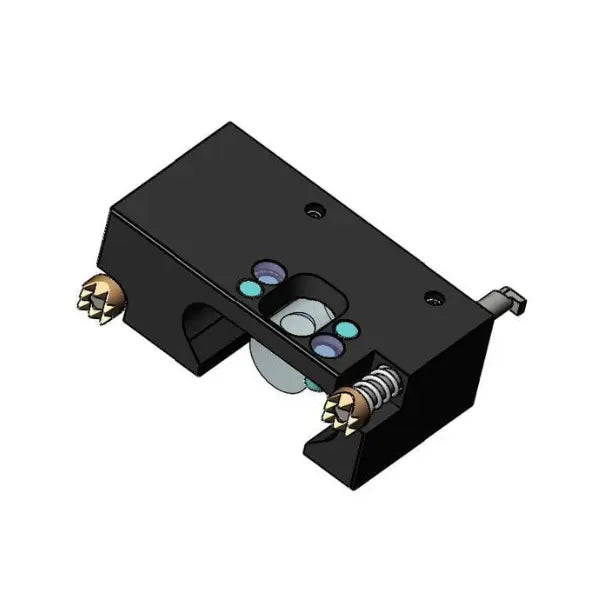

The WebViewer® 90º Forward Optical Adapter features a 2.2 mm lens delivering 2 MP resolution with an 80 × 41 mm field of view at a 50 mm working distance; nominal 65º horizontal field of view. It provides simultaneous UV and white-light output for fluorescent inspection and standard visual confirmation in a single configuration.
This adapter enables a 90º forward direction of view (FWD), allowing operators to inspect areas positioned 90º forward from the distal tip of the SeeUV® WebViewer®. It is designed for applications requiring perpendicular forward-angle inspection without repositioning the Webviewer® or part.
Specifications
| Resolution | 2 Megapixel |
| Focal Distance | 2.2 mm |
| Field of View (FOV) | 80 × 41 mm at 50 mm |
| Horizontal FOV | Nominal 65º |
| Direction of View (DOV) |
90º Forward (looks 90º forward from the distal tip) |
UV Output Data
The data below represents typical UV intensity measurements (μW/cm2 ) from new optical adapters. Values are provided as general performance benchmarks. Actual results may vary depending on the light guide and UV light source used.
Test Light Source: EM14465 – SeeUV® UV-LED Light Source Kit
Measurement Method: UV intensity measured from the center of the field of view (μW/cm²)
| Distance to Target (inches) |
0⁰ DOV UV Intensity (μW/cm2) |
60⁰ AFT DOV UV Intensity (μW/cm2) | 90⁰ AFT DOV UV Intensity (μW/cm2) | 60⁰ FWD DOV UV Intensity (μW/cm2) | 90⁰ FWD DOV UV Intensity (μW/cm2) |
| 1.00 | 21,800 | 35,000 | 33,000 | 36,000 | 35,000 |
| 2.00 | 6,000 | 11,000 | 12,000 | 13,500 | 11,500 |
| 3.00 | 3,700 | 5,600 | 6,300 | 6,400 | 5,000 |
| 4.00 | 2,000 | 3,200 | 3,500 | 3,700 | 2,900 |
| 5.00 | 1,400 | 2,000 | N/A | 2,500 | |
| 5.25 | 2,000 |
