The Sierra Olympia Tenum 1280 30 Hz Long Wave IR Thermal Camera is Sierra-Olympia's smallest-pitch long-wave infrared (LWIR) camera core with impressive 1280 HD resolution. This OEM camera core is ready for integration into a finished product, whether alone or coupled with a visible spectrum camera, such as the Sony FCB-EV9520L Block Camera. The Tenum 1280 has three lens options (60º, 30°, and 21° horizontal field of view), camera integration kits, and plug-and-play enclosures.
The Tenum 1280 is an uncooled, VGA-resolution, LWIR thermal imager with a small form factor that is a significant step forward in reliability and image clarity. Its microbolometer has a 10 μm pixel pitch and exceptional sensitivity, capturing heat energy at a higher rate for a higher-quality image. The camera sensor is a 1280 x 1024-pixel sensor capable of performing at less than 30 mK (millikelvin) noise-equivalent temperature difference (with spatiotemporal filtering).
InterTest, Inc. offers USB 3.0 and H.264 interfaces to bring this thermal camera's video, control, and power to life.
Board ** Camera is subject to export controls and requires documentation and export license **
Tenum 1280 Camera, 60 Degree HFOV, 12.8mm Lens, M34, 30Hz, No Feature Board Camera is subject to export controls and requires documentation and export license

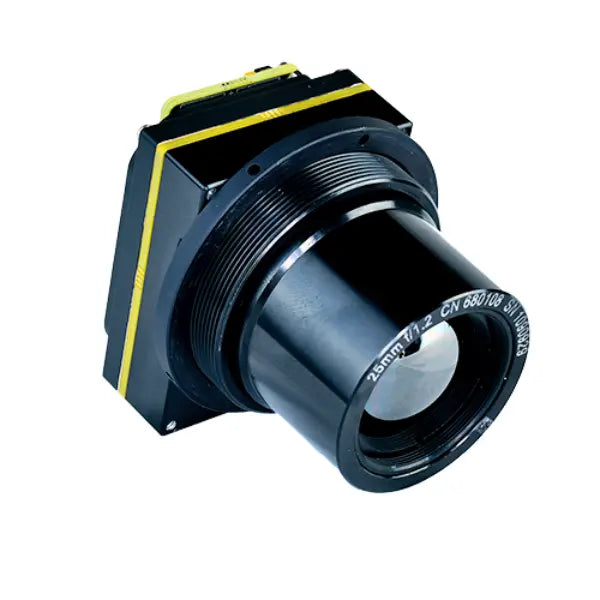

Tenum 1280 Camera, 30 Degree HFOV, 25mm Lens, M34, 30Hz, No Feature Board ** Camera is subject to export controls and requires documentation and export license **
Specifications
| Horizontal Field of Views | 60º, 30°, & 21° |
|
Detector Type |
Uncooled VOx Microbolometer |
|
Array format |
1280 x 960, 1280 x 1024 (SXGA default), 1312 x 1056 mx |
|
Pixel Pitch |
10 μm |
|
Spectral response |
LWIR 8-14um |
|
FPS |
30 Hz (9 Hz option available) |
|
Sensitivity (NEdT) |
<30 mK |
|
Sensitivity w/ 3-D noise filter |
<30 mK |
|
Digital Video Output |
14-bit/8-bit LVCMOS or Camera Link® |
|
NUC |
1-point with shutter or through lens |
|
Image Enhancement |
Image Contrast Enhancement (ICE™) with gain and level bias controls |
|
Color Palette Options |
24-bit RGB |
|
Camera control/Command Interfaces/System control |
UART/RS-232, USB 2.0 |
| Other Electrical Interfaces | External Sync |
|
Input Voltage |
3 - 5.5 V Base Configuration 4.5 - 18 V with Feature Board |
| Power Dissipation (nominal) | 2.3 W Base Configuration, 2.4 with Feature Board |
| Operating Temp Range | -40°C to + 70°C |
| Sealed Rating | IP 67 compatible |
