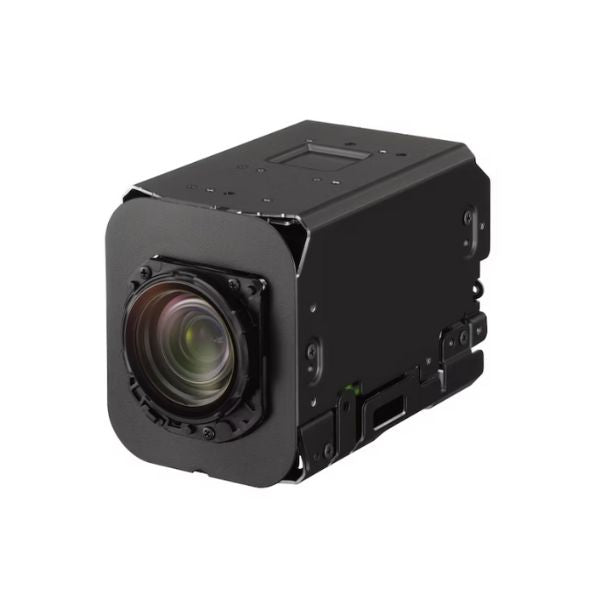

Sony FCB-ER8530 20x 4K CMOS Block Camera

Sony Vendor Logo SKU: EM13768MFG: FCB-ER8530

• 20x Optical Zoom
• Super Resolution Zoom
• Video Outputs for 4K to HD
• Privacy Zone Masking



Sony FCB-ER8530 20x 4K CMOS Block Camera


This product is discontinued. See other available 4K Block cameras:

Sony FCB-ER8530/J 20x 4K CMOS Block Camera

Sony FCB-EW9500H 30x HDMI Block Camera

KT&C ATC-UZ5707U-H 7x Zoom 4K Global Shutter HDMI Block Camera

KT&C ATC-UZ5707U-M 7x Zoom 5K Global Shutter MIPI Block Camera


The Sony FCB-ER8530 is a 4K Block camera with Super Resolution Zoom (SRZ) technology which delivers the equivalent of 20x optical zoom at 4 MP (4K) resolution. The FCB-ER8530/J also features compact form factors (50mm x 60mm x 93.3mm) for space-constrained environments.

Super Resolution Zoom

FCB-ER8530 has 30x zoom, in sync with an optical 20 x zoom lens. The "Pixel Super Resolution Technology" suppresses image degradation when an image is enlarged, providing excellent images at their original resolution.

4K @ 30fps images

The 1/2.5-type Exmor R CMOS image sensor successfully brings superb 4K (QFHD) picture quality. The FCB-ER8530 produces high-quality images using Sony's latest sensor technology in low-light conditions.

20x optical zoom

The high-quality lens features an F2.0 to F3.8 aperture range and a 20x optical zoom range. Zoom operation is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups in security and surveillance applications.

Image stabilizer

The Sony FCB-ER8530/J features a built-in image stabilizer function that counters low-frequency vibrations. Applications include traffic monitoring and outdoor surveillance, where exposure to the elements can lead to shaking, such as on a bridge or tall structures. It ensures no compromise in image size and blur reduction.

Advanced 2D/3D Noise Reduction

Noise reduction technology filters the image's noise for precise results, especially in low-light conditions. Noise reduction settings range from five different levels and suit various operating conditions.


The benefits of optimized picture quality in changing light conditions are frequent challenges in round-the-clock security operations. The Sony FCB-ER8530 operates effectively in lighting levels low as 0.21lx (50%, ICR off, Slow Shutter 1/4s, when High sensitivity is off) and 0.06 lx (50%, ICR off, Slow Shutter 1/4s, when High sensitivity is on).

Visibility Enhancer and De-fog

This feature enhances Picture quality dynamically and adaptively on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range. The de-fog features in the Sony FCB-ER8530 allow more precise viewing in foggy or misty settings.

Auto ICR (Auto IR-cut Filter Removal)

The Sony FCB-ER8530 automatically switches from day to night mode in low-light conditions; removing the IR-cut filter boosts sensitivity for clear pictures in low-light conditions.

Wide range of features for versatile operation

The Versatile Sony FCB-ER8530 camera operation ensures a wide range of functions and adjustments, including White Balance modes; Picture effects (E-Flip, Black & White, Mirror Image, Gamma, Color Enhancement); Privacy Zone Masking; Picture freeze; Shutter Priority; Iris Priority (26 steps) Slow AE response, etc.



Image Sensor

1/2.5-type Exmor R CMOS Sensor (8.51M pixels)

Output Image Size

3840x2160 (QFHD), 1920x1080 (Full HD), 1280x720 (HD), 720x480/576 (SD)


Auto / Manual (0 dB to 48.0 dB), 0 to 16 steps

Shutter Speed

1 / 1 to 1 / 10000 s, 22 steps

Sync System


Back Light Comp


Exposure Control

0 dB to ± 10.5 dB, 15 steps


Standard / Straight gamma

Minimum Illumination

(50%, High Sensitivity Mode) 0.4 lx (Shutter Speed:1/30 s) 0.06 lx (Shutter Speed:1/4 s or 1/3 s)

Aperture Control

16 steps

White Balance

Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB

AE (Auto Exposure Mode)

Full Auto, Manual, Priority mode (shutter/iris), EV compensation, Spot AE, Slow AE


20x optical zoom, f = 4.4 mm to 88.4 mm, F2.0 to F3.8

Digital Zoom

12x (240x with optical zoom)

Zoom Mode

Standard Mode / Variable Mode / Direct Mode

Super Resolution Zoom

QFHD: 1.5x (max. 20x with optical zoom) Full HD/HD: 2.0x (max. 40x with optical zoom)

Focus Movement time

∞ to Near: 0.1 s

Focusing System

Auto Focus (Normal AF, Interval AF, Zoom Trigger AF [Sensitivity: normal, low]), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push Trigger

Horizontal Viewing Angle


Minimum Object Distance

100 mm1200mm

Video Output

Digital Y/Cb/Cr 4:2:2 8 bits component, R/G/B 4:4:4 8bits component, similar to CEA-861-F HDMI1.4b*2

Camera Control Interface

VISCA protocol (CMOS 5V Level)

Power Requirements

6.0 V to 12.0 V DC

Power Consumption

3.0 W (When the motor operates:4.0 W)

Operating Temperature

‐5 °C ~ +60 °C

Storage Temperature

‐20 °C ~ +60 °C

Dimensions (W x H x D)

65.1 × 70.0 × 134.8 mm (2 5/8 × 2 7/8 × 5 3/8 in.)


520 g (18.3 oz.)



Sony FCB-ER8530 Technical Manual
